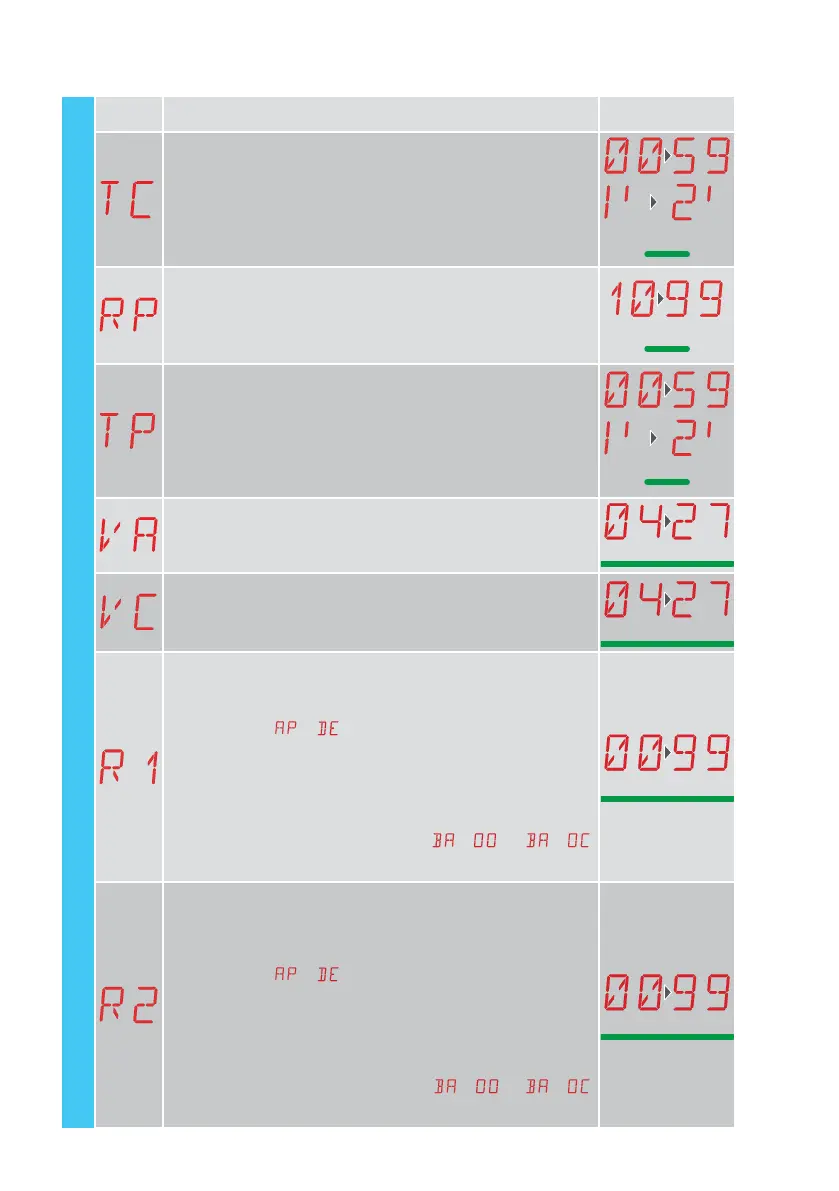

11.4 Second level menu - BA (Basic Adjustment)
Display Description
Selections
available
TC - Setting of automatic closing time [s]
It is set with different intervals of sensitivity.
• from 0” to 59” with intervals of 1 second
• from 1’ to 2’ with intervals of 10 seconds
1’00”
RP - Adjustment of partial opening measurement [%]
Adjusts the percentage of operation in relation to the total opening of
the automation. Partial opening is performed on gate wing 1.
10 - Minimum
99 - Maximum
50
TP - Setting of automatic closing time after partial opening [s]
It is set with different intervals of sensitivity.
• from 0” to 59” with intervals of 1 second
• from 1’ to 2’ with intervals of 10 seconds
30
VA - Opening speed [V]
See paragraph 11.2.1
VC - Closing speed [V]
See paragraph 11.2.1
R1 - Adjustment of thrust on obstacles and current - motor 1 [%]
The control panel is fitted with a safety device which, when it detects an obstacle:
- stops the opening movement and, if outside the limit area for detect-
ing obstacles, performs a disengagement operation whose duration
can be set with
→ ;
- reverses the movement during closure operations outside the limit
area for detecting obstacles;
- stops the movement during closure operations within the limit area
for detecting obstacles.
The limit area for detecting obstacles during opening and closing is de-
termined by the type of limit switch installed. If there is no limit switch, it
is determined on the basis of the selections
→ and → .
00 - Minimum thrust
99 - Maximum thrust
See paragraph 11.2.1
R2 - Adjustment of thrust on obstacles and current - motor 2 [%]
The control panel is fitted with a safety device which, when it detects
an obstacle:
- stops the opening movement and, if outside the limit area for detect-
ing obstacles, performs a disengagement operation whose duration
can be set with
→ ;
- reverses the movement during closure operations outside the limit
area for detecting obstacles;
- stops the movement during closure operations within the limit area
for detecting obstacles.
The limit area for detecting obstacles during opening and closing is de-
termined by the type of limit switch installed. If there is no limit switch, it
is determined on the basis of the selections
→ and → .
00 - Minimum thrust
99 - Maximum thrust
See paragraph 11.2.1
BA - Basic adjustment
To Next Page
