WIRING DIAGRAMS AND SCHEMATICS
45
HT2

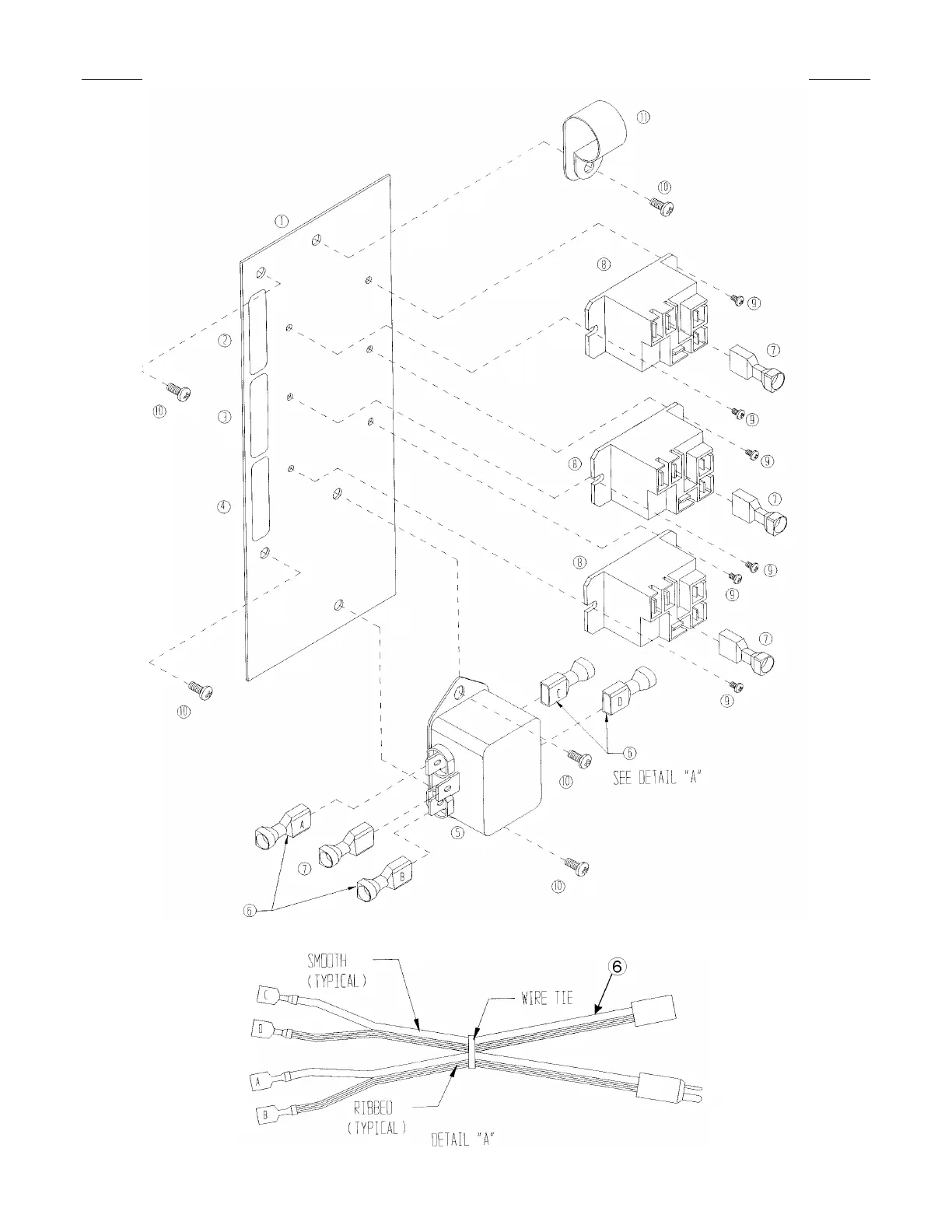

Schaffner Fitter / Relay Plate Assy.
1 – Relay Mounting Plate
2 – Light Relay Label
3 – Fuse Relay Label
4 – Compressor Relay Label
5 – 6 Amp Power Line Filter
6 – Filter / Stack Plug Harness
8 – Relay
9 – Screw, #8-32x1/4”
10 – Screw, #8-32x3/8”
11 – Clamp, 3/4"
