dji GOGGLES 3 User Manual

DJI Goggles 3 User Manual
20
©
2024 DJI All Rights Reserved.

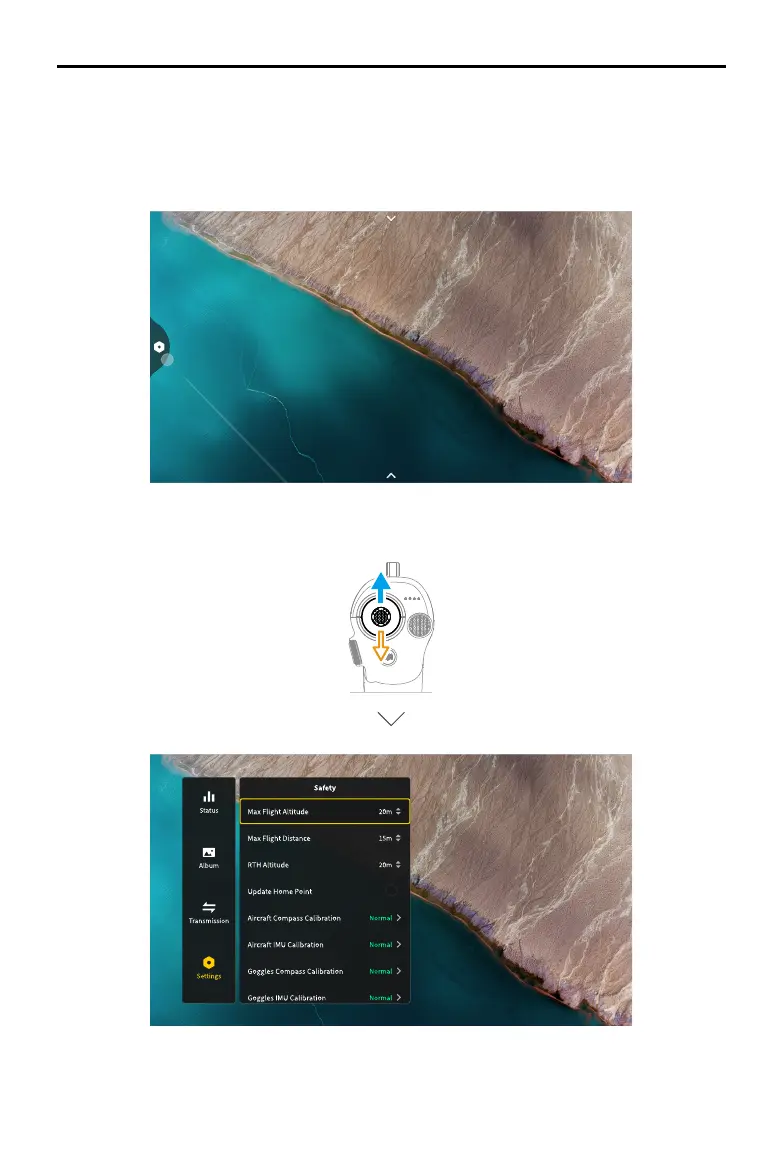

Use the joystick on the motion controller to scroll up or down in the menu.
Operating the Menu
• Using motion controller movements, move the cursor to the arrow on the left side of the
screen. Gently press the accelerator to the first stop position, then the cursor will become
small and the menu will be opened.
To exit or return to the previous menu, push the accelerator forward, or gently press the
accelerator when the cursor is on any empty spot on the screen.

dji GOGGLES 3 Specifications

General

Field of View	51°
Interpupillary Distance Range	56-72 mm
Video Recording Max Bitrate	50 Mbps
Resolution	1920x1080 per eye
Refresh Rate	100Hz
Screen Size (Single Screen)	0.49 inches
Operating Frequency	2.400-2.4835 GHz; 5.725-5.850 GHz
Wi-Fi Protocol	802.11 b/g/n/ac
Wi-Fi Operating Frequency	2.4GHz, 5.8GHz
Bluetooth Transmitter Power (EIRP)	<10dBm
Video Recording Format	MOV (H.264)
Supported Video and Audio Playback Formats	MP4, MOV (H.264/H.265)
Operating Temperature	-10°C to 40°C
Power Input	USB-C, 5V/2A
Supported SD Cards	microSD
Charging Time	2 hours
Compatibility	DJI Air 3
Connectivity	USB-C
Wi-Fi Transmitter Power (EIRP)	2.4GHz: <20dBm; 5.8GHz: <14dBm
Latency	With DJI Avata 2: 24 ms; With DJI Air 3: 24 ms; With DJI Mini 4 Pro: 24 ms
