DJI Goggles 3 User Manual

• Move the cursor to the arrow on the top of the screen, press the accelerator to enter the

shortcut menu, and congure settings such as Recording or Enhanced Display.

Controlling Video Playback

When previewing photos or videos stored on the microSD card of the goggles, the cursor can be

used to control playback, or complete other operations such as:

• Press the accelerator to pause or continue to play, push the accelerator forward to exit.

• Move the cursor left or right while pressing the accelerator down to adjust the progress bar.

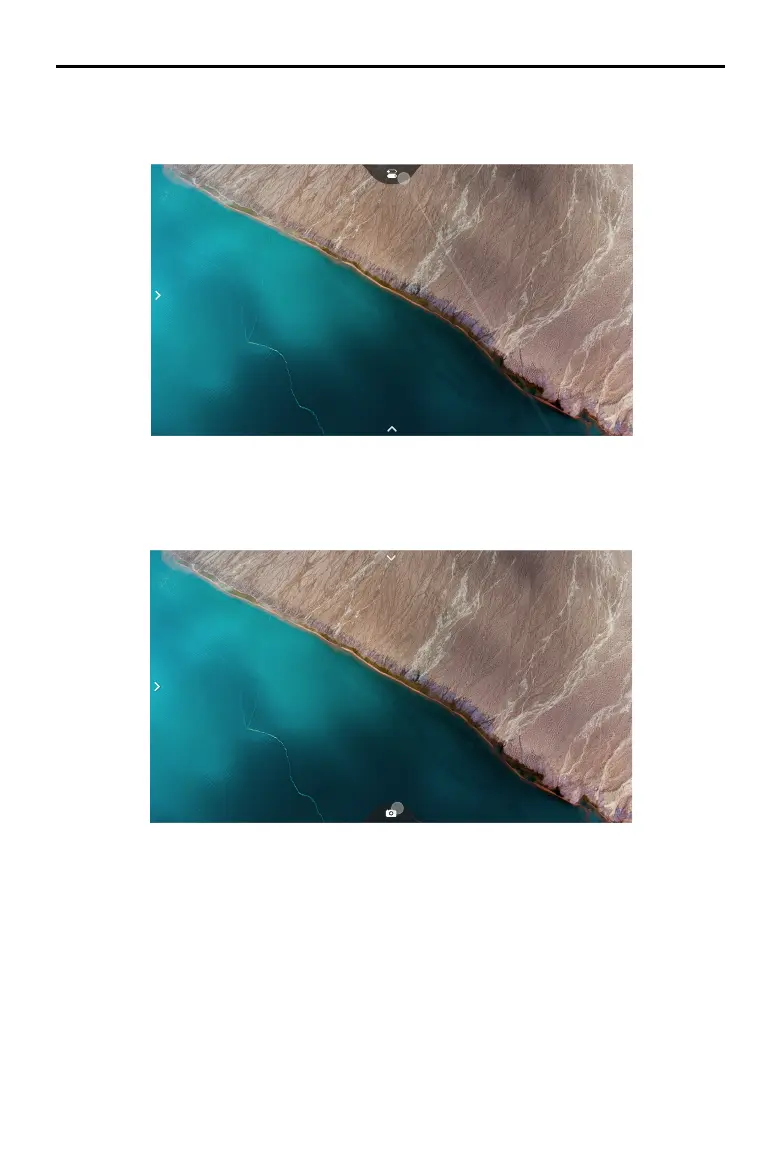

• Move the cursor to the arrow on the top of the screen, press down the accelerator to enter

playback settings and adjust the screen brightness or volume.

• Move the cursor to the arrow on the bottom of the screen, press the accelerator to enter

camera settings, and congure settings for the parameters of the aircraft camera.

Other manuals for dji GOGGLES 3

Need help?

Do you have a question about the dji GOGGLES 3 and is the answer not in the manual?

General

Field of View	51°
Interpupillary Distance Range	56-72 mm
Video Recording Max Bitrate	50 Mbps
Resolution	1920x1080 per eye
Refresh Rate	100Hz
Screen Size (Single Screen)	0.49 inches
Operating Frequency	2.400-2.4835 GHz; 5.725-5.850 GHz
Wi-Fi Protocol	802.11 b/g/n/ac
Wi-Fi Operating Frequency	2.4GHz, 5.8GHz
Bluetooth Transmitter Power (EIRP)	<10dBm
Video Recording Format	MOV (H.264)
Supported Video and Audio Playback Formats	MP4, MOV (H.264/H.265)
Operating Temperature	-10°C to 40°C
Power Input	USB-C, 5V/2A
Supported SD Cards	microSD
Charging Time	2 hours
Compatibility	DJI Air 3
Connectivity	USB-C
Wi-Fi Transmitter Power (EIRP)	2.4GHz: <20dBm; 5.8GHz: <14dBm
Latency	With DJI Avata 2: 24 ms; With DJI Air 3: 24 ms; With DJI Mini 4 Pro: 24 ms
