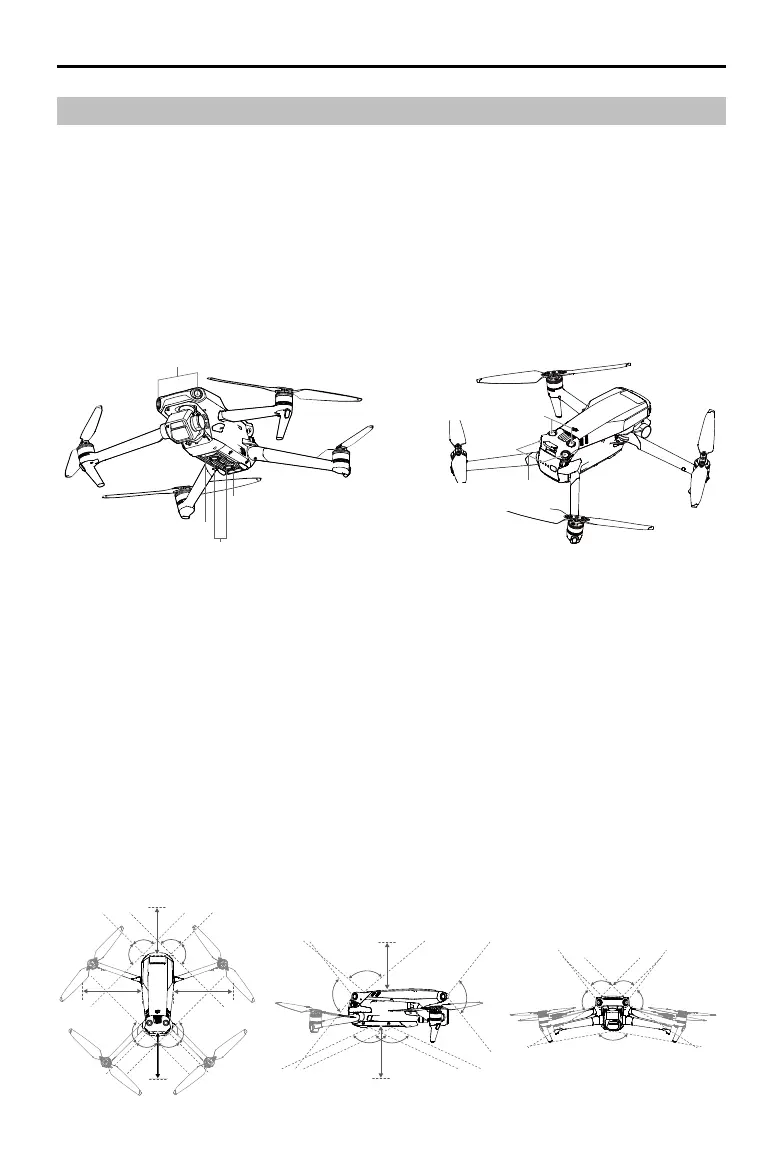

Vision Systems and Infrared Sensing System
DJI Mavic 3 is equipped with both an Infrared Sensing System and Forward, Backward, Lateral,
Upward, and Downward Vision Systems.
The Upward and Downward Vision Systems consist of two cameras each, and the Forward, Backward,
and Lateral Vision Systems consist of four cameras in total.
The Infrared Sensing System consists of two 3D infrared modules. The Downward Vision System and
Infrared Sensing System helps the aircraft maintain its current position, hover in place more precisely,
and to y indoors or in other environments where GNSS is unavailable.
In addition, the Auxiliary Bottom Light located on the underside of the aircraft improves visibility for the
Downward Vision System in weak light conditions.
Detection Range
Forward Vision System
Precision Measurement Range: 0.5-20 m; FOV: 90° (horizontal), 103° (vertical)
Backward Vision System
Precision Measurement Range: 0.5-16 m; FOV: 90° (horizontal), 103° (vertical)
Lateral Vision System
Precision Measurement Range: 0.5-25 m; FOV: 90° (horizontal), 85° (vertical)
Upward Vision System
Precision Measurement Range: 0.2-10 m; FOV: 100° (front and back), 90° (left and right)
Downward Vision System
Precision Measurement Range: 0.3-18 m; FOV: 130° (front and back), 160° (left and right). The
Downward Vision System works best when the aircraft is at an altitude of 0.5 to 30 m.
90°
90°
90°
90° 90°
90°
90° 90°
0.5-16 m
0.5-25 m
0.5-25 m
0.5-30 m
103°
130°130°
100°
103°
0.2-10 m
90°
85°
160°
85°
90°
Horizontal Omnidirectional Vision System
Infrared Sensing System
Auxiliary Bottom Light
Downward Vision System
Upward Vision System
Horizontal Omnidirectional
Vision System
