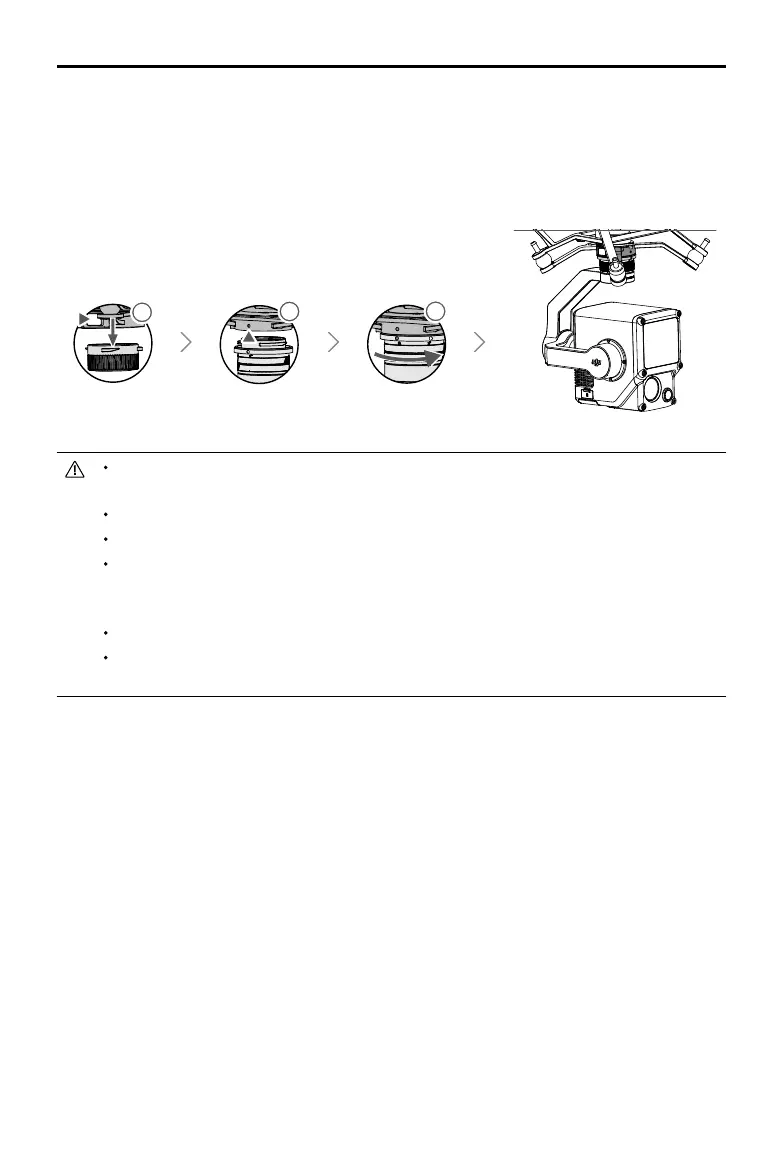

2. Press the button on the aircraft used for detaching the gimbal and camera. Rotate the gimbal cap
on the aircraft to remove.
3. Align the white dot on the gimbal with the red dot on the aircraft and insert the gimbal.
4. Rotate the gimbal lock to the locked position by aligning the red dots.
2
11
3
Make sure the gimbal connector on the aircraft is positioned correctly when mounting.
Otherwise, the L1 cannot be mounted.
Only remove the L1 after powering off the aircraft.
Remove the L1 by pressing the button on the aircraft to detach the gimbal and camera.
Make sure the microSD card slot cover is firmly in place to prevent dust or moisture
entering while using or during transportation. Failure to close the microSD card slot cover
may cause the gimbal motor to overload during usage.
To avoid burns, DO NOT directly touch the camera case when powering on.
Detach the gimbal from the aircraft during transportation or storage. Otherwise, the
service life of the gimbal dampers may be shortened or they may even be damaged.
