7. Recording Mode (Shutter/Video Record/Point Cloud Record)
Tap to switch between photo, video, and point cloud recording modes.
8. Shooting Button (Shutter/Video Record/Point Cloud Record)
Tap to take photos or start or stop recording video or point cloud data. The shutter and record
buttons can also be used to take a photo and record video.
9. Playback
Tap to enter and preview photos and videos as soon as they are captured.
10. Parameter Settings
Tap to set ISO, shutter, exposure values, and other parameters.
11. Camera/Point Cloud Toggle
Tap to switch the main screen to the camera view or point cloud view.
12. Single/Dual View Toggle
Tap to switch the main screen to single or dual view.

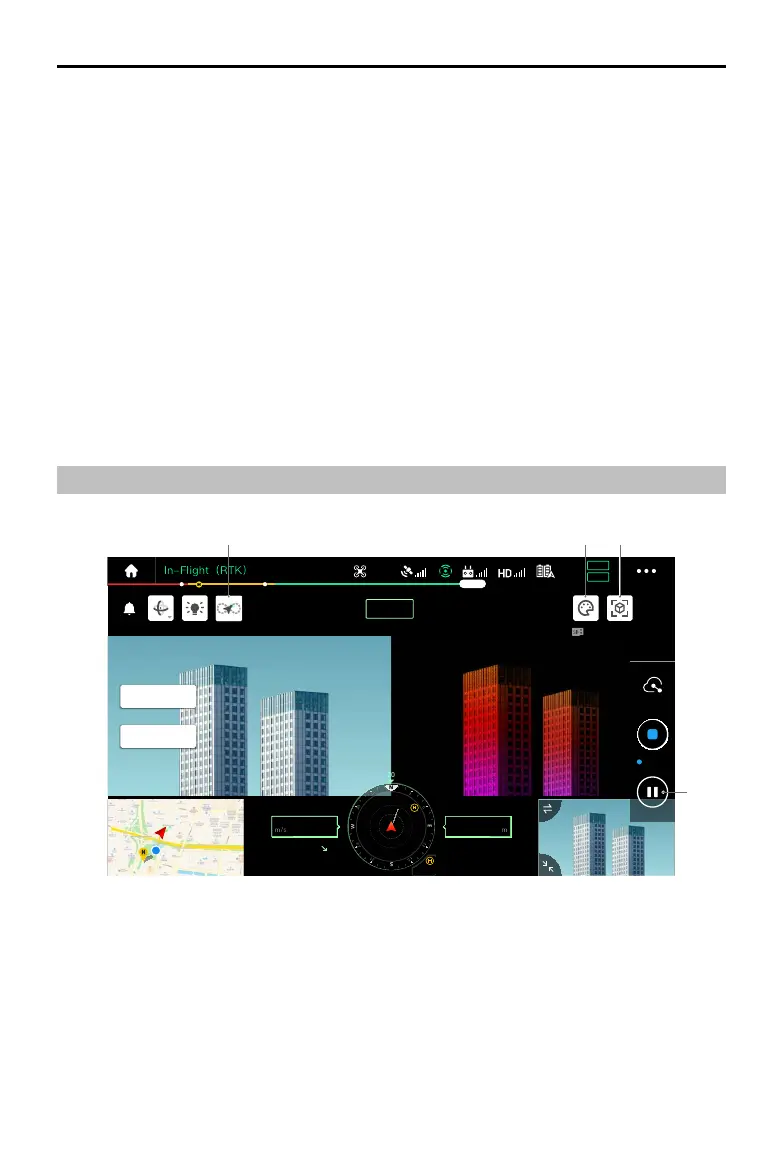

Point Cloud Recording View
13. Calibration Flight Button
Tap to perform a calibration ight to calibrate the LiDAR’s inertial navigation system and increase
accuracy of reconstruction. Tap STOP to stop a calibration flight. Calibration flight should be
performed at both the start and end of a flight. Make sure there are no obstacles within a 30m
radius of the start and end points.
14. Color Palette
Tap to select a rendering mode including reectivity, height, distance, and RGB.
