PROGRAM THE KEYPAD
To access the Keypad Installer Options menu, press Options in the Carousel menu. Tap the Installer Options wrench icon,
enter 3577 (INST), then press CMD.

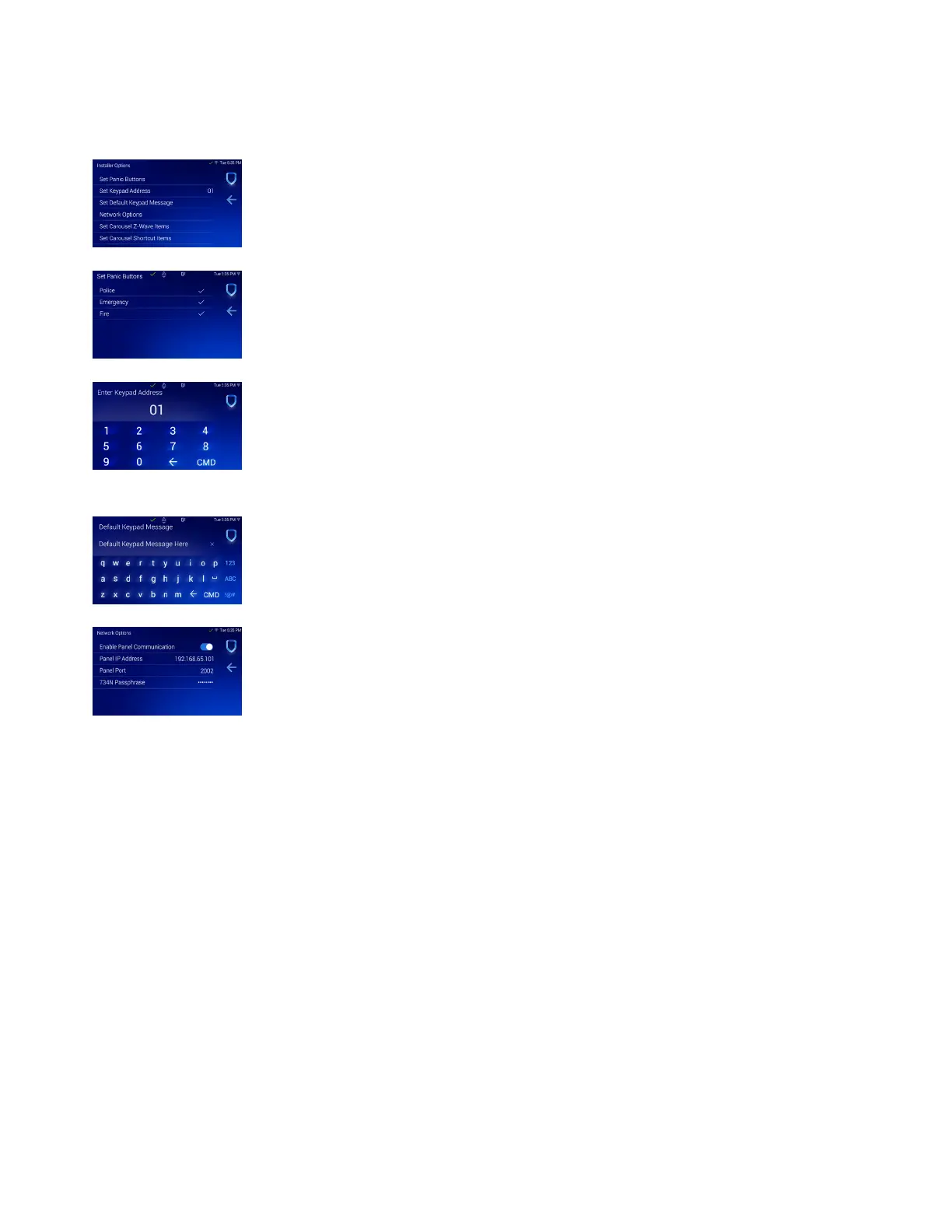

Installer Options
To program keypad options, press the Installer Options wrench icon and enter 3577
(INST). Press CMD. Select an option to configure its settings. Press the back arrow to
back out of the menu.
Set Panic Buttons
Use this option to enable or disable the panic keys. Select the panic buttons you would
like to have displayed on the keypad. Once the panic option is enabled, a check mark
displays next to the selected options.
Set Keypad Address
Set the current keypad address to be the same as the panel device number. The default
address is set at 01. To change the current address, press any select area to clear the
keypad display, enter the new address, and press CMD. It’s not necessary to enter a
leading zero for addresses 1 to 9.
Set Default Keypad Message
Enter a custom message of up to sixteen characters to appear at the top of the keypad
display. Press any select area, enter a new message, and press CMD. If a message has
been entered, it will display in the field until changed.
Network Options (Wi-Fi Connection Only)
To connect the keypad to the panel via Wi-Fi network, press the Enable Panel
Communication toggle. Follow the steps below to program the Wi-Fi communication
based on your panel model.
Note: XT Series Version 241 or XR Series Version 231 is required to enable Network
Options.
XR Network Options
Enter the Panel IP Address. Program the Panel Port to match the 734N Listen Port that
is programmed in Network Options on the panel. Then, program the 734N Passphrase
to match the 734N Passphrase that is programmed in Network Options on the panel.
XT/XTL Network Options
Enter the Panel IP Address. Then, leave the Panel Port and the 734N Passphrase at their
default settings if you want to connect one Wi-Fi keypad. If you want to connect up to
three Wi-Fi keypads, set the Programming Port to 0 in Network Options on the panel. If
the Programming Port is not set to 0, then only one Wi-Fi keypad can be connected.
Refer to the table below for more information.
