MACHINE FEATURES (Continued....)

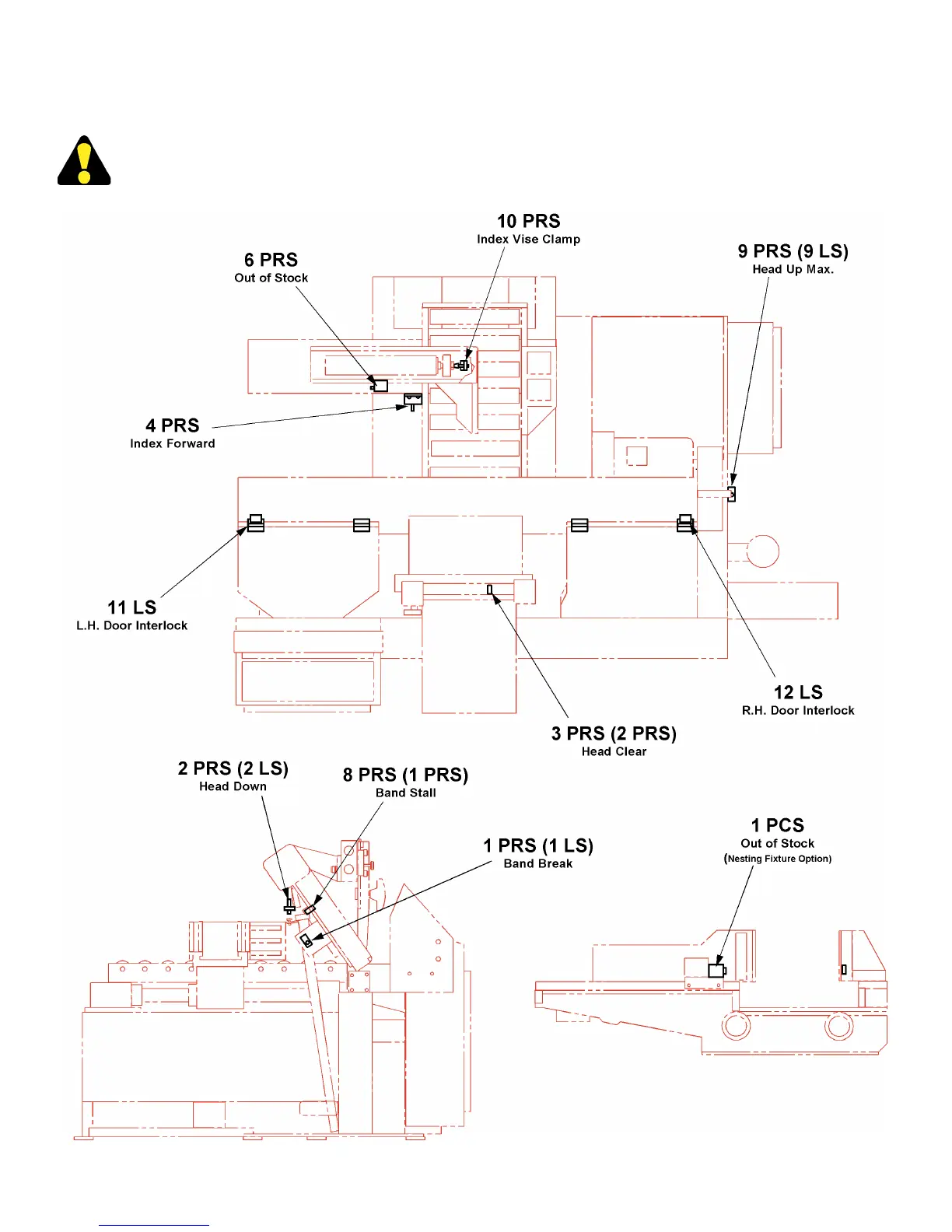

PROXIMITY SWITCH/LIMIT SWITCH LOCATIONS
Before machine number 218, limit switches (in parenthesis)
were used instead of proximity switches.
FRONT VIEW
SIDE VIEW
