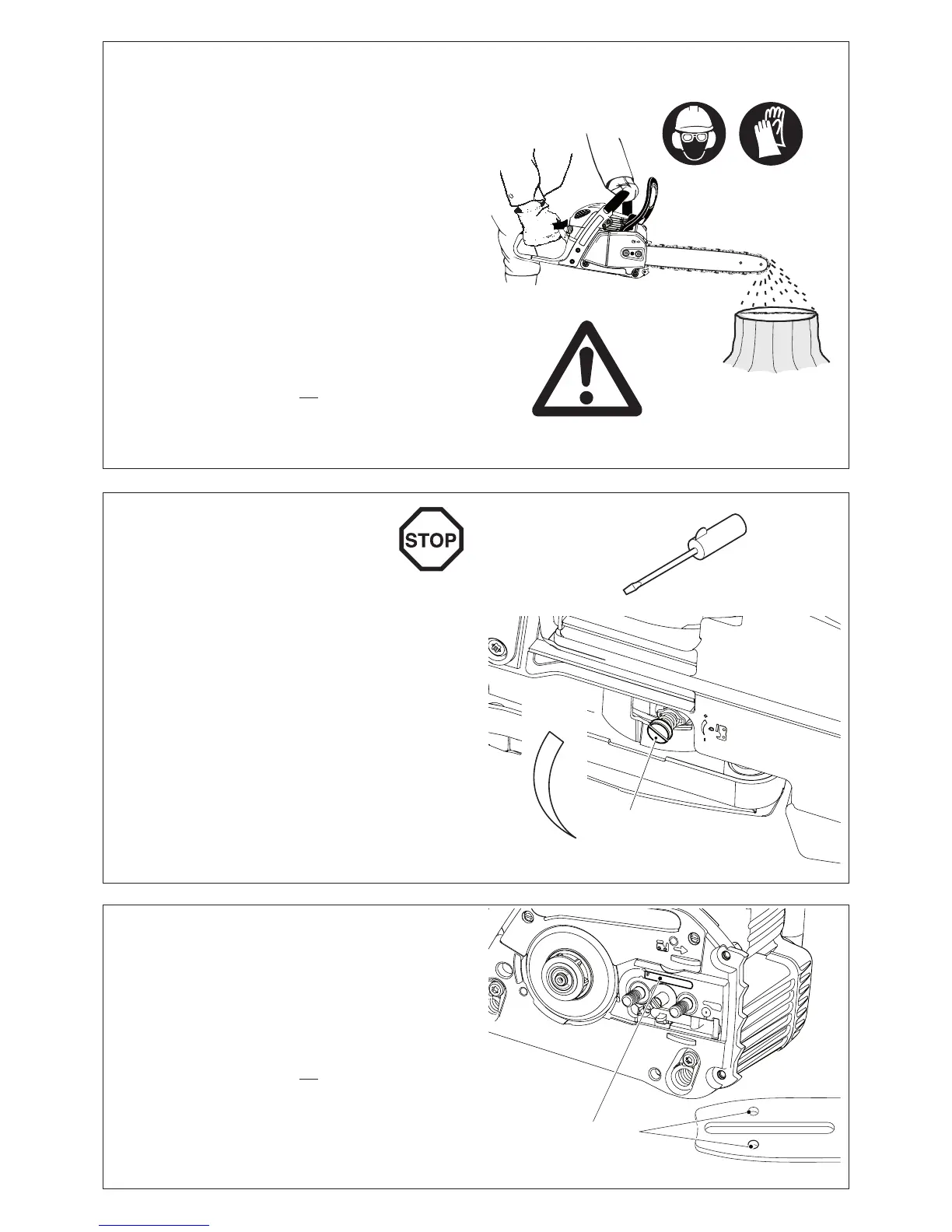

Checking the chain lubrication
ca tion. Otherwise the service life of the chain and guide bar
will be reduced. Before starting work check the oil level in the
tank and the oil feed.
Check the oil feed rate as described below:
Start the chain saw (see “Starting the engine”).
Hold the running chain saw approx. 6” (15 cm) above a trunk
or the ground (use an appropriate base).
to the direction the wind is blowing and avoid unnecessary
exposure to the oil spray!
Note:
chain oil to drip from the oil feed system, the guide bar and
the chain for a time. This does not constitute a defect!
Place the saw on a suitable surface.
To ensure troublefree operation of the oil pump the oil guide
groove at the crank case (2) and the oil inlet bore in the guide
bar (3) must be cleaned regularly.
Note:
chain oil to drip from the oil feed system, the guide bar and
the chain for a time. This does not constitute a defect!
Place the saw on a suitable surface.
Adjusting the chain lubrication
You can adjust the oil pump feed rate with the adjusting
screw (1). The adjusting screw is on the bottom side of the
housing.
The oil pump comes factory-set to a minimum feed rate. You
can set the chain oil feed rate to minimum and maximum
feed rate.
To adjust the supply rate, use a small screwdriver to turn the
adjusting screw:
oil feed rate.
Pick one of the two settings depending on the length of the
guide bar.
While working make sure there is enough chain oil in the tank.
If necessary, add oil.
