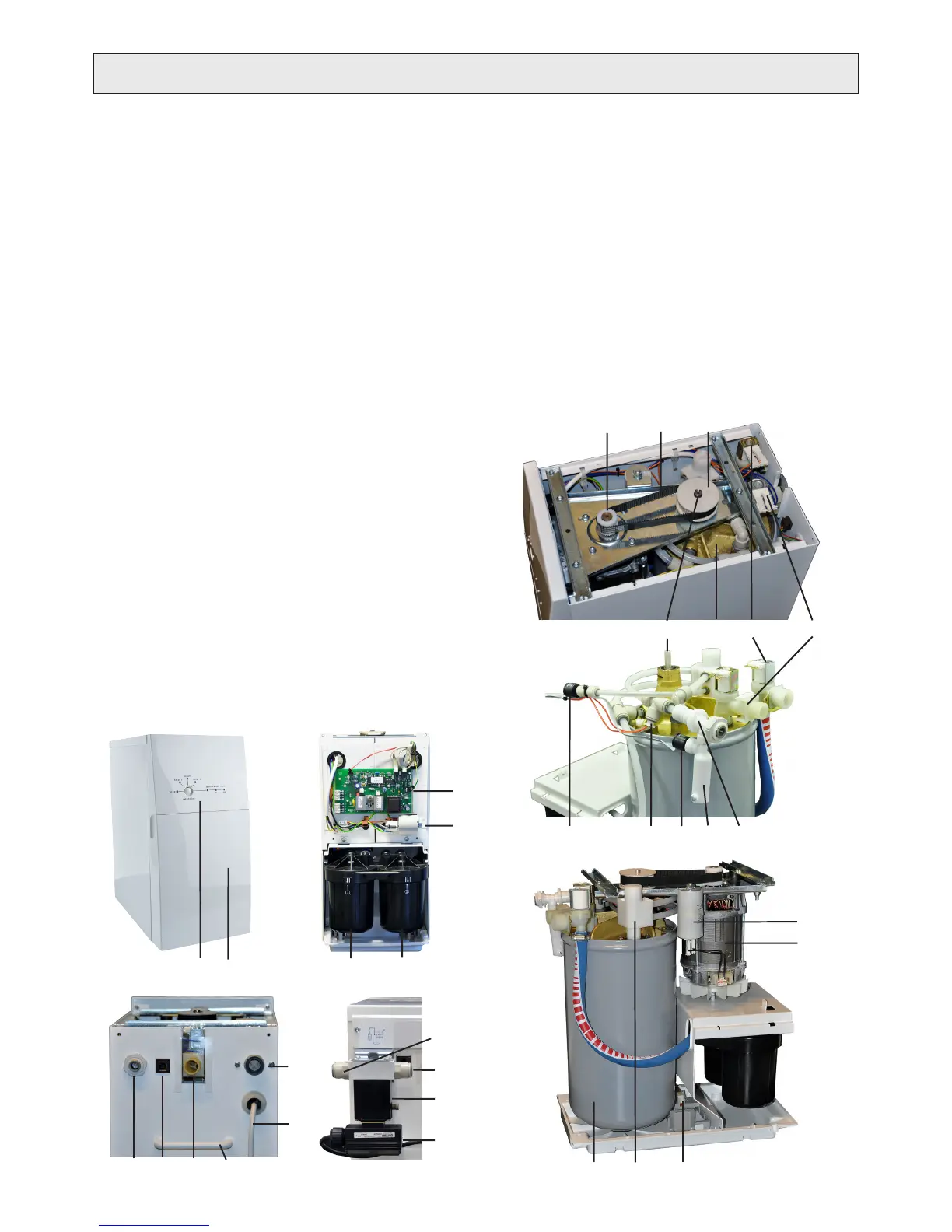

LOCATE COMPONENTS

Control panel, 1. see “INDICATOR LIGHTS AND
BUTTON”
Front cover2.

Filter container I3.
Filter container II4.
Printed Circuit Board (PCB)5.
Filter AIF (RFI, EMI)6.

Outlet, puried water7.
Reject water outlet8.
Inlet water connection9.
Contact for indicator lights10.
Power cord11.
Handle12.

CV-models only)
Hose for rinse 13.
Outlet, puried water14.
3/2-way valve15.
Timer control16.

Driving wheel, motor17.
Driving belt18.
Driving wheel, pump19.
PRODUCT DESCRIPTION
Shaft, common, high pressure- & loop pump20.
Pump gable/housing21.
Inlet valve22.
Flush valve23.
Inlet pressure sensor24.
Conductivity sensor25.
Outlet pressure sensor26.
Pressure accumulator valve27.
Outlet, puried water, with check valve28.
Membrane pressure vessel29.
Pressure regulating valve30.
Overow protection31.
Capacitor, motor32.
Motor33.
a
B
1 2
3
4
C
7 8
9
10
11
12
5
6
D
14
13
15
16
32
29 31
22
21
23
24 25 27
26
28
20
E
17
19
18
33
30
