VERY IMPORTANT
Check in the startup that the extractor turns in the correct direction.
To do so, open the filter door and check it turns in the clockwise direction.
If it is not correct, reverse the two phases in the machine's power connection.
CAUTION
For the Electric Heating model, IT IS NOT POSSIBLE to change from 400 V to 230 V without changing the
contactor, the mains switch and the cable cross-section.
To do so, please refer to the Technical Assistance Service.

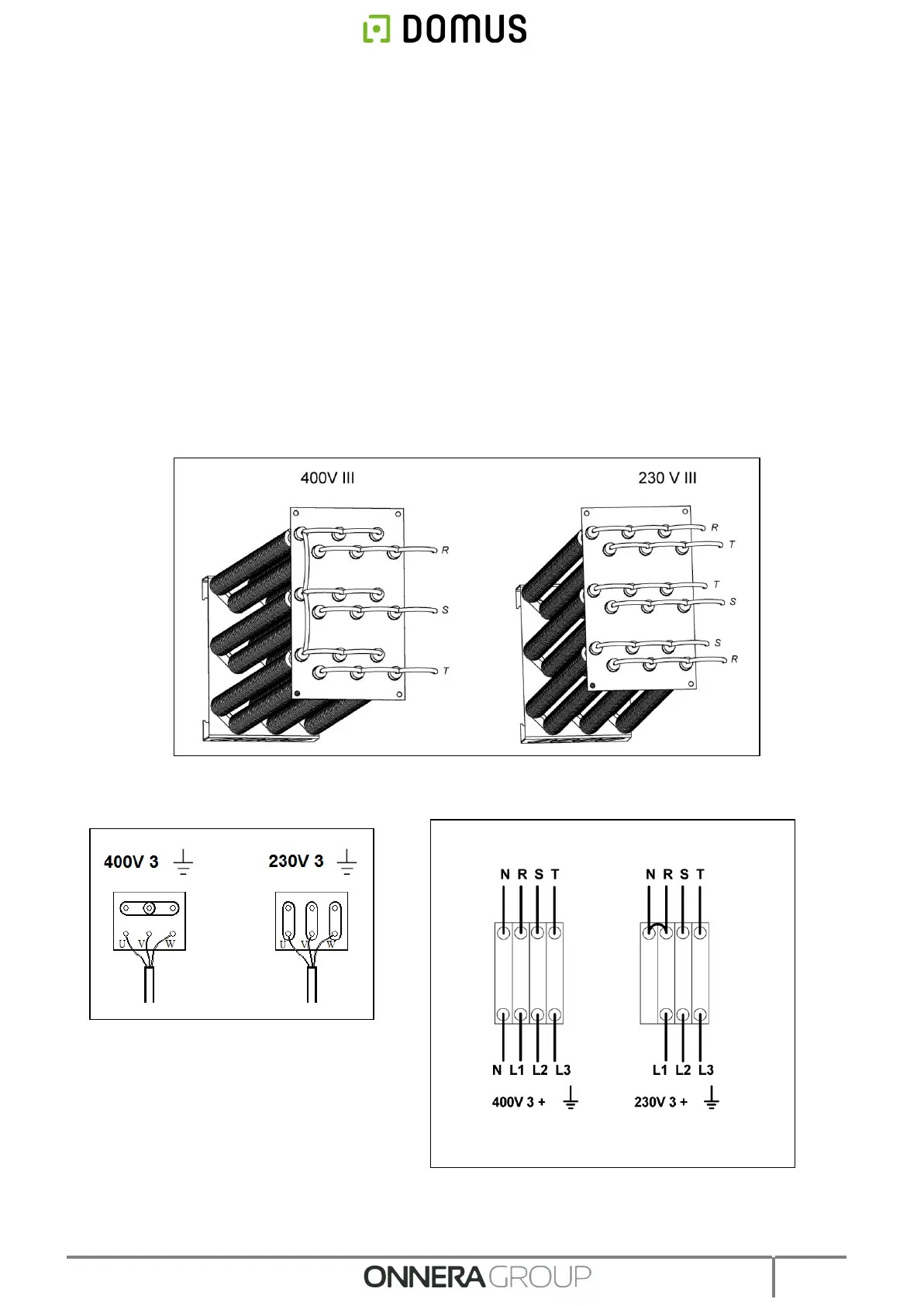

Resistor group (Only electrical heating to go from 230V to 400V).
The electric battery of the DTT/DTM-45 has 3 resistor modules and the electric battery of the DTT/DTM-60 and
DTT/DTM-80 have 4 resistor modules.
The figures are intended to provide a diagram of the connections and are not a true representation of the
same.
Fan motor terminal box. General switch, electrical connection.
