THIS APPLIANCE MUST BE INSTALLED ON A CONCRETE OR SIMILAR FLOOR SUITABLE FOR THE APPLIANCE WEIGHT.
3. INSTALLATION
Install the machine according to current regulations.
3.1. Tools
Tools required for the installation.
1. Adjustable wrench and fixed wrench No 12/13
2. Flat-head screwdriver
3. Phillips head screwdriver
4. Level
5. Protective goggles
6. Protective gloves
7. Allen key no. 5
3.2. Location
3.2.1. Transport and storage.
The machine must be transported always in its original packaging to guarantee its integrity. Transport the machine to
the definitive workplace.
Remove the packaging and make sure that it has not been damaged during transport. In no event install or keep the
dryer outdoors. If the machine has to be stored for a long time, cover it with its original packaging to protect it from
external agents and keep it in the optimum environmental conditions. It should also be disconnected from the electricity
network.

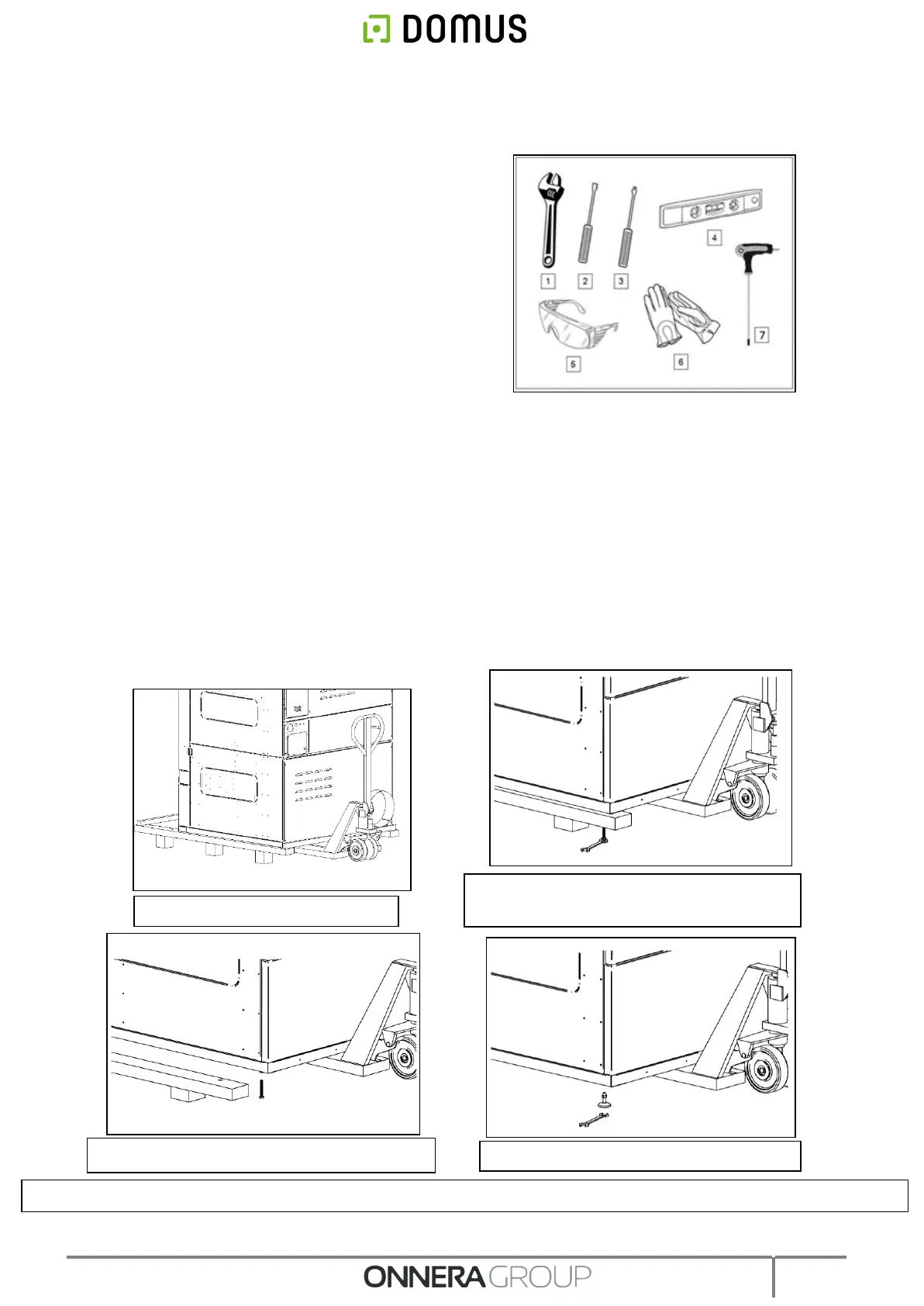

Once located in its definitive workplace, remove the two wooden runners to which the dryer is attached at the lower
part of the base with 4 M10x70 bolts located at 12 cm from the ends. See procedure in the following diagrams. After
removing the runners, lower the machine and level it using the levelling feet (see next section “Levelling”). Keep the
runners with the original packaging for possible future movements. Do not push the machine or clear obstacles without
the wooden runners, the machine may be damaged resulting in malfunctioning.
The drum does not have anchorages for transport.
2. LOOSEN WITH NO 17 FLAT WRENCH
AND REMOVE THE 4 M10X70 BOLTS
3. REMOVE THE TWO WOODEN RUNNERS
4. MOUNT THE FOUR LEVELLING FEET
