3.2.2. Location.
Install the machine in a big room to obtain efficient work conditions and to guarantee the sufficient
ease of movement of the workers using the machine.

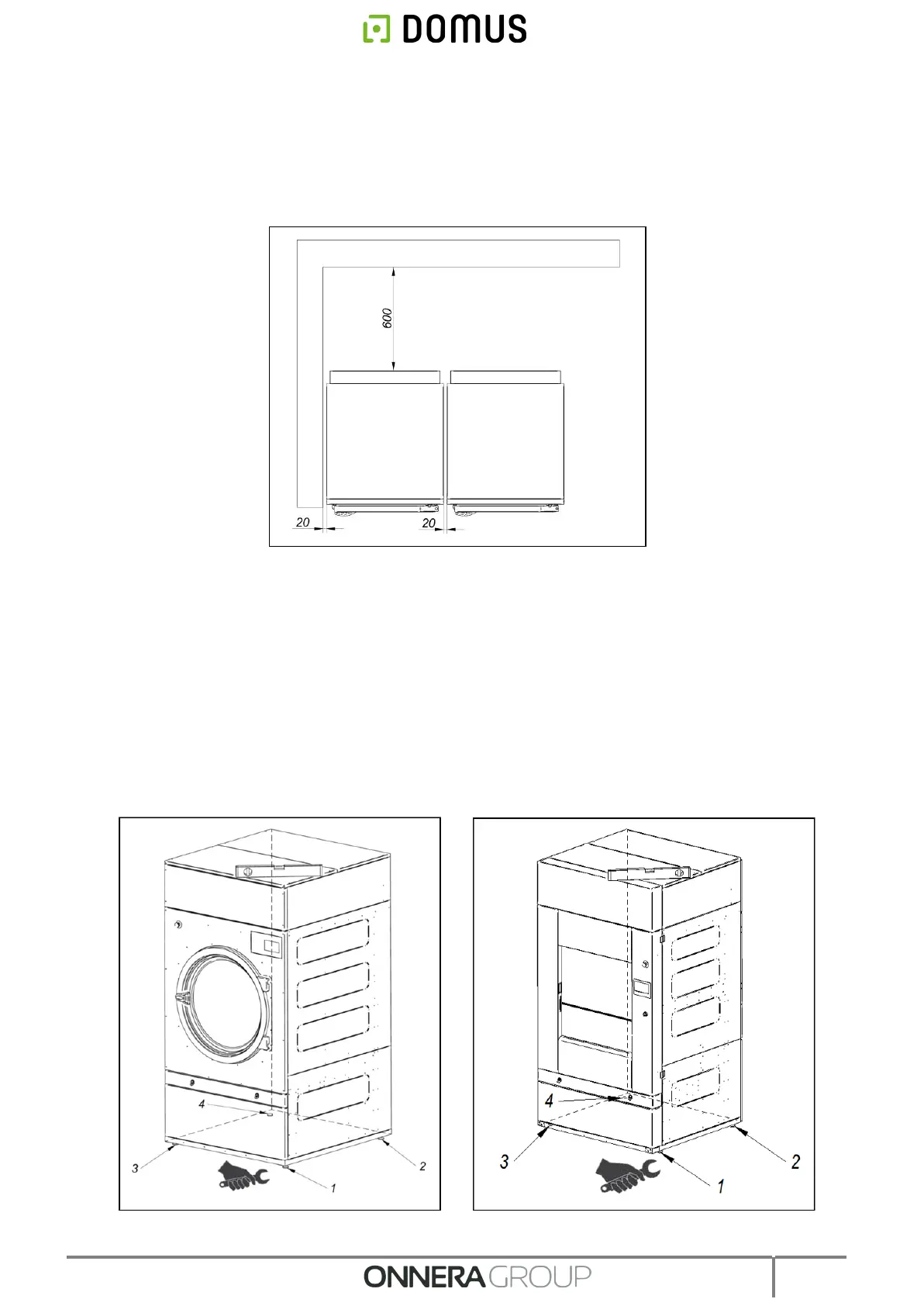

The definitive position of the machine must allow its correct use. The distances indicated on the
following drawing must be observed to allow correct maintenance by the authorised staff.
Minimum operating space. 1.50 m at the front, and rest according to diagram.
3.2.3. Levelling
- Do not anchor the machine, simply put it on a flat and levelled surface. Position the 4 adjustable feet
supplied and found inside the machine. A good levelled base is important for correct operation.
Procedure:
- The machine must be supported on all four legs so that it stands firmly on the ground and does not rock.
- Adjust the 4 levelling feet to ensure the stability and horizontality of the machine, checking it with a spirit
level. After levelling, fasten the nut using a spanner and a flat key nº 12.
- The maximum adjustment height at the height of the levelling feet is 25 mm.
