Side-Mount Power Pack for Units Built After July
2003
4. Install the motor and blower assembly to the fan
housing using the original hardware and caulk
sealant.
5. Connect power supply to the motor. Turn the
fan motor ON then OFF to check motor
rotation by referencing the rotation arrow on
the blower.
Note: To change rotation on three phase units,
turn power supply OFF and switch any
two leads on the output side of the fan
motor starter.
CAUTION!
 Side mounting a power pack requires
side power adapter to support the
weight of the power pack.
 Poorly installed power packs may not
stay properly attached to the collector
resulting in personal injury and damage
to equipment or property.
1. Disconnect power supply.
2. Apply 1/4-in diameter rope-type sealant to the
outside surface of the power adapter between the
fan mount bolt holes and the round fan inlet
hole.
3. Install the fan housing to the power adapter
using 3/8 x 1 1/4-in bolts, flat washers, and hex
nuts.
Note: Install bolts with the bolt head in the fan
housing and the threaded end in the
power adapter.

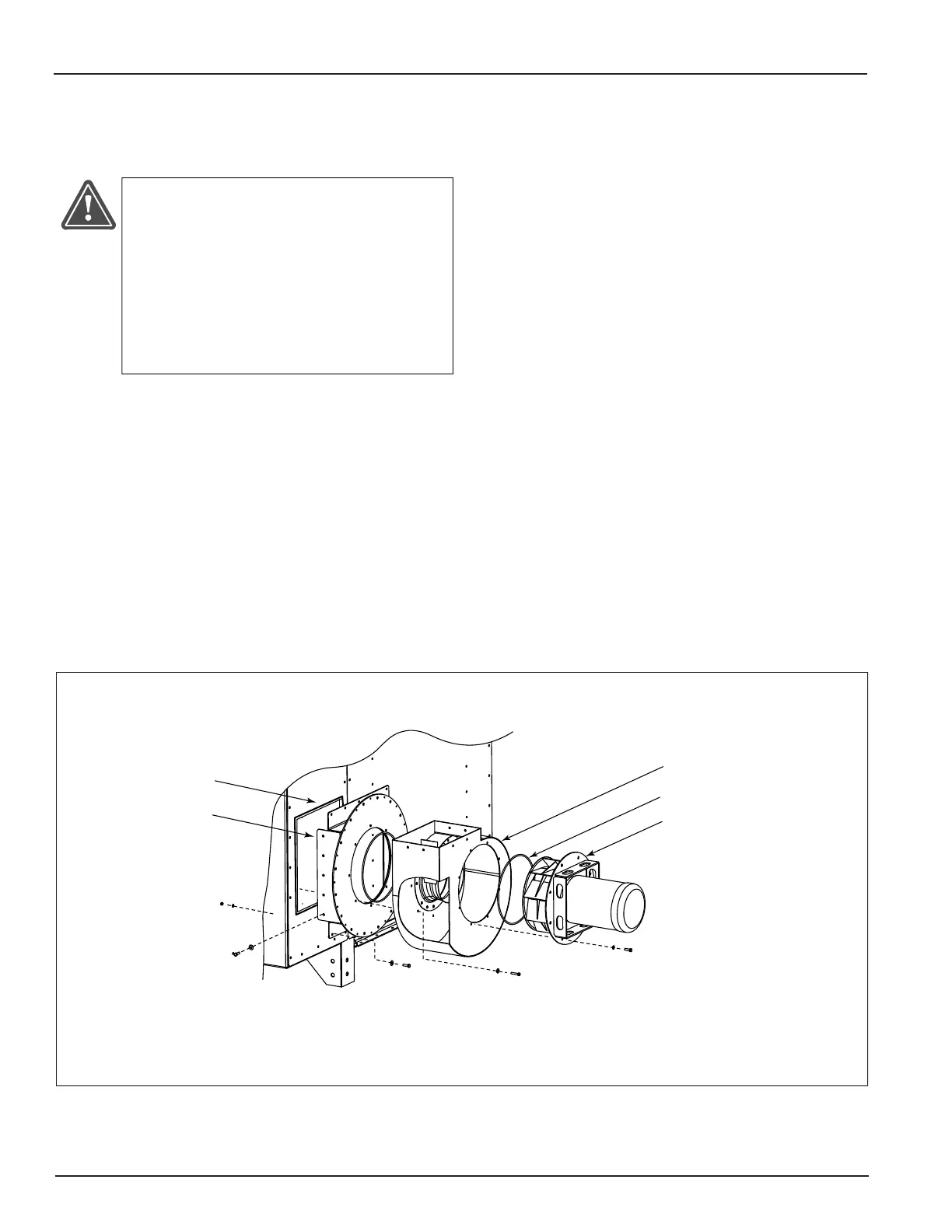

Side-Mount Power Pack
FPS[IVLSYWMRK
WIEPERX
QSXSVQSYRX
WMHIQSYRX
FVEGOIX
YWYEPP]JEGXSV]MRWXEPPIH
WIEPERX
