Tire pressure monitoring system
4.3-14

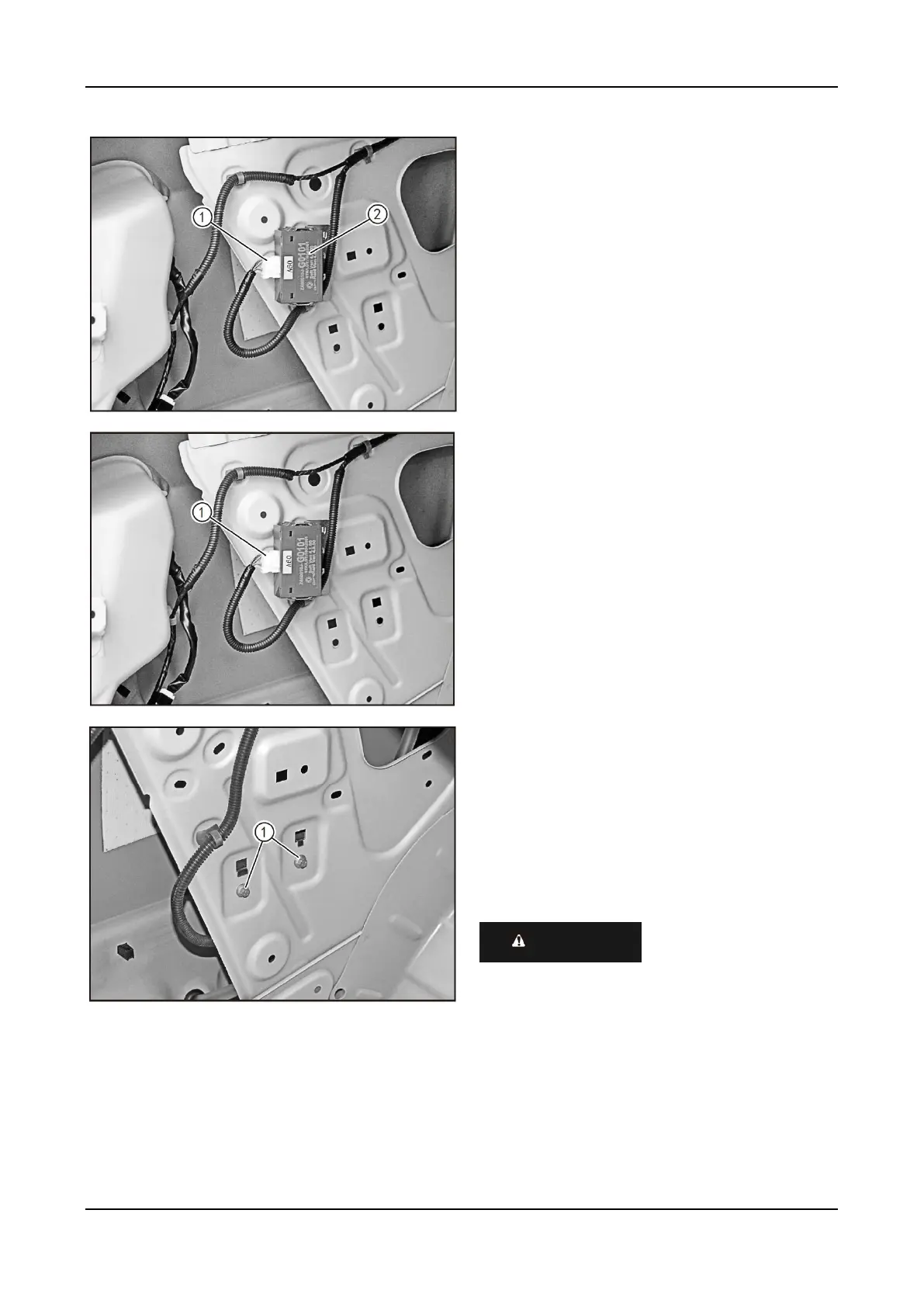

• Press and hold the locking clip of the
connector, and disconnect the connector (1)
of the tire pressure monitoring control unit
wire harness .
• Remove the tire pressure monitoring control
unit (2).
4- Refitting
• Connect the tire pressure monitoring control
unit connector (1) in place.
• Refit the TPMS in place and preinstall its
fixing bolts (1).
• Tighten the fixing bolts (1) of the tire
pressure monitoring control unit with a
10mm socket wrench.
• Refit the trunk left protective plate. (Refer to
the section "Removal and Refitting of Trunk
Interiors" in the chapter "Interiors and
Exteriors")
• After the installation is completed, clear the
DTC and perform the TPMS matching
learning.
