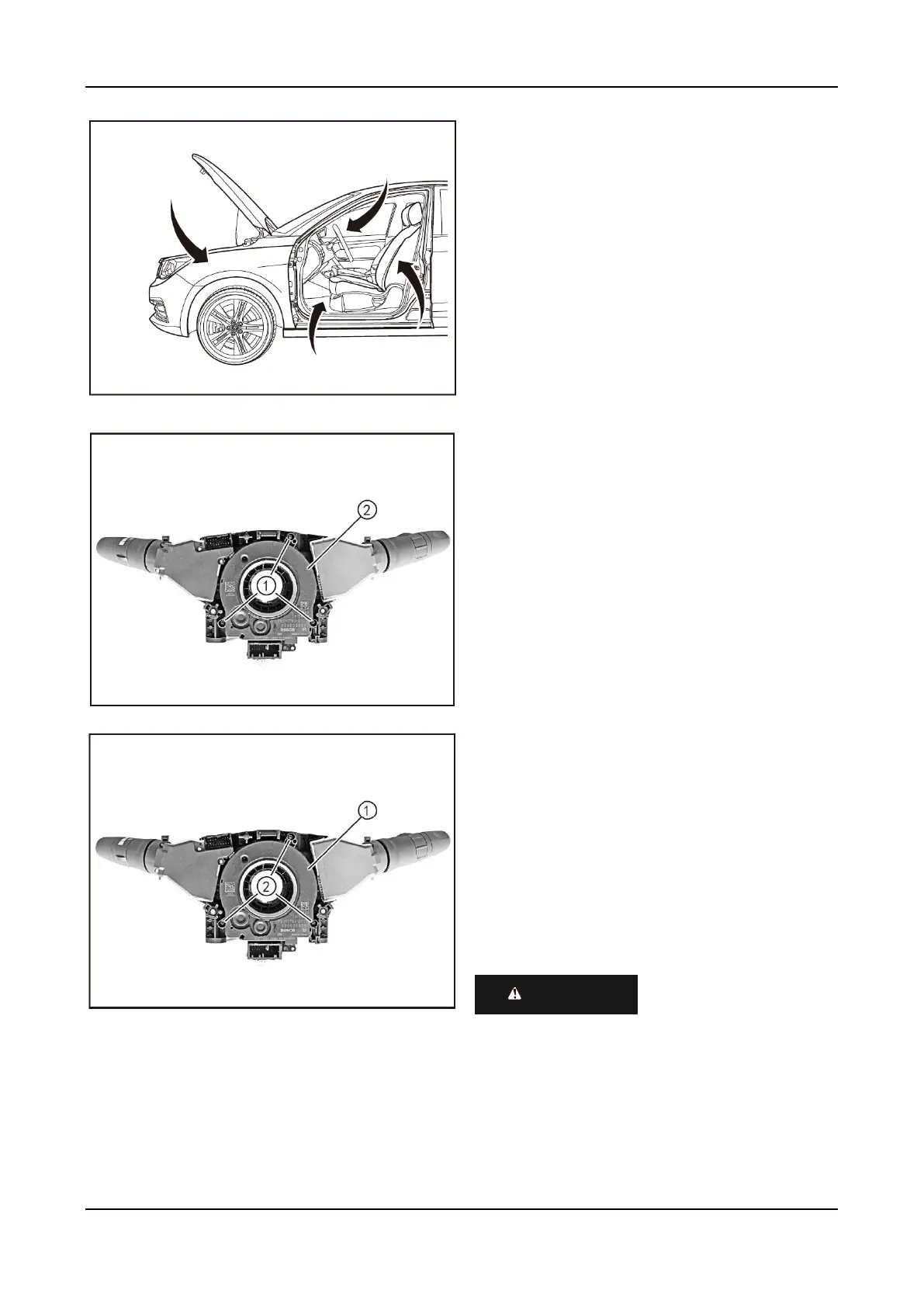

ESC hydraulic control system
4.3-20
ESC hydraulic co ntrol system
Removal and refitting of steering wheel
angle sensor
1- Protection
Place protective pads at following positions:
Front fender;
Front bumper;
Driver’s seat;
Carpet (on driver's side);
Steering wheel;
Parking brake lever;
Shift lever.
2 - Removal
Turn off the ignition switch, and disconnect
the battery negative cable.
Remove the rotary switch and the
combination switch assembly. (Refer to
"Removal and Refitting of Rotary Switch and
Combination Switch Assembly” in “Steering
System” section.)
Remove 3 fixing screws (1) of the steering
wheel angle sensor by using a T20
screwdriver bit.
Separate and remove the steering wheel
angle sensor (2).
3- Refitting
Refit the steering wheel angle sensor (1) in
place and pre-tighten its fixing screws (2).
Tighten the fixing screws (2) of the steering
wheel angle sensor by using a T20
screwdriver bit.
Refit the rotary switch and the combination
switch assembly. (Refer to "Removal and
Refitting of Rotary Switch and Combination
Switch Assembly” in “Steering System”
section.)
CAUTION
After replacing the steering system
components and the multifunctional steering
wheel, it is necessary to first adjust the
centering of the steering wheel on the
four-wheel alignment bench. Calibrate the
steering wheel angle sensor.
