ESC hydraulic control system
4.3-23
Removal and refitting of ESC OFF switch

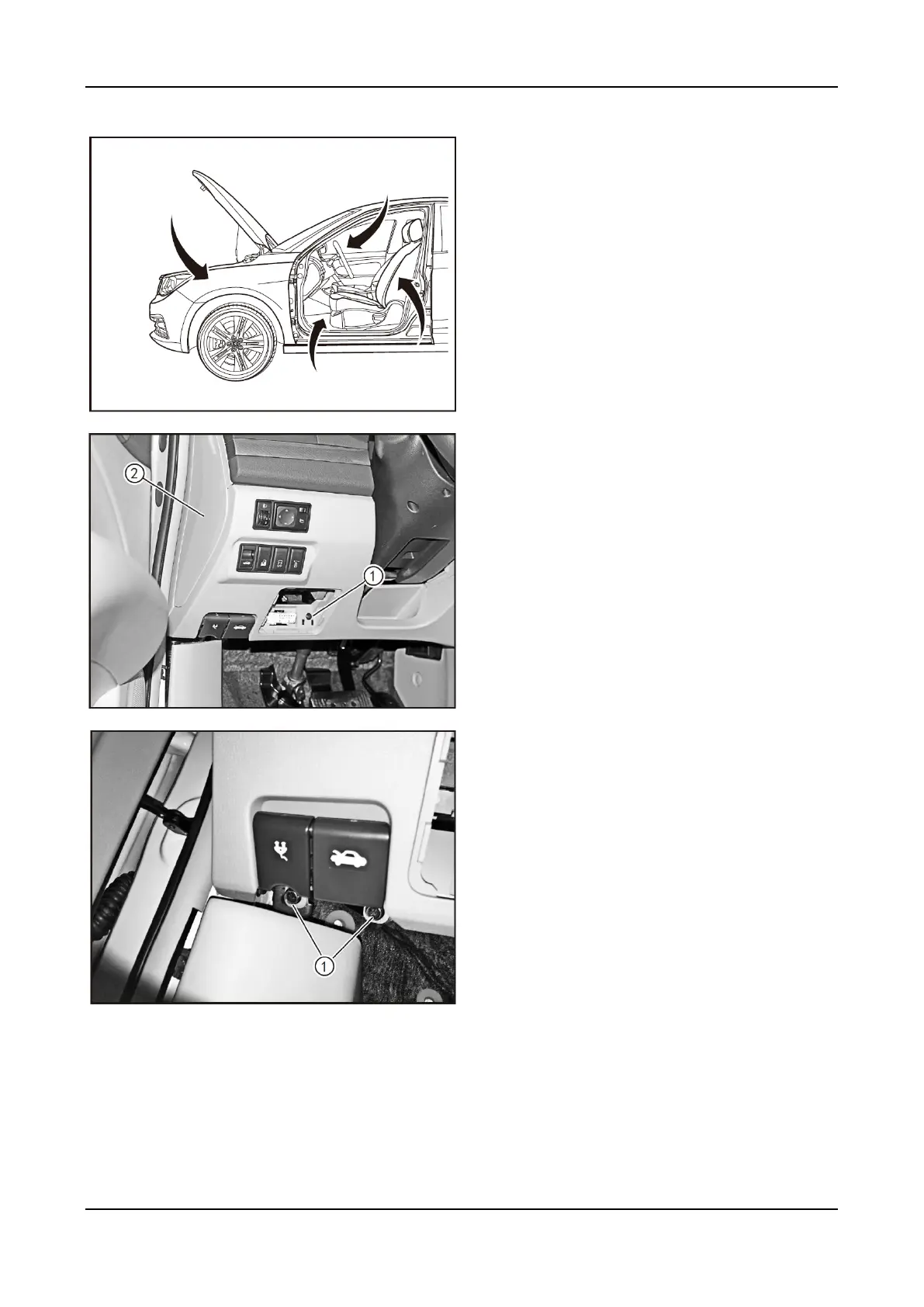

Place protective pads at following positions:
• Front fender;
• Front bumper;
• Driver’s seat;
• Carpet (on driver's side);
• Steering wheel;
• Parking brake lever;
• Shift lever.
2 - Removal
• Turn off the ignition switch or the start-stop
button, and disconnect the battery negative
cable.
• Remove the fuse box cover in the passenger
compartment and remove the fixing screws
(1) of instrument panel left lower protective
plate with a Phillips screwdriver.
• Remove the instrument panel left protective
plate (2).
• Remove the fixing bolts (1) of the charging
hole cover handle and the drive motor
compartment handle with a Phillips
screwdriver.
