DongFeng E70 User Manual

Air Conditioner
4.3-40
Air Conditioner

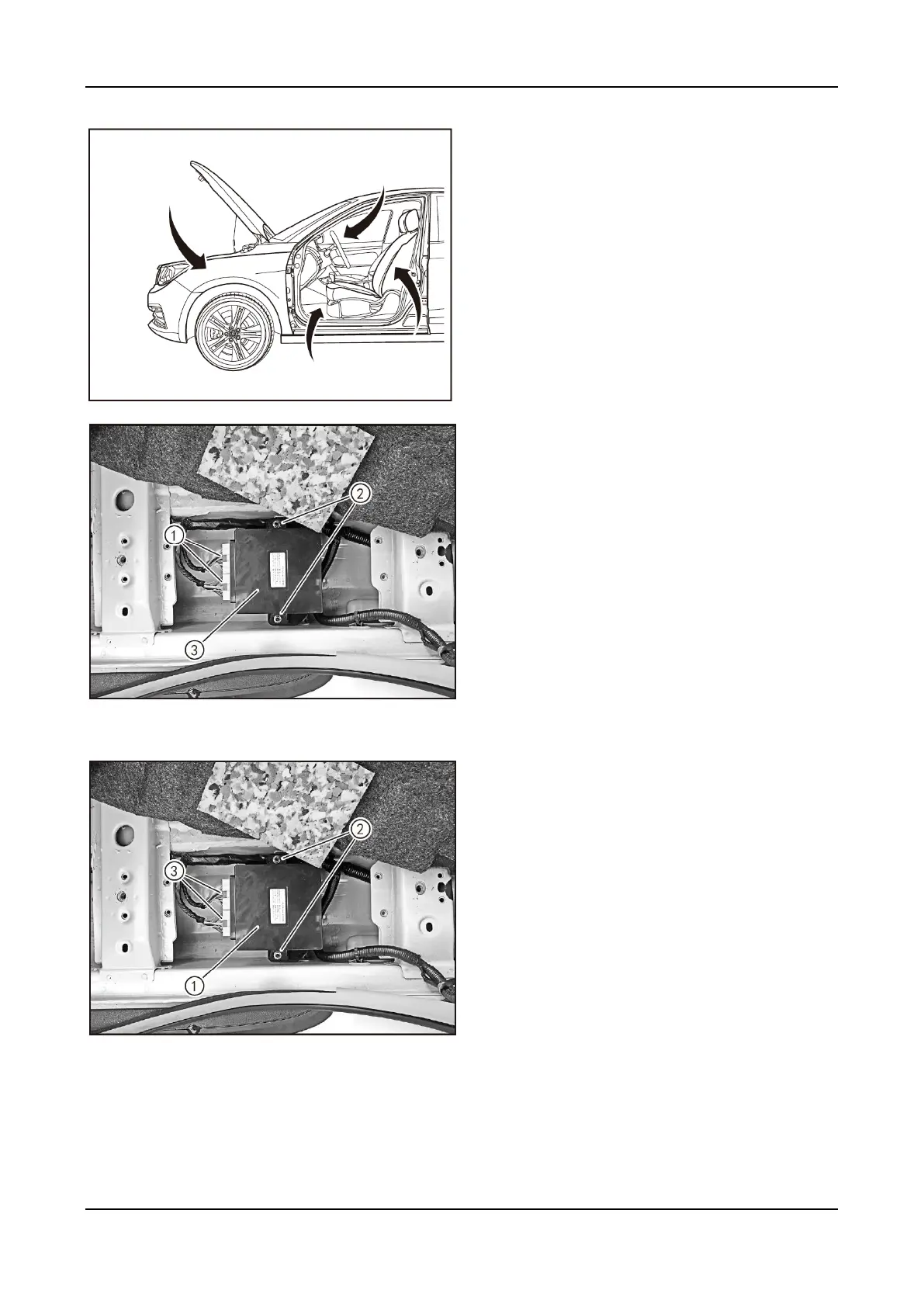

Removal and refitting of A/C control unit
1- Protection
Place protective pads at following positions:
• Front fender;
• Front bumper;
• Driver’s seat;
• Carpet (on driver's side);
• Steering wheel;
• Parking brake lever;
• Shift lever.
2 - Removal
• Turn off the start switch and disconnect the
battery negative cable.
• Remove the driver’s seat. (Refer to
“Removal and Refitting of Driver’s Seat” in
10.6 Seats.)
• Remove the left front door inner protective
plate and the left B-pillar pillar lower
protective plate. (Refer to "Removal and
Refitting of Body Side Wall Trim Panel" in
10.4 "Exteriors and Interiors”.)
• Pry open the body left front carpet, press
the locking clip of the connector, and
disconnect the A/C control unit connector
(1).
• Remove the 2 fixing nuts (2) of the A/C
control unit with an 10mm socket wrench to
remove theA/C control unit (3).
3- Refitting
• Align the A/C control unit (1) to refit it in
place.
• Tighten the 2 fixing nuts (2) of A/C control
unit with a 10mm socket wrench.
• Insert the A/C control unit connector (3).
• Refit the left front door inner protective plate
and the left B-pillar lower protective plate.
(Refer to "Removal and Refitting of Body
Side Wall Trim Panel" in 10.4 "Exteriors and
Interiors”.)
• Refit the driver’s seat. (Refer to “Removal
and Refitting of Driver’s Seat” in 10.6
Seats.)
• Connect the battery negative cable, turn on
the battery negative cable, and inspect to
ensure that the A/C system works normally.
