Tire pressure monitoring system
4.3-16
• After the deflation of 4 tires is completed, the
instrument cluster will display “Tire Pressure
Learning Successful”.
• The above learning shall be completed
within 240 s, or TPMS will exit the learning
mode automatically if more than 240 s. IDs
of tires that have not been learned will be
invalid and there will be no information
displayed by the instrument cluster.
• If the tire pressure learning is successful,
increase the tire pressure to the normal
value.

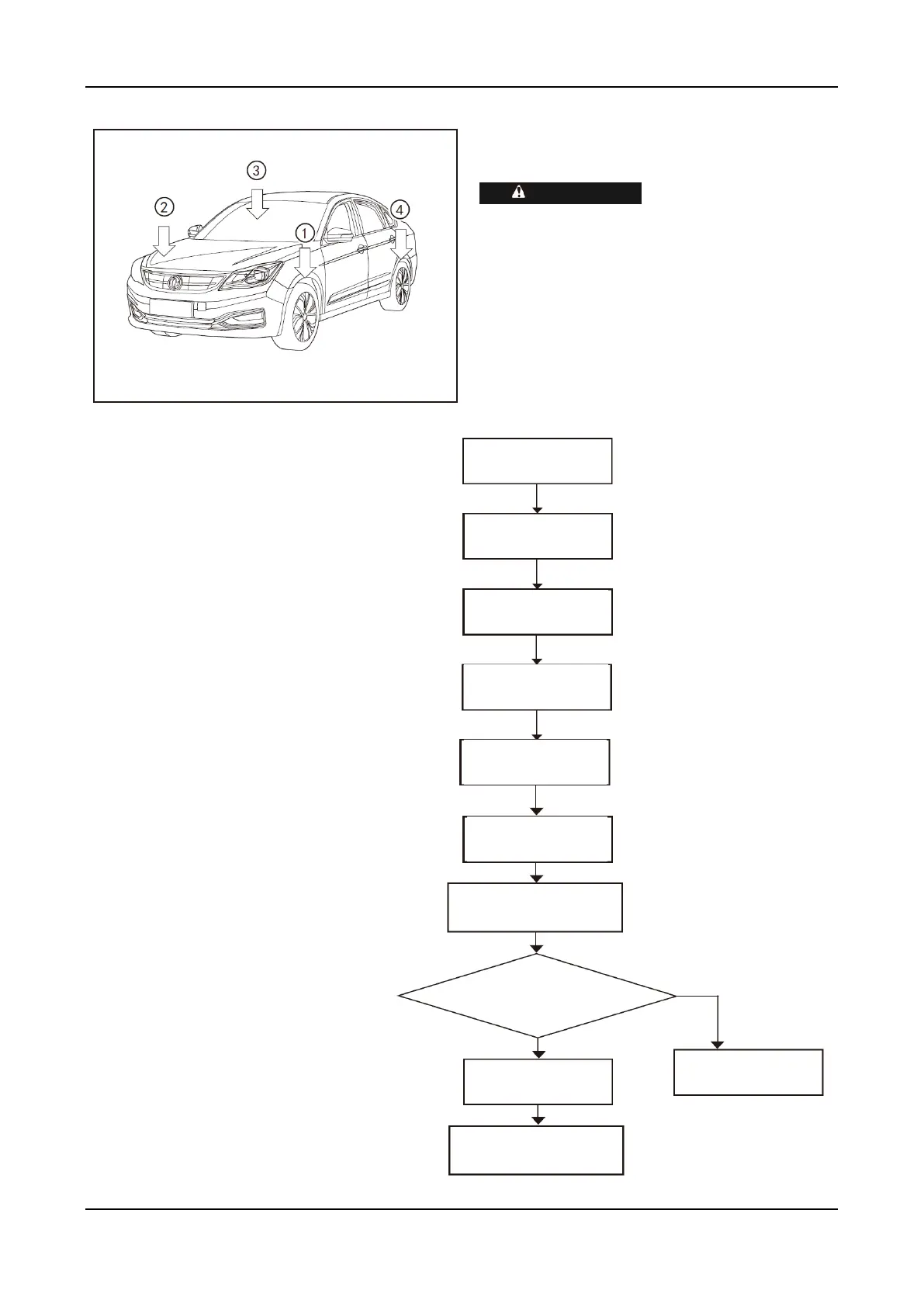

3- Learning flow chart
• The tire pressure wireless learning flow
chart is as follows:
The instrument cluster
sends learning
instructions.
The left front wheel is deflated
until the instrument cluster
displays the relevant
information.
“Left Front Wheel Learning
Successful”
The right front wheel is deflated
until the instrument cluster
displays the relevant
information.
“Right Front Wheel Learning
Successful”
The right rear wheel is deflated
until the instrument cluster
displays the relevant
information.
“Right Rear Wheel Learning
Successful”
The left rear wheel is deflated
until the instrument cluster
displays the relevant
information.
“Left Rear Wheel Learning
Successful”
The instrument cluster displays
“Learning Successful”.
Learnings of 4 tires are completed
within 240 s.
Tire pressure learning
is successful.
Increase the pressure of 4 tires to
the normal value.
Tire pressure learning failed,
and the learning mode will be
exited.
