ESC hydraulic control system
4.3-25

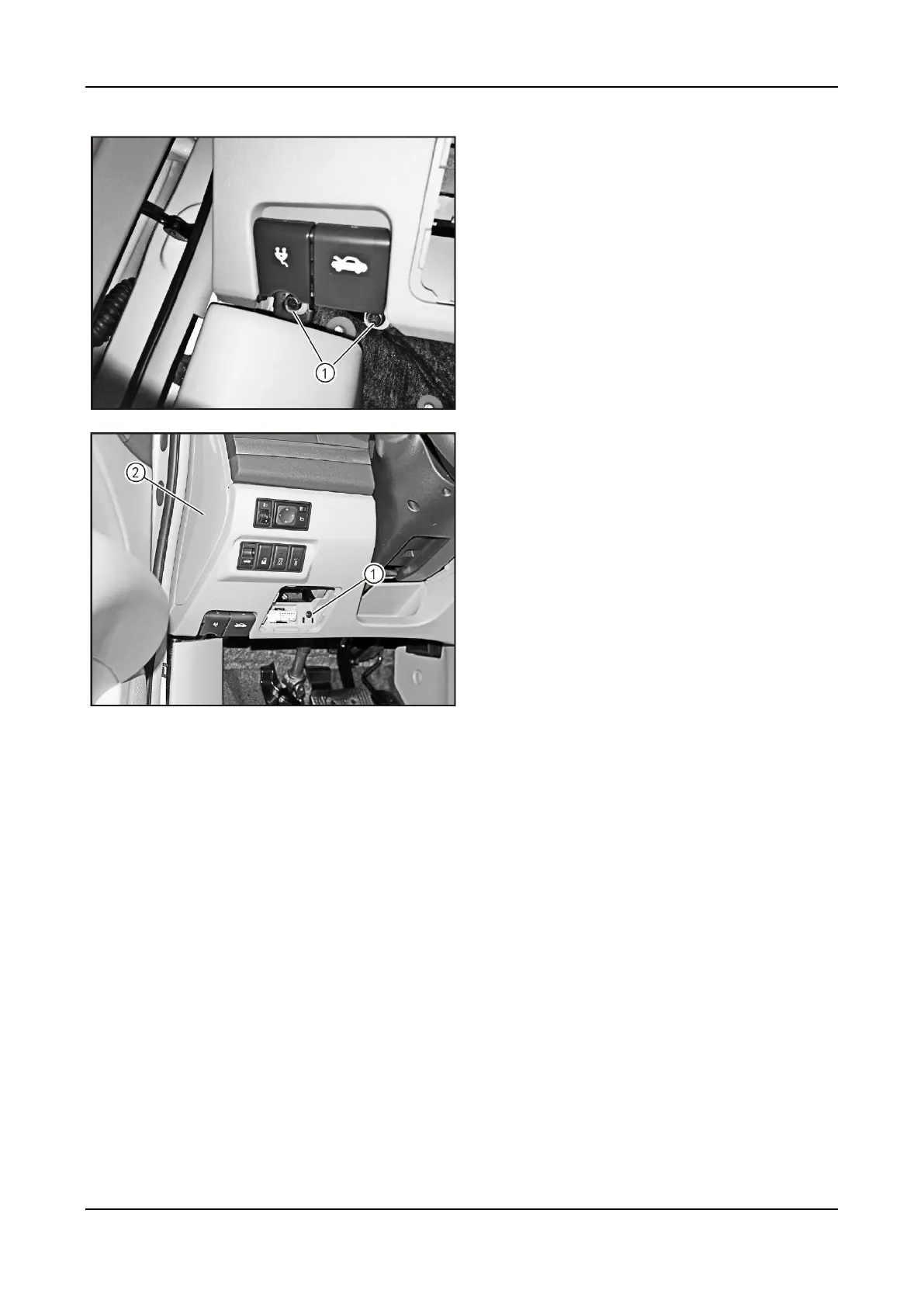

• Clamp the fixing brackets of the charging
hole cover handle and the drive motor
compartment handle in place and pre-tighten
the fixing bolts (1).
• Tighten the fixing bolts (1) of the charging
hole cover handle and the drive motor
compartment handle with a Phillips
screwdriver.
• Tighten fixing screws (1) of instrument
panel left protective plate with a Phillips
screwdriver.
• Refit the fuse box cover in the passenger
compartment.
• Refit the instrument panel left protective
plate (2).
• Connect the battery negative cable.
• Turn the ignition switch or the start-stop
button on to check that the ESC OFF switch
is working properly.
