Dorma 9600 Series - Retrofit from Existing 5100 to New 9600 Model

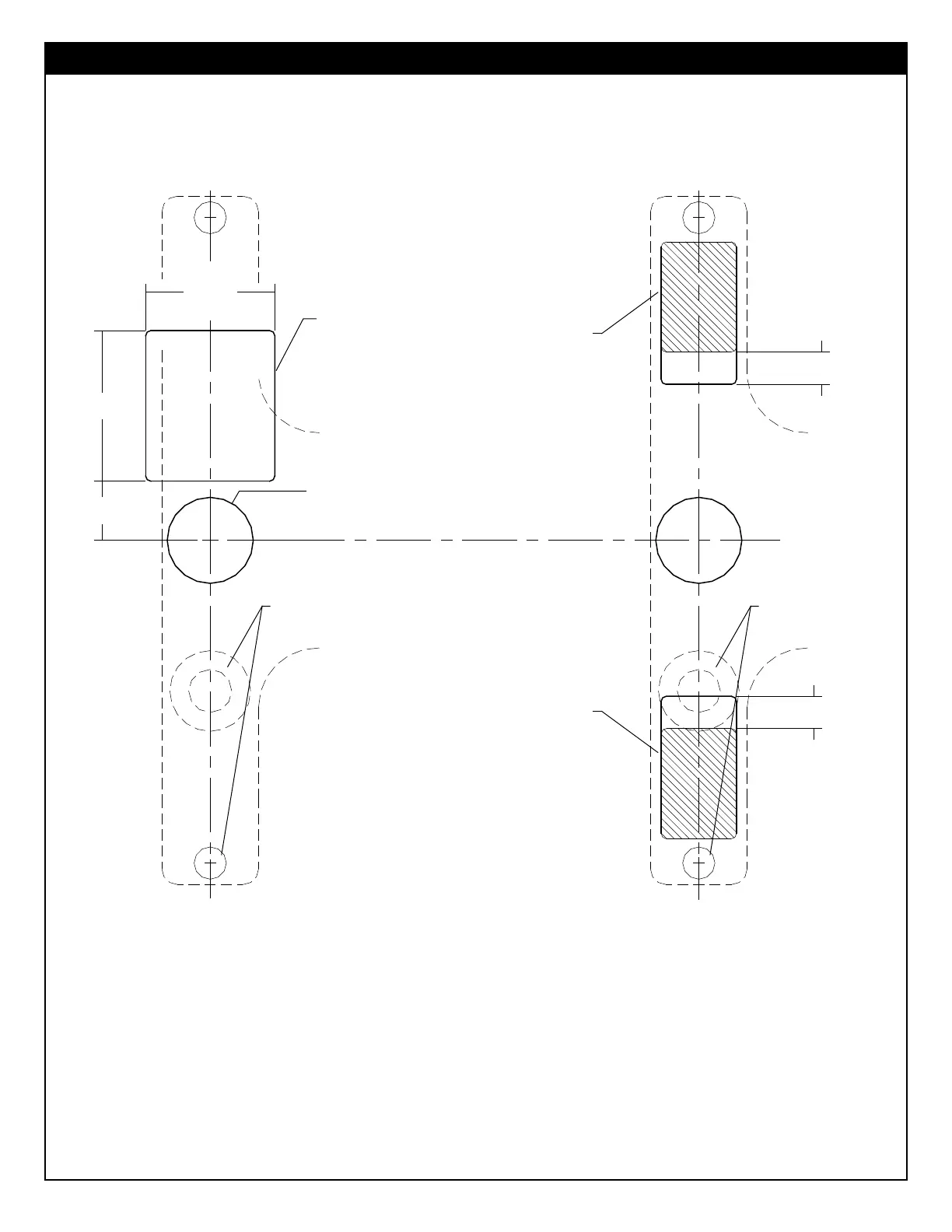

RETROFIT FROM EXISTING 5100 TO NEW 9600 MODEL
DO NOT SCALE
Outside face
Inside face
Existing
Holes
Existing
Holes
Existing
cutout
3/8"
3/8"
Inside face only
additional cutting
required.
Inside face only
additional cutting
required.
Existing
cutout
Existing horizontal ref. line
LHR
Existing vertical ref. line
(Center line of chassis)
When using trim
with outside cylinder.
Outside face only.
1 1/2"
max.
1 3/4"
11/16"
1" Dia. max. thru
door for spindle
18
NOTE: Requires
new top and bottom
rod assemblies.
Additional installation instructions:
Use existing latch and chassis location. Note: new "Z" trim will be required if trim is used.
Replace existing rod assemblies with new design. Follow instruction for installing new
9600 series device.
Install chassis assembly to door, install end cap bracket to door, hold touch bar and rail
assembly in position aligning screw holes in rail with mounting screw location of chassis,
mark a line on rear of rail where front edge of end cap bracket is then cut touch bar and
rail assembly to length.
Install touch bar and rail to door then install all covers.
