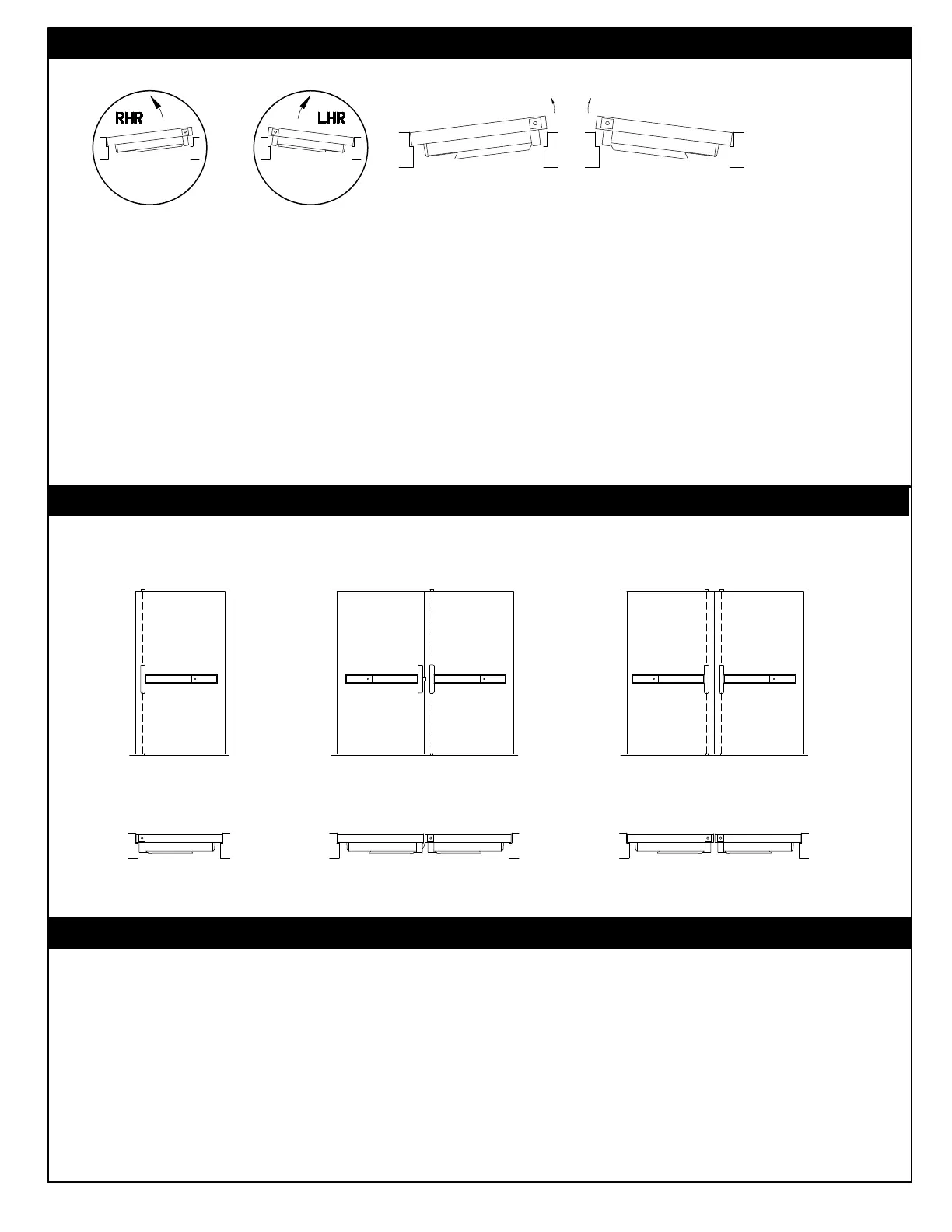

Dorma 9600 Series - Handing of Door; Typical Applications; Special Tools for Installation

2
RHR LHR
9600
Series
Device
9600
Series
Device
9700
Series
Device
9600
Series
Device
9600
Series
Device
Read the entire instruction sheet prior to installation.
Before Installing Hardware:
1. Verify door width, handing and product with carton label for correct exit device and length. (See Step 9)
2. For hand reversal of chassis see page 6, for outside lever trim see page (3).
3. For less bottom rod device, delete bottom latch installation steps.
4. Device installation and preliminary adjustments should be made prior to hanging door.
Note: Less bottom rod device is not recommended where security is a primary concern.
Note: If device is to be installed over glass lite panels, shim kit may be required, order GK9200.
12-24 Tap, 10-32 Tap
Drill bits: 1/8", 3/8", #25, #16, #21
Hole saw 1 1/4" diameter for trim (if required) or jig saw.
5/32" Allen wrench for lever trim.
3/32" Allen wrench (supplied)
HANDING OF DOOR
TYPICAL APPLICATIONS
SPECIAL TOOLS FOR INSTALLATION
