6

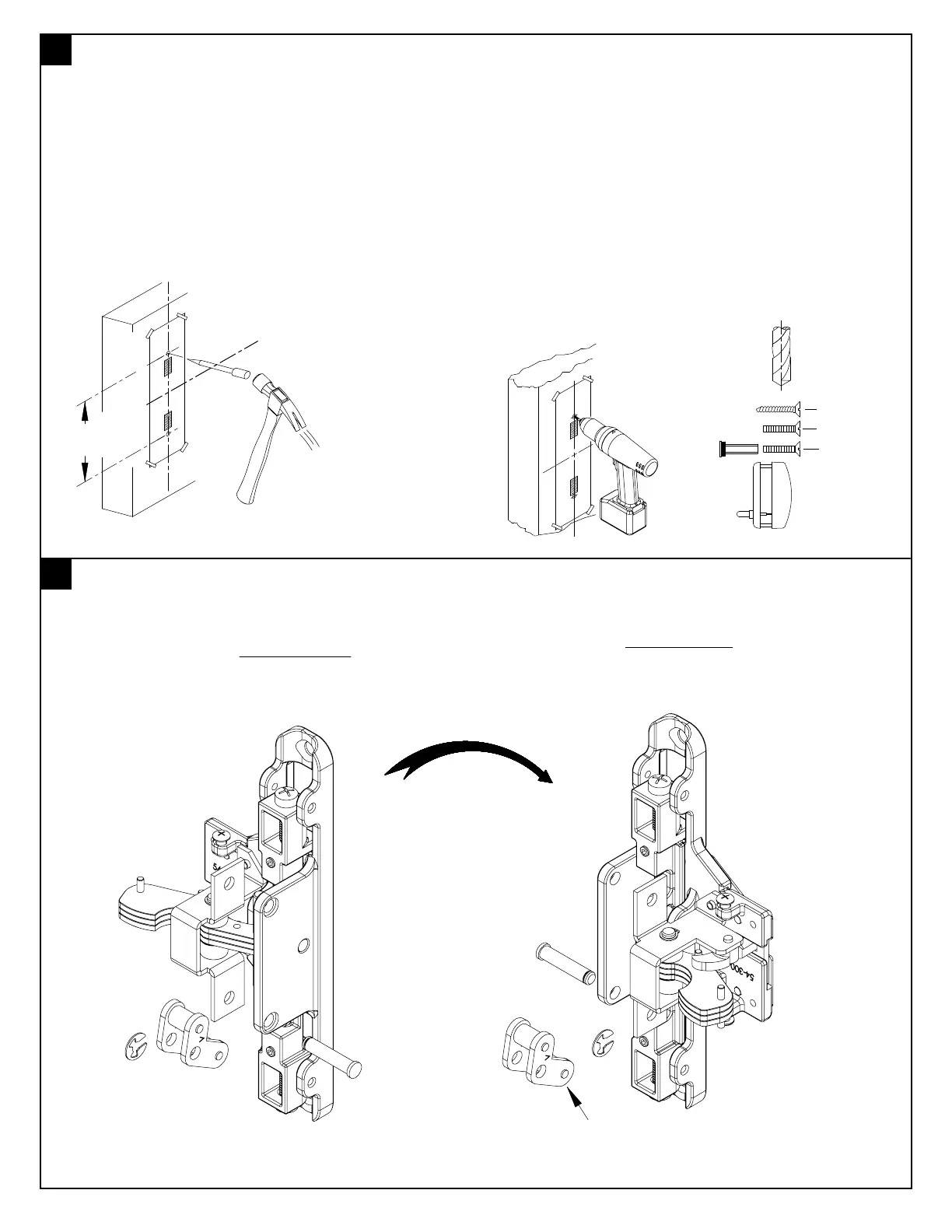

REASSEMBLE
DISASSEMBLE
LHR
(Left Hand Reverse)
RHR
(Right Hand Reverse)
a
b
c
d
f
e
Longer leg
down.
Rotate chassis
180 Degrees
g
3
If not done layout device on door using drilling template T9600 located at rear of booklet.
For additional templates contact DORMA at 1-800-523-8483 or www.dorma-usa.com
Remove parts
Reinstall parts
NOTE:
4
Hand reversal of chassis. Follow steps in alphabetical sequence.
7 1/2"
HORIZONTAL REF. LINE
VERTICAL REF. LINE
Refer to carton label for model and trim number prior to drilling.
Prepare mounting holes and cut-outs per template.
Verify all holes
prior to drilling.
(See Backsets on page 5.)
3/8"
No. 16
No. 25
To Next Page
