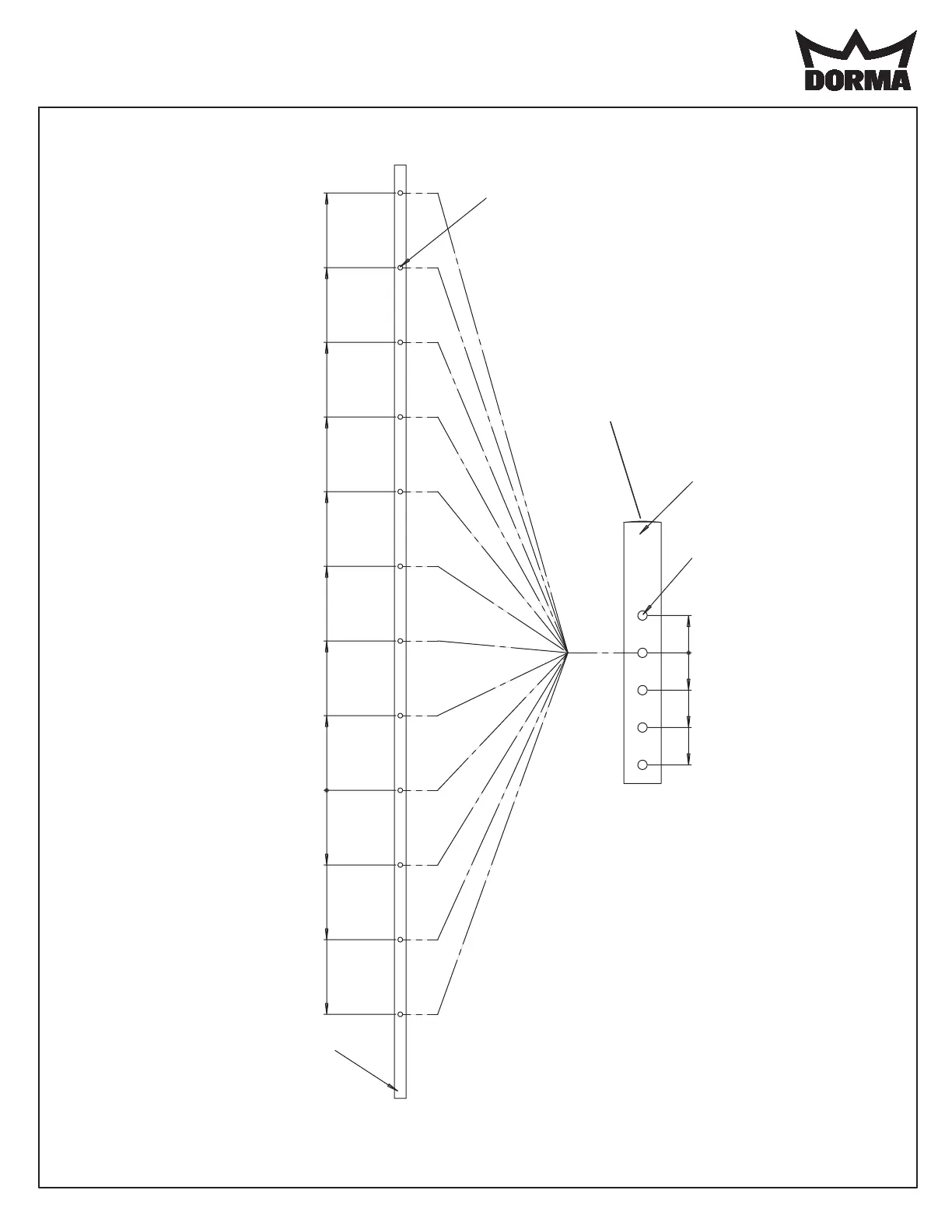

Dorma 9600 Series - Top Rod Adjustment Chart

7'
6'10"
6'8"
6'4"
7'2"
7'4"
7'6"
7'8"
7'10"
8'
8'2"
8'4"
0
1/2"
1/2"
1"
1 1/2"
Outer rod
Inner rod
Example:
For 7'5" door use 7'4"
pre-drilled inner rod with
1" pre-drilled outer rod;
(6th hole on inner rod &
2nd hole on outer rod.)
I9600RC-1 5/2010
CONCEALED VERTICAL ROD EXIT DEVICE
9600/F9600 SERIES
Addendum page I9600
www.dorma-usa.com 1-800-523-8483
Top Rod Adjustment Chart - for door sizes ranging from 6'4' to 8'4".
Rod end is assembled
to pivot connecting link
Pre-drilled
adjustment
holes.
Pre-drilled
adjustment
holes.
Thread this end onto
top latch adjusting bolt
as shown on page 7 in
installation instructions.
