Dormakaba ED50 - Page 35

35
ED50/ED100/ED250 09-2021DL4617-003
dormakaba ED50/ED100/ED250 OHC Header
Setup and Troubleshooting Instructions
Chapter 12
. Prepare door for bottom door pivot and install pivot

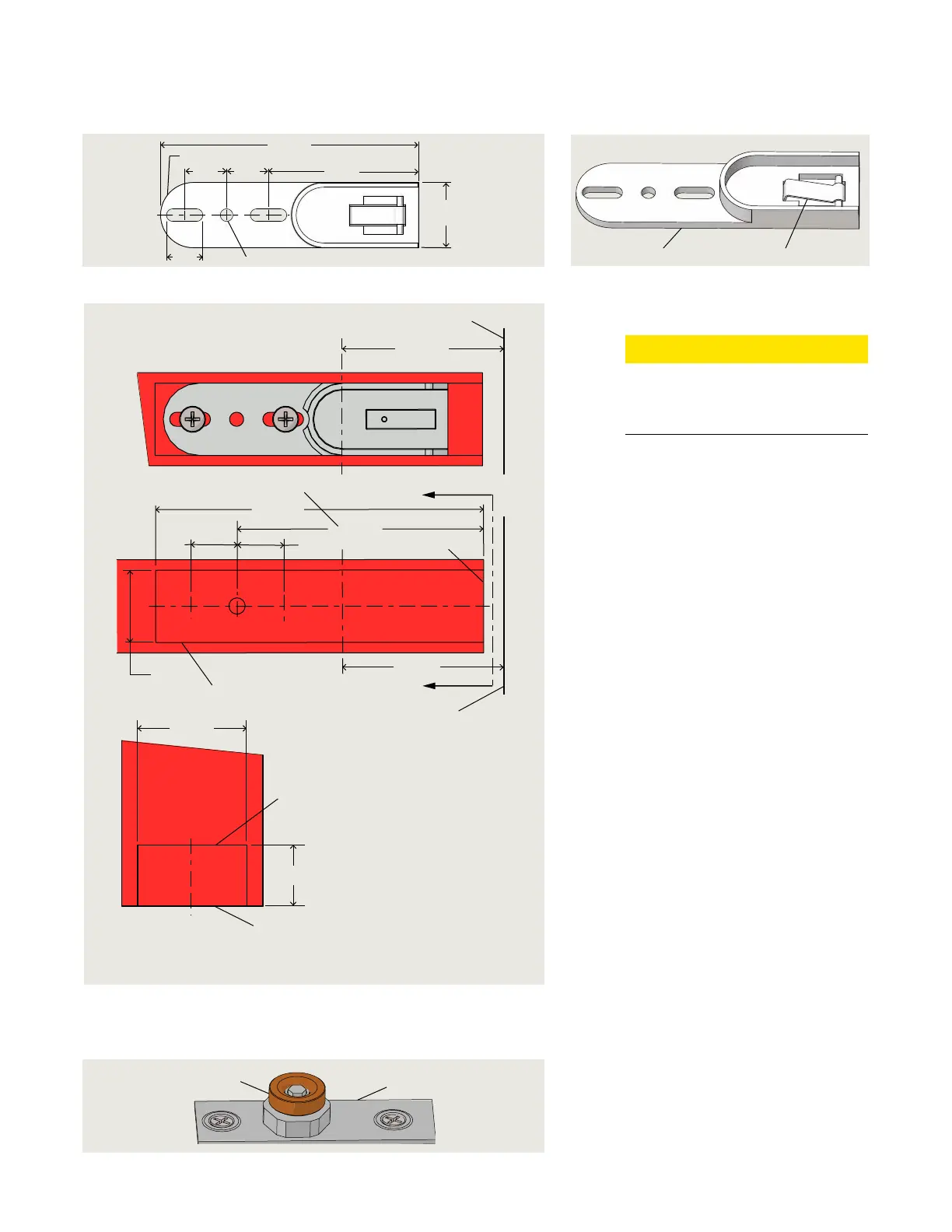

Fig. 12.3.3 Bottom door pivot
1 Door pivot
Fig. 12.3.1 Bottom door pivot dimensions
1 1.1
Fig. 12.3.2 Door mortise for bottom door pivot
1 5/16”
R 21/32”
3 1/8”
7/8”7/8”
Ø 0.26”
3/4”
5 5/16”
.. Prepare door for bottom door pivot.
CAUTION
Dimensions shown are for
dormakaba supplied bottom door
pivot .
. Mortise bottom of door for bottom door
pivot using dimensions referenced in
Fig. .. and ...
. Drill holes for selected /" fasteners in
the two slotted holes.
.. Install bottom door pivot.
. Place bottom door pivot in mortise.
. Install fasteners and tighten.
1.1 Door pivot release
lever
. Install floor pivot shaft bearing
Fig. 12.4.1 Floor pivot and bearing
1 Floor pivot 6 Bearing
.. Install floor pivot shaft bearing.
. Place bearing on floor pivot shaft.
C
L
4 5/8”
6 5/32”
A
A
Door mortise for
bottom door pivot
7/8”
7/8”
1 3/8”
Edge of door
3 3/4”
C
L
Edge of jamb
3 3/4”
C
L
Edge of jamb
1 3/8”
Reference dimension
A - A
3/4”
C
L
Bottom of door
Door mortise for
bottom door pivot
6
1
