ED50/ED100/ED250 09-2021DL4617-003
dormakaba ED50/ED100/ED250 OHC Header
Setup and Troubleshooting Instructions
Chapter 12

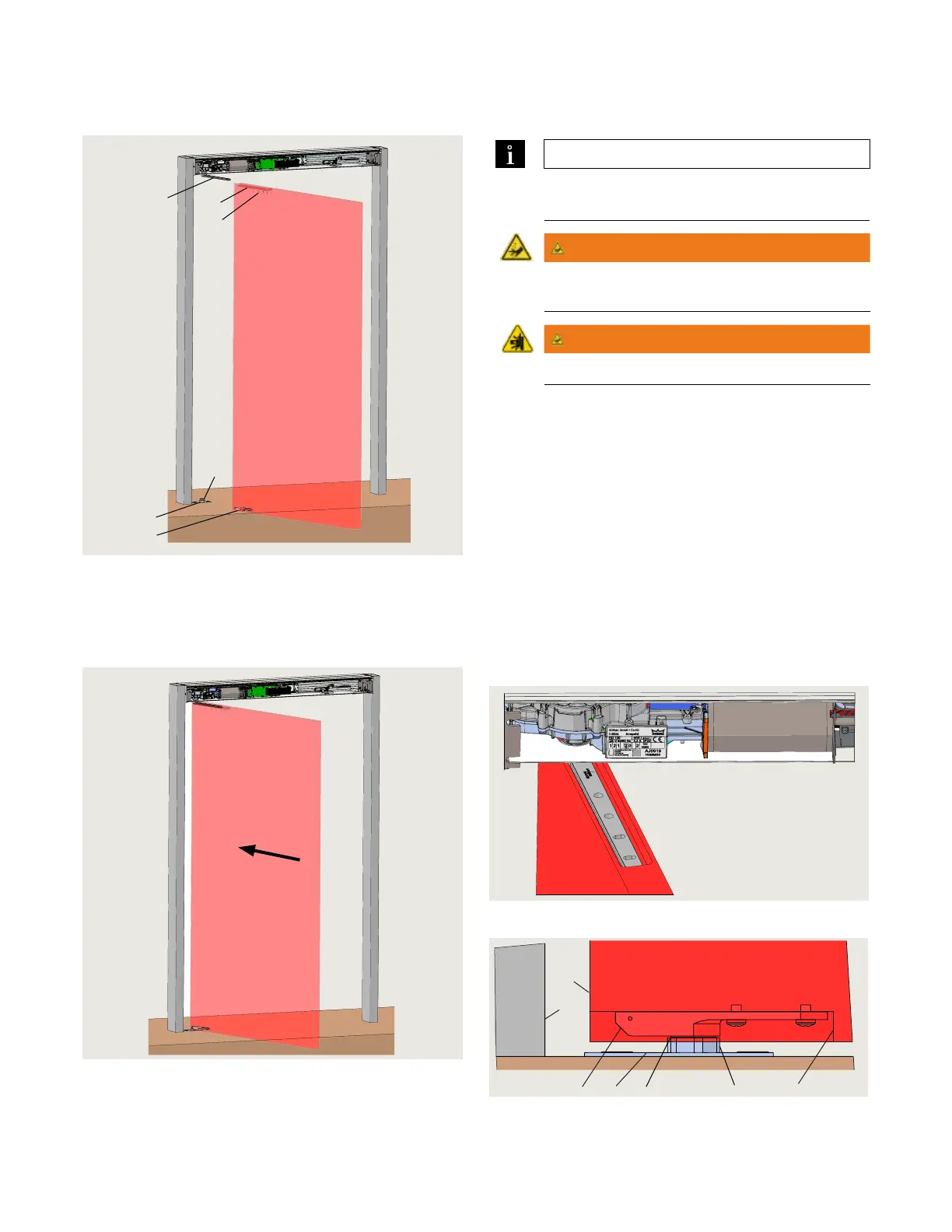

Fig. 12.5.4 Door bottom pivot on floor pivot bearing
1 Floor pivot
1.1 Height adjustment
2 Door bottom pivot
3 Door
1
2
4
3
5
6
1.1
4 Jamb
5 Door bottom pivot
mortise
6 Bearing
.. Hang door. RH inswing example.
TIPS AND RECOMMENDATIONS
A second person is recommended for door
installation!
WARNING
Hand pinch point and crushing hazards during
door install.
WARNING
Crushing hazards during door install.
.. Move door under overhead arm.
. Hold door vertical and parallel to overhead arm.
. Move door under overhead arm (Fig. ..).
.. Slide door onto bottom pivot.
. Slide bottom door pivot release lever over bottom
pivot (Fig. ..) until door lowers onto bottom pivot
bearing (Fig. ..).
• Bottom door pivot release lever holds door bottom
pivot in place over bearing.
. Overhead arm mounting holes should be aligned
with hex bolt clearance holes in overhead arm
mortise (Fig. ..).
. Hang door
1
1.1
2
3
4
4.1
Fig. 12.5.1 Door positioned for installation
Fig. 12.5.2 Slide door onto bottom pivot
1 Floor pivot
1.1 Bearing
2 Door bottom pivot
3 Overhead arm
4 Overhead arm
door mortise
4.1 Clearance holes for
1/4 x 1" SHCS
Fig. 12.5.3 Overhead arm in door mortise
Slide door into
position
