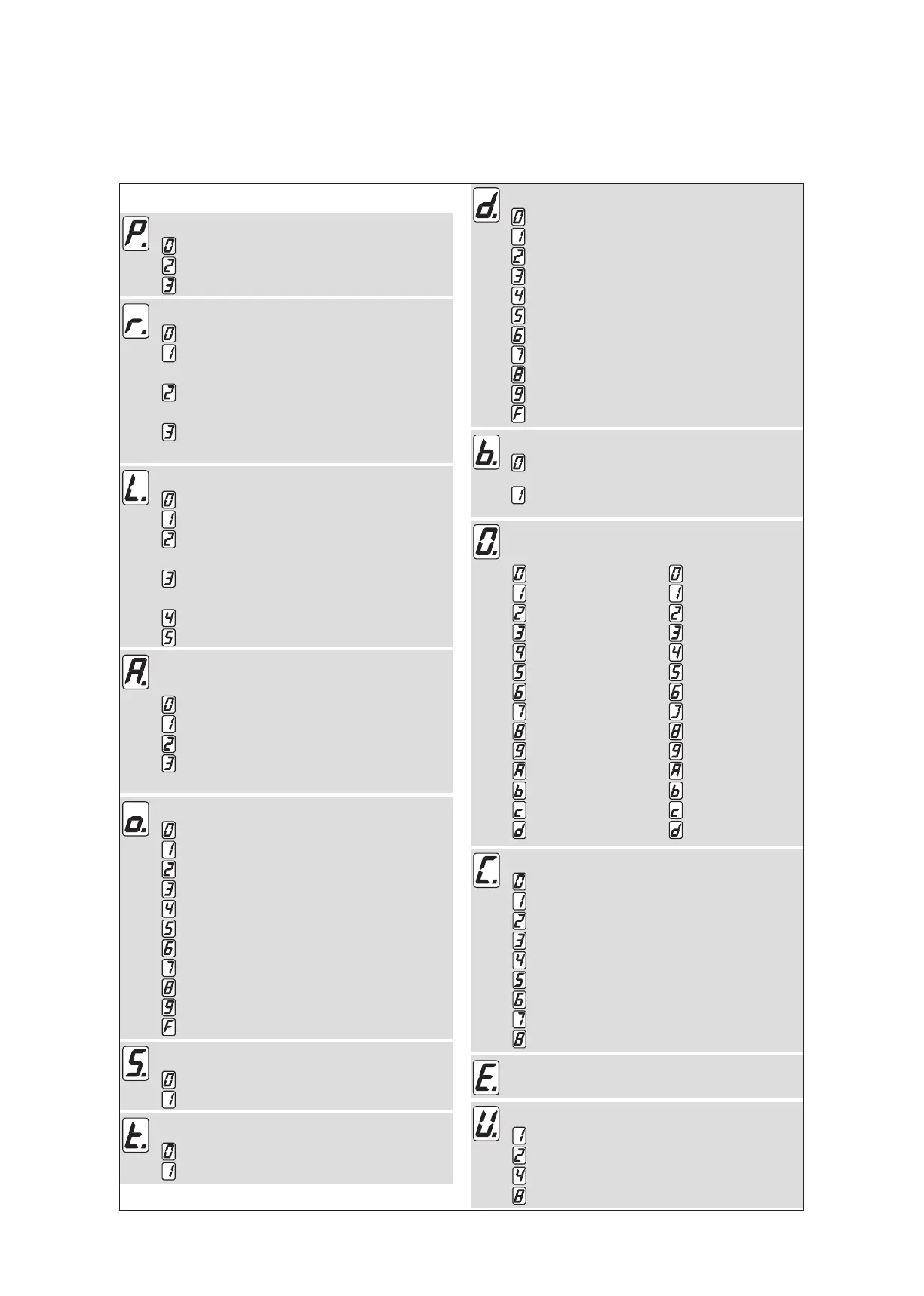

Meaning of display codes
Country program mode
Program mode Standard
Program mode CO 48 disconnect
Program mode CO 48 connect
Parameterisation blocking
Parameterisation blocking activated
Parameterisation blocking deactivated
Rubber cord test
Rubber cord test deactivated
Rubber cord test activated
Locking in program switch position:
setting “OFF“
setting “OFF“ and
“EXIT ONLY”
setting “OFF“ and
“AUTOMATIC/PARTIAL OPEN”
the door is always locked while in
“closed” position
Locking type:
NO locking device
Bistable locking device
Bistable locking device with
feedback contact (NO)
Monostable locking device
(fail-safe design)
Combi locking device
Rod lock system (DCW)
Emergency operation via rechargeable
battery pack
no battery
Emergency closing
Emergency opening
Emergency operation via rechargeable
battery pack
Night-/Bank h
0 sec locking device
1 sec locking device
2 sec locking device
5 sec locking device
8 sec locking device
10 sec locking device
15 sec locking device
20 sec locking device
25 sec locking device
30 sec locking device
Adjustment via PDA old-open time
Hold-open time
0 sec
1 sec
2 sec
5 sec
8 sec
10 sec
15 sec
20 sec
25 sec
30 sec
Adjustment via PDA
Hold-open time
10 cm/sec
15 cm/sec
20 cm/sec
25 cm/sec
30 cm/sec
35 cm/sec
40 cm sec
45 cm/sec
50 cm/sec
U. Protocol UART 1
PDA (Palm)
Data logger
TMS-Soft
TC 65
Opening speed:
Motor 63x25 Motor 63x55
10 cm/sec 10 cm/sec
15 cm/sec 15 cm/sec
20 cm/sec 20 cm/sec
25 cm/sec 25 cm/sec
30 cm/sec 30 cm/sec
35 cm/sec 35 cm/sec
40 cm/sec 40 cm/sec
45 cm/sec 45 cm/sec
50 cm/sec 50 cm/sec
55 cm/sec 55 cm/sec
60 cm/sec 60 cm/sec
65 cm/sec 65 cm/sec
70 cm/sec 70 cm/sec
75 cm/sec 75 cm/sec
Motor type
Motor "63x25”/100 incremental encoder disc
Motor "63x55”/100 incremental encoder disc
Error message
see next pages
