dormakaba Mounting instructions Product description
3.6 Operating elements buttons,
switches, DIP switches and
potentiometers
3
(1) Power switch
ON = On
OFF = Off
(2) Program switch
I = PowerMotion
(Automatic mode)
O = Off
II = Permanent Open
(3) DIP switch
A Prior to completing commissioning
ON = Scissor arm
OFF = Slide rail
After completing commissioning
ON = Electric strike release active
OFF = Electric strike release
inactive
B ON = Test, sensor
Opposite hinge side active
OFF = Test, sensor
Opposite hinge side inactive
C ON = Test, sensor hinge side active
OFF = Test, sensor hinge side
inactive
D ON = High test active
OFF = Low test active
(4) Potentiometer unlocking time
(5) Service button
(6) Potentiometer speed
(7) Illuminating diode (LED, green)
(8) Potentiometer hold-open time
(9) Potentiometer wall blanking

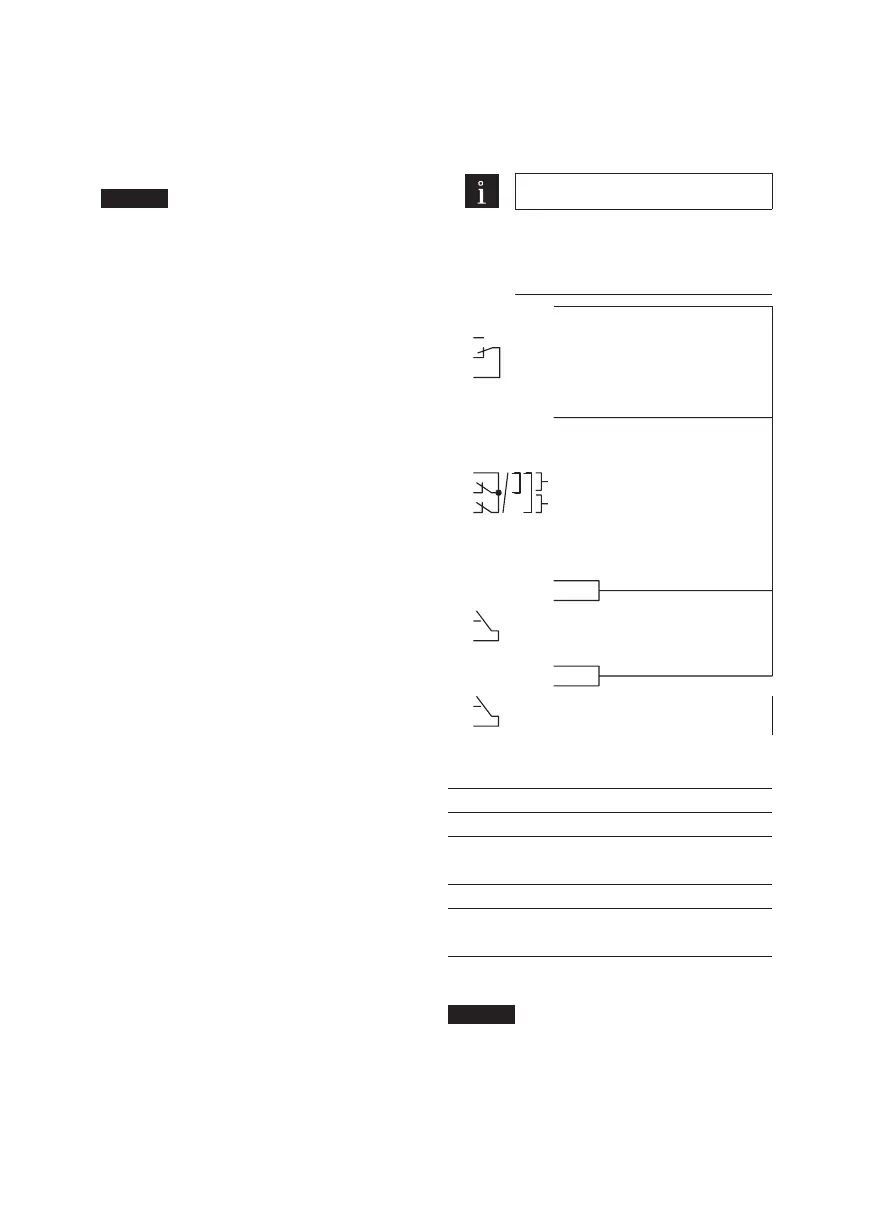

3.7 Connections of terminal
assignments
Note
Supply voltage for external
loads, 24VDC, max. 800mA,
e.g. locking device
1U +24VDC
64
63
Electromechanical locking device:
Potential-free contact (changeover
contact)
62
CN not in use
3 – 0VDC
1U + 24VDC
3
Safety sensor hinge side
Connection not used = jumper
Safety sensor opposite hinge
side
Connection not used = jumper
15
11
13 Test
1U + 24VDC
3 – 0VDC
42
Activator
(e.g. manual switch, motion detector)
3
1U + 24VDC
3 – 0VDC
42
Activator
(e.g. manual switch, motion detector)
3
3.8 Technical data
Weight 3.2kg
Power supply 230VAC (±15%)
Fuse supplied by the
customer
10A
Temperature range -15°C to +50°C
Relative humidity max. 93%
non-condensing
3.9 Accessories and options
4
(1) Concealed cable loop
The concealed cable loop is required for
mounting the operator on the door leaf.
