Dormakaba PORTEO - Product description; Electrical door opener; Safety sensors

7PORTEO
2021-03WN 060008 45532
dormakaba Mounting instructions Product description
(2) Scissor arm for lintel depths
of 30–90mm
A scissor arm is required when
mounting on the opposite hinge side of
the operator, if the lintel depth is
greater than 30 mm. The slide rail is not
needed when a scissor arm is used.
(3) Manual switch
Automatic door opening via the button.
The door must also be equipped with an
electrical door opener.
(4) Mounting plates 30mm and 40mm
To attach the slide rail to door frames,
at which direct mounting is not possible
(see Figure figure part)
(5) Lintel casing bracket
To attach the slide rail to door frame
with a deep lintel, for mounting on
opposite hinge side (see Figure figure
part)
(6) Glass door clamping rail
In order to fasten the slide rail to
all-glass doors, no processing of the
glass is required. Only for lintel
mounting on hinge side. (see Fig. figure
part)
(7) BRC-R radio receiver
Prerequisite in order to control PORTEO
with BRC-H hand-held transmitter,
BCR-W wall switch and BRC-T
potential-free button interface. The
receiver board is connected with the
crimp plug and positioned in the shaft
(see Figure figure part). The door must
also be equipped with an electrical door
opener.

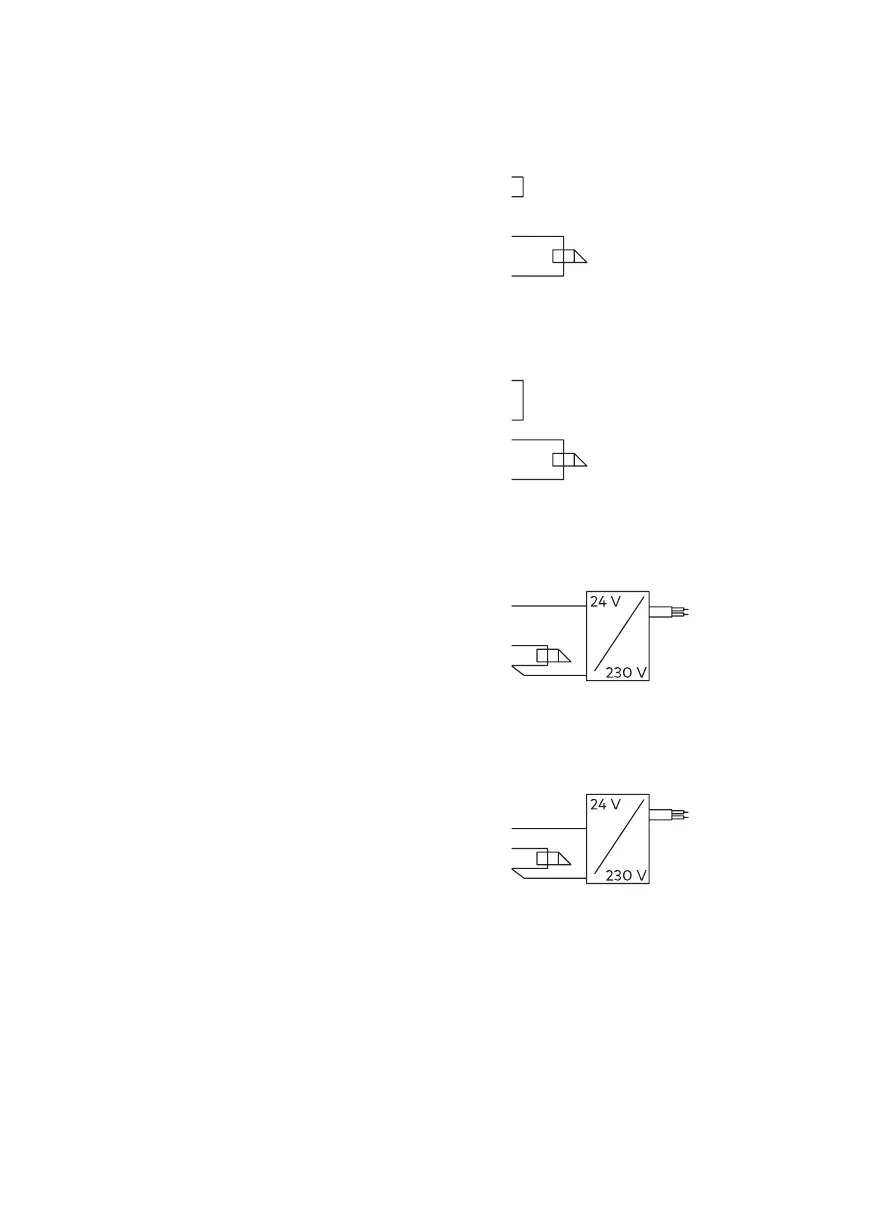

(8) Electrical door opener (without Fig.)
The unlocking time is infinitely
adjustable from approx. 0.2sec. – 3sec.
The connection must be based on the
function of the door opener.
Operating current locking with internal
24VDC power supply
De-energized closing
1U
64
63
62
CN
3
Quiescent current locking with internal
24VDC power supply
De-energized opening
1U
64
63
62
CN
3
Operating current locking with external
24V power supply
De-energized closing
1U
Mains
connection
64
63
62
CN
3
Quiescent current locking with external
24Vpower supply
De-energized opening
1U
Mains
connection
64
63
62
CN
3
(9) Safety sensors (without Fig.)
Due to the risk assessment, the use of
contactless safety devices is required.
The turning range of the door must be
secured by panel mounted safety
sensors.
