dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers
5

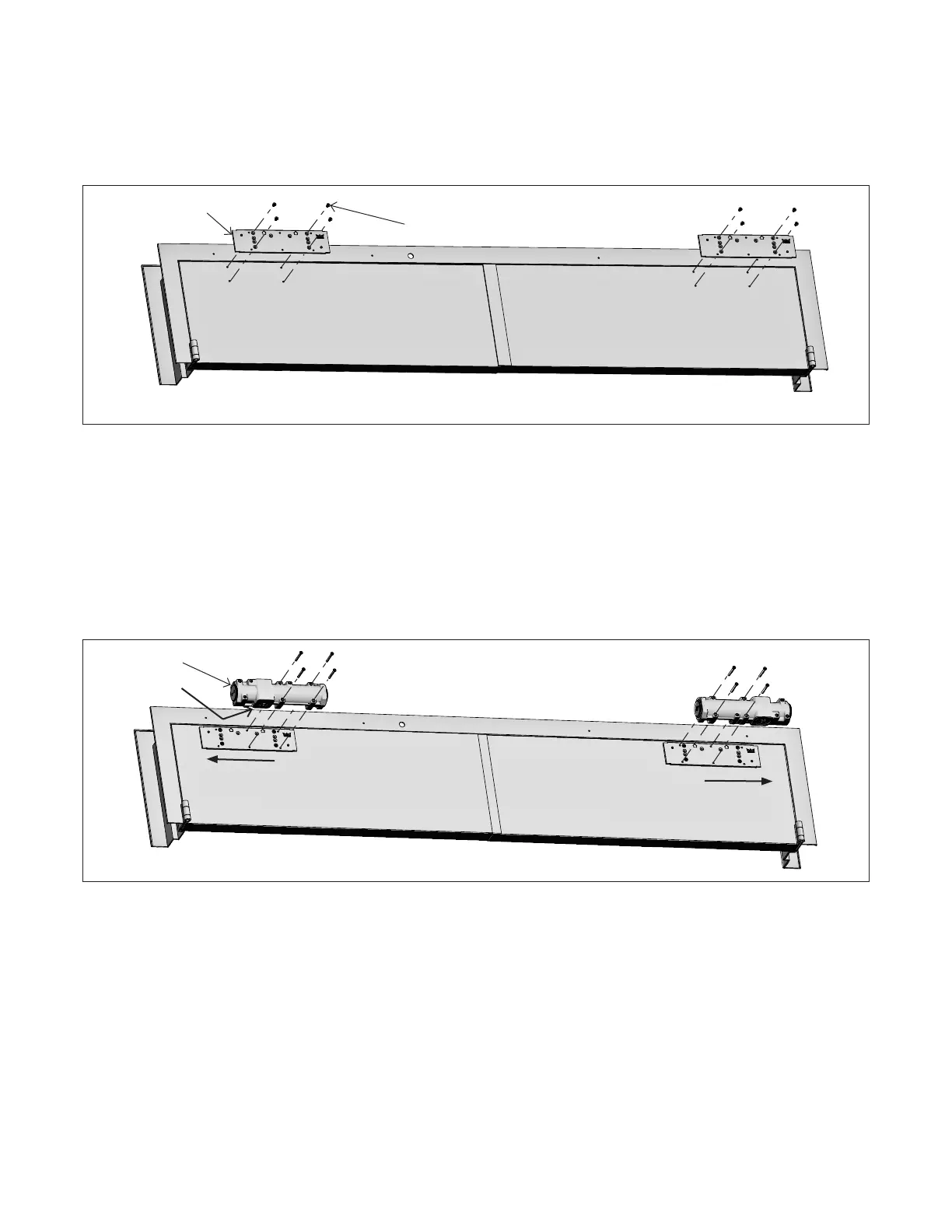

Installing back plate
Installing surface closer
. Installing the back plate
2 Installation instructions
NOTE: Orient pinion closest to hinge. .. Secure closer body to plate.
• Use four M x mm screws for each closer.
NOTE: Use ONLY hand Phillips bit driver #2 or Pozidriv
PZ-2.
. Installing the surface closer
Fig.
Fig.
.. Secure plate to door.
• Use four - x /” PH screws [# x -/”
wood screws] provided for each plate.
NOTE: Ensure arrows point
in direction of arm location.
Left hand
door
Right hand
door
Backplate
-x/"
Toward the
hinge
Toward the
hinge
Closer
Pinion
Left hand
door
Right hand
door

Dormakaba TS93 Series Specifications

General

Category	Door Opening System
Mounting	Surface Mounted
Backcheck	Adjustable
Closing Speed	Adjustable
Latching Action	Adjustable
Body Material	Aluminum
Type	Cam Action Door Closer
Hold-open	Optional
Certifications	EN 1154
Door Weight	Up to 120 kg
Finish	Silver
