dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers
9

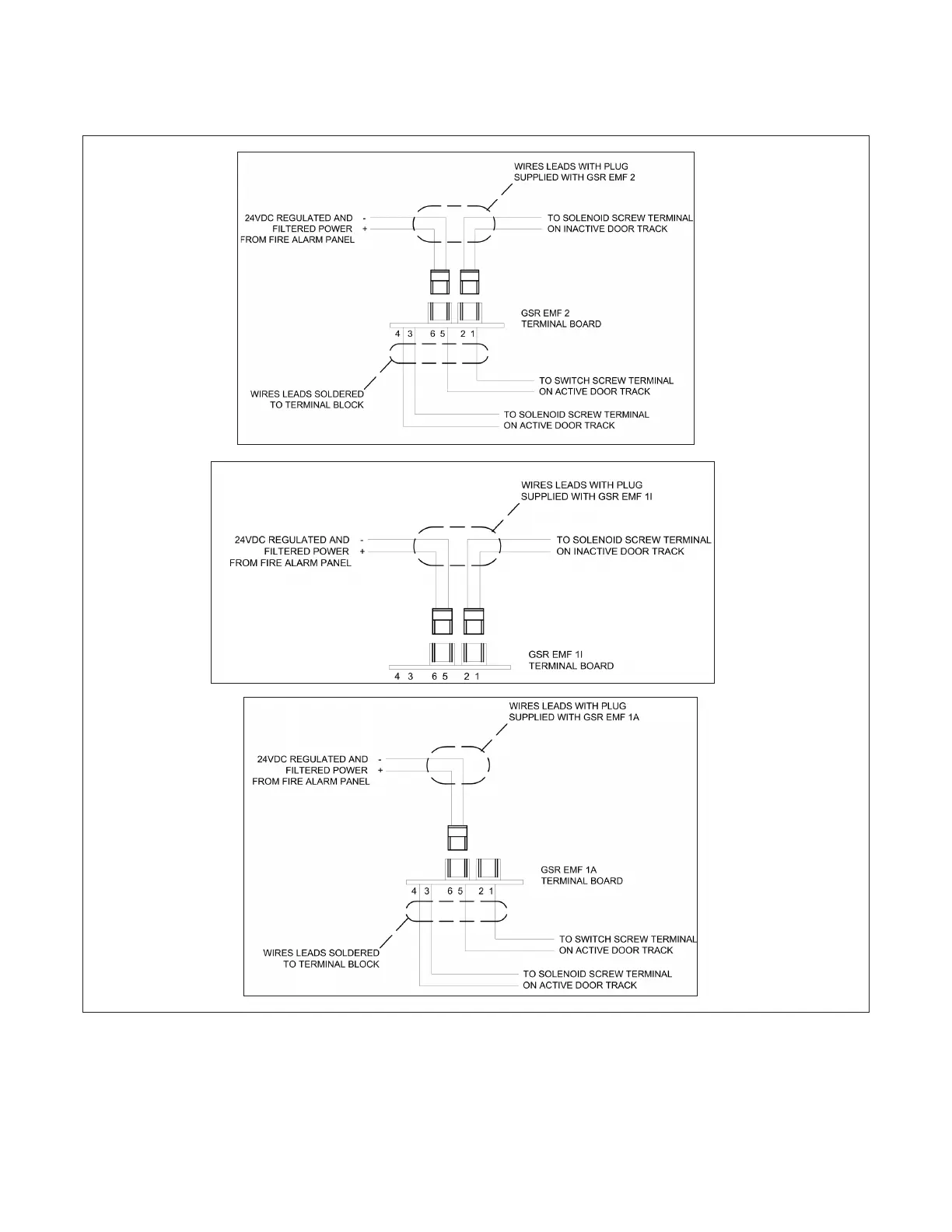

Wiring EMF
. Wiring the EMF
Fig.
EMF 2
EMF 1I
EMF 1A
.. Determine appropriate EMF unit and follow steps below:
EMF 2: Plug in wire harness into terminals and (active
door track) of the -pin terminal block.
EMF 1I: Plug in wire hardness to terminals and
(active door track) of the -pin terminal block.
EMF 1A: No plug in wire harness to -pin terminal block
of active door.
NOTE: Be sure power is off prior to making following connections:
.. Connect power wire harness to VDC power supply.
.. Plug in power wire harness to terminals and (active
door track) of -pin terminal block.
