dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers
7

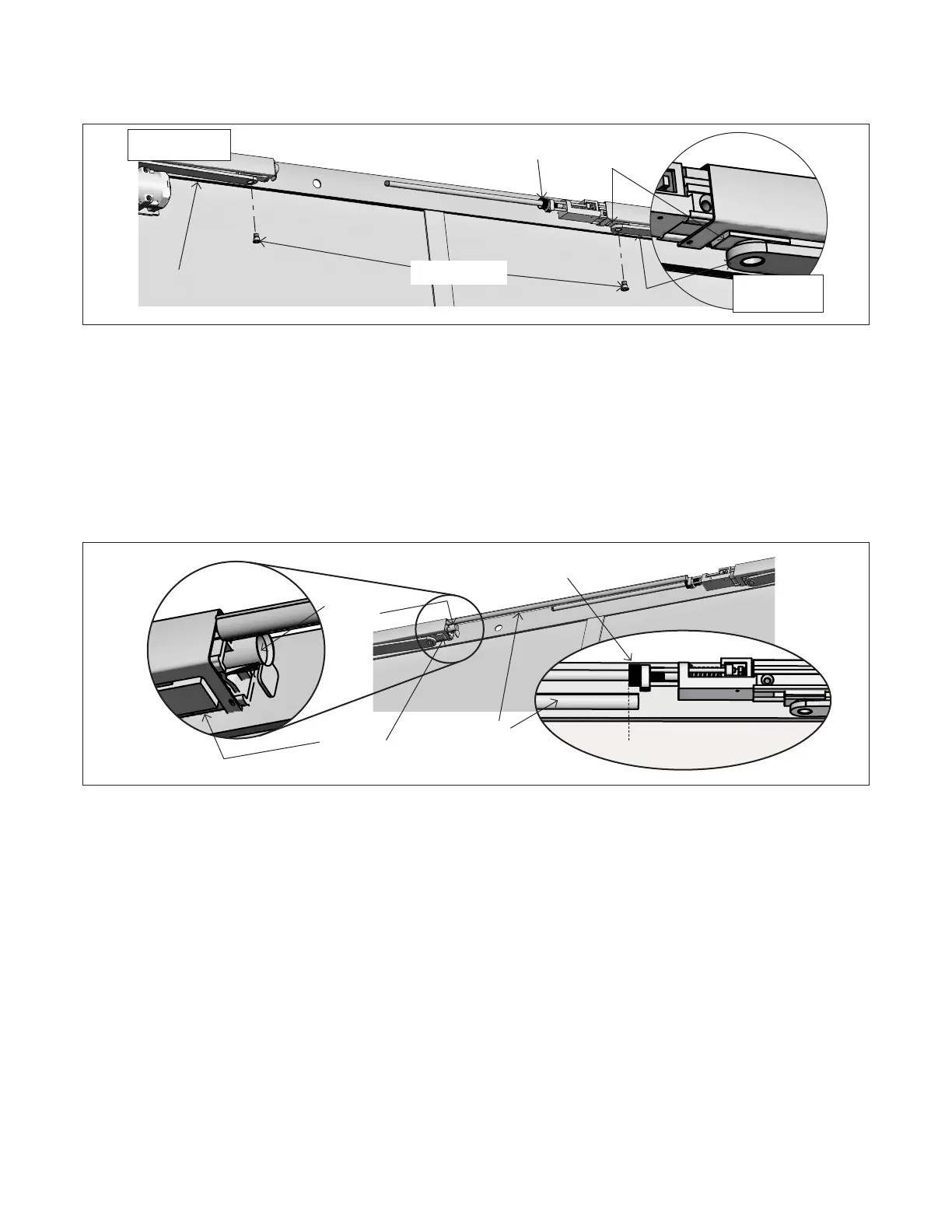

Secure main arm
Installing coordinator system
. Secure main arm
Fig.
.. Secure arm to slide shoe.
• Use one Mx shoulder bolt and an mm hex
key.
NOTE: Depress trigger dial to allow active slide shoe to
move freely. If locking pin falls out, discard after
completing installation.
Arm
Slide shoe
Arm
Mx SH bolt
Left hand door
(Active)
Right hand door
(Inactive)
Trigger dial
. Installing the coordinator system
Fig.
.. Close both door leafs.
.. Push plastic guide element up against slide
shoe.
.. Fully wind trigger dial (towards door frame).
.. Align connecting channel with trigger dial per
image above.
.. Mark and cut connecting channel.
Cut mark
reference
Plastic guide
element
Slide shoe
Trigger dial
Connecting
channel

Dormakaba TS93 Series Specifications

General

Category	Door Opening System
Mounting	Surface Mounted
Backcheck	Adjustable
Closing Speed	Adjustable
Latching Action	Adjustable
Body Material	Aluminum
Type	Cam Action Door Closer
Hold-open	Optional
Certifications	EN 1154
Door Weight	Up to 120 kg
Finish	Silver
