Dostmann Electronic P700 Series Operating Instructions

3938
5. Interface protocol
P700
Measuring value 1 + 2 recognize autom. FC (hex)
alternatively ü (ASCII)
----------------------------------------------------------------------------------------------------------
Enabling the keyboard 0 (hex)
----------------------------------------------------------------------------------------------------------
Read version number of rmware 6E (hex)
alternatively n (ASCII)
----------------------------------------------------------------------------------------------------------
Read memory (only LOG-instruments) 6C (hex)
alternatively I(ASCII)
----------------------------------------------------------------------------------------------------------
Device serial number S (ASCII)
----------------------------------------------------------------------------------------------------------
Interface parameter:
Baud rate 2400 baud
Data bit 8
Stop bit 2
Parity None
Attention: By sending the command FC (hex) you will get the complete data, the
instrument lock auto-matically the keyboard. To release the keyboard you have
to send the command 0 (hex).
The datas would be sent in the following format.
Data Type = String
The length of the string depends on the instrument (a two-channel or one-chan-
nel instrument).
For PC communication with the P700 series via the USB interface,
it is necessary to use a driver (VCP Virtual Com Port).
The required driver can be found on the optional “DE-Graph” software for P700-
series (order code 5090-0081). It is also possible to download the driver from the
Internet at: www.ftdichip.com.
Depending which PC operating system Used, there are different driver versions
to select.
Accuracy
Pt100 ±0.1 °C from -100 °C...+200 °C
otherwise 0.1%
Thermocouple gem. DIN (-200...1760°C)
R, S ±1.0 °C +0.1%
K, J, L, N, T ±0.2 °C from 0 °C...+200 °C
±0.5 °C to 1000 °C
±1.0°C remaining range
Humidity ±1.5%rH
Flow 1% of end value
Resistance -
Memory appr. 6,000 measurements
Resolution 0.1°C, 0.1% and 0.1 m/s
Ex-mark -
Battery life appr. 20 hours
Connectors DIN 8-pole
Allowable operating temp. 0 °C ... +40 °C
Display 2-line LCD
Housing plastic
Dimensions 200 x 93 x 44 mm (LxWxH)
Weight 350 g
Power supply 9 V battery

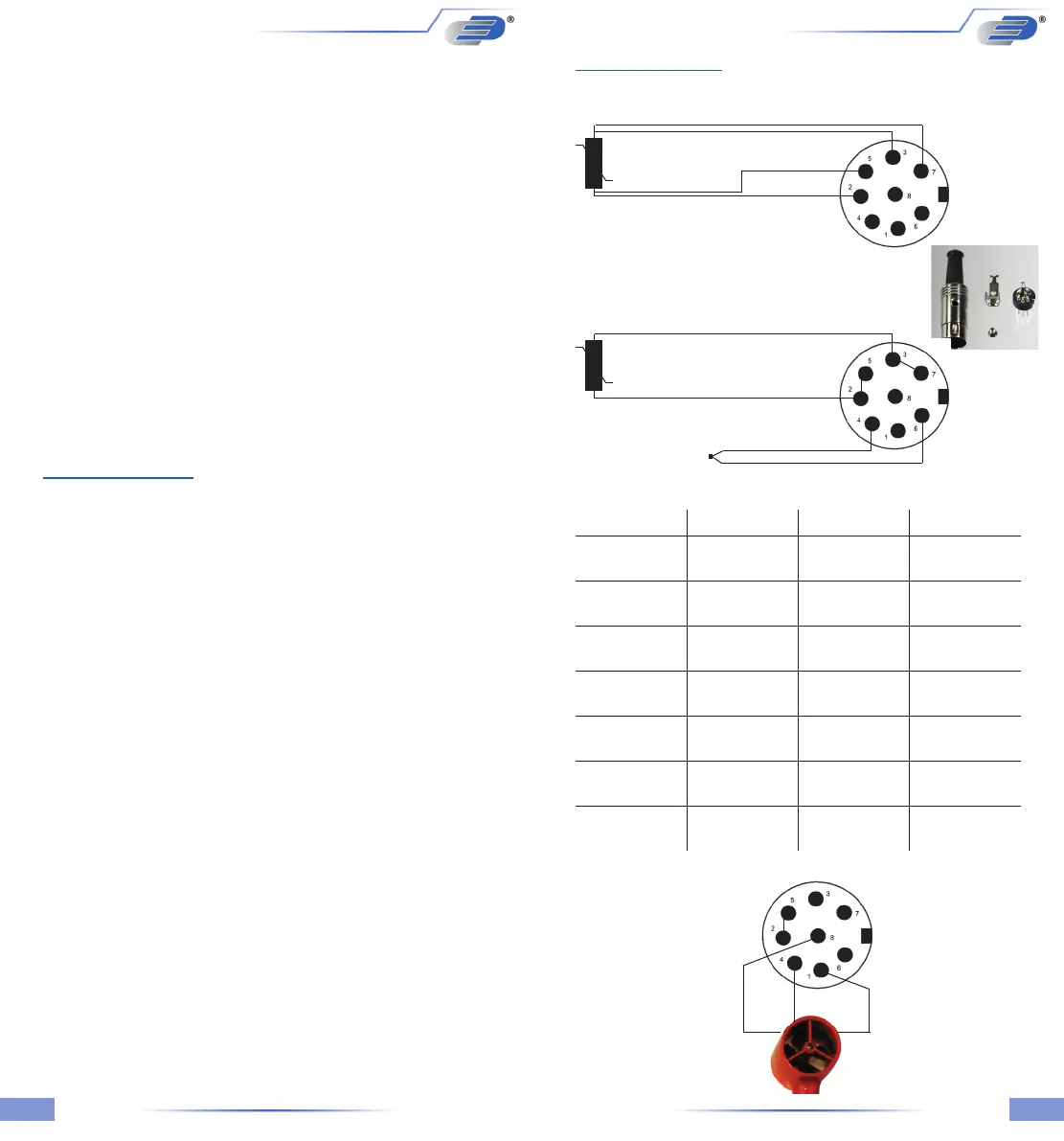

6. Connector layout
Connector layout Pt100 4-wire
Measuring channel 1 /2
Pt100 4-Wire
Soldering
Side
Connector layout thermocouple
Measuring channel 1 /2
Pt100 2-Wire
In the plug
Soldering
Side
NiCr-Ni thermocouple
-
+
Thermocouple DIN 43 722 DIN 43 710 ANSI MC 96.1
Typ R
Pt13Rh-Pt
orange
+ orange – white
white
+ red - white
green
+ black - red
Typ S
Pt10Rh-Pt
orange
+ orange – white
white
+ red - white
grün
+ black - red
Typ J
Fe-CuNi
black
+ black - white
black
+ white - red
Typ T
Cu-CuNi
brown
+ brown - white
blue
+ blue - red
Typ K
NiCr-Ni
green
+ green - white
... green
+ red - green
yellow
+ yellow - red
Typ N
NiCrSi-NiSi
rosa
+ pink - white
Typ L
Fe-CuNi
brown
+ red - blue
International colours of thermocouples
Connector layout of a probe for ow Mini Air6
(series P750/P755/770)
Measuring channel 1 /2
Soldering
Side
yellow
black
white
Mini Air6 Impeller
