Body Controller Hardware
107
CORTEX CONTROLLER™ PIN NUMBER DIAGRAM
Refer to the figure below for the Cortex Controller™ female pin locations.

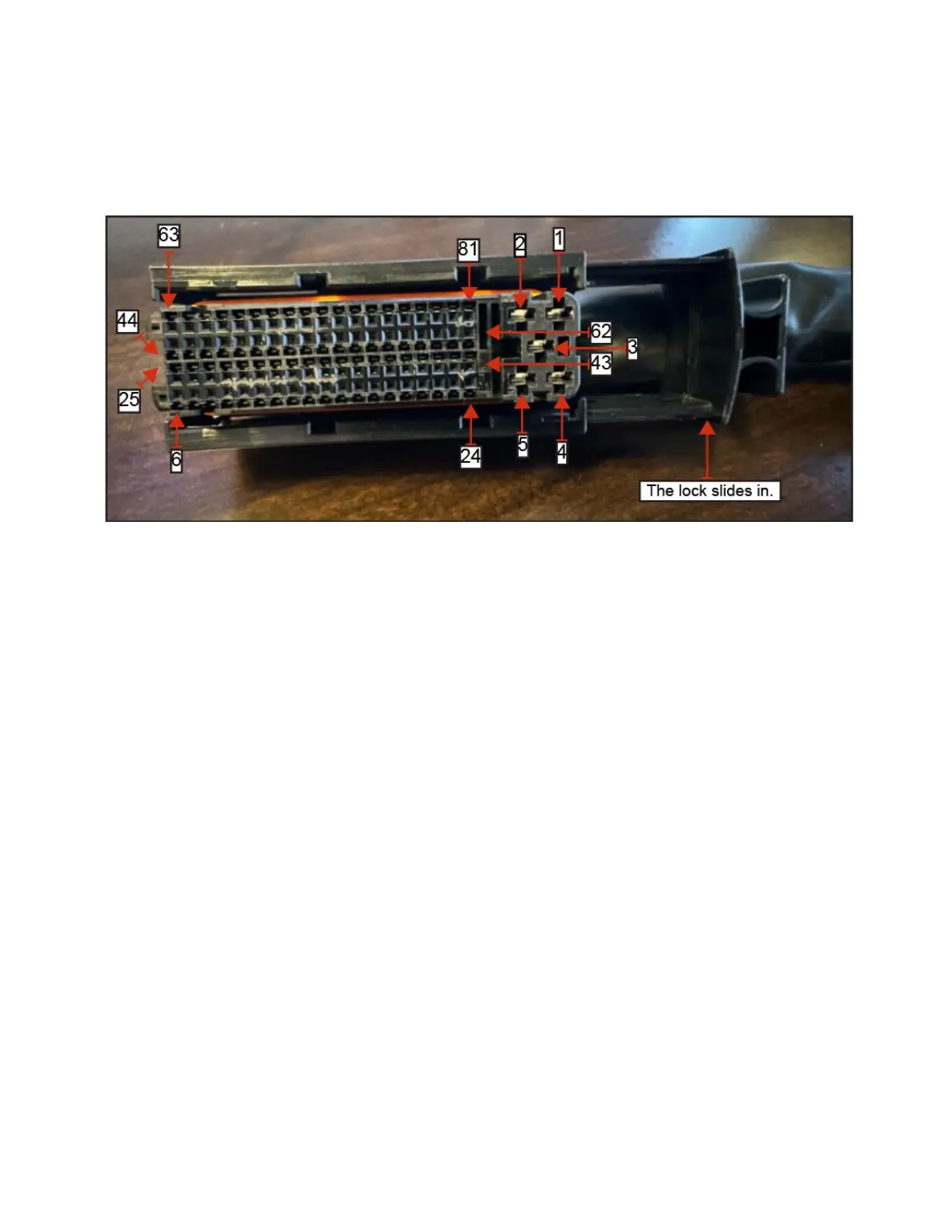

Figure 44. Cortex Cable Connection, Female Pin Positions.
CORTEX CONTROLLER™ 55-POLE CABLE ASSEMBLY
Follow these steps to assembly the Cortex Controller Cable.
A. Cable and Controller Parts Identification
See the figure below to identify the 55-Pole Cable Connector parts.
