TANDEM VANE PUMP WITH MONOBLOCK SEPARATE OUTLET FLOW
Rapid Rail and Python Auto Side Loader

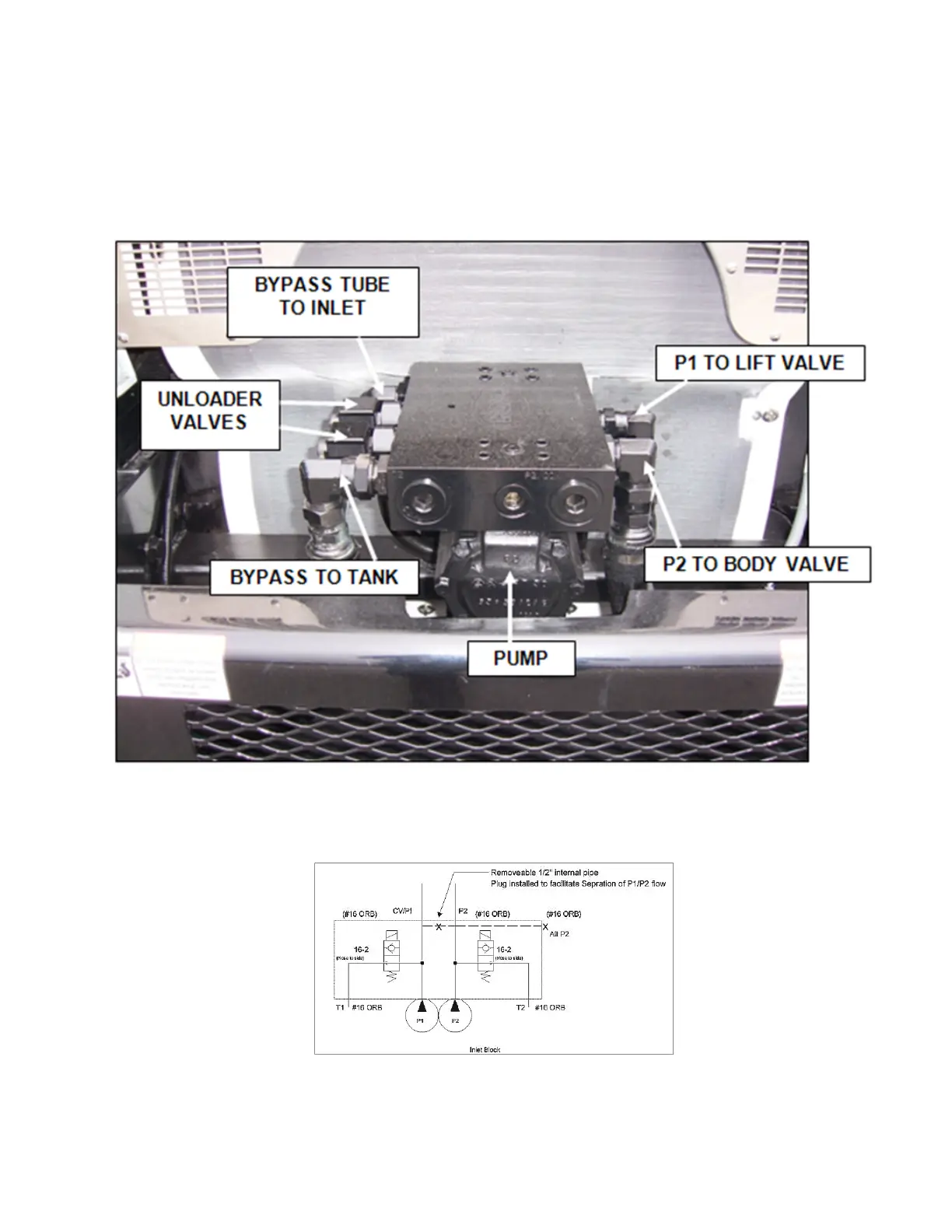

Figure 7. Tandem Vane Pump with Monoblock
In the Monoblock Operate-in-Gear-at-Idle hydraulic system, the pump section (pump 1) closest to the input shaft operates the
lift and shuts OFF first. The pump section (pump 2) farthest from the input operates the packer and stays ON at higher
RPMs.
