LIFT CONTROL VALVE
Some key areas are shown below on the standard lift control valve. The Python Lift uses a precision-machined parallel control
valve that does not have interchangeable spools. Each spool is matched to the individual bore. See Lift Control Valve
Pressure Adjustments .

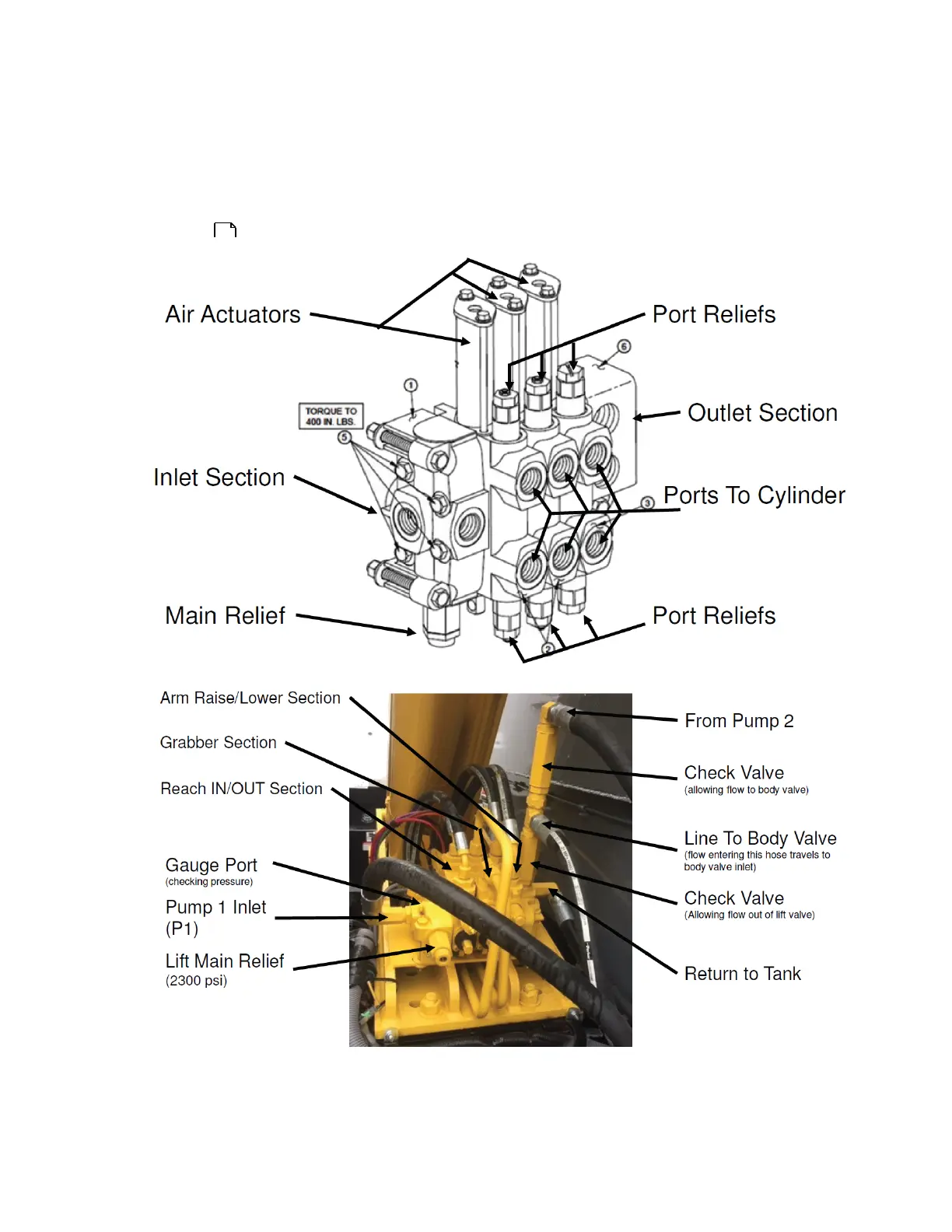

Figure 20. Python Lift Control Valve
