Lift Arm
50
UNIVERSAL BELT AND TRI-CUFF GRABBER ADJUSTMENTS
A. 60-90 Gallon Belt Grabbers
Adjust the grabber belt length so the distance between the roller on the inner arm and the outside roller is 30” (+/- 1”). See
illustration below.
The grabber belt holes on the inside end of the belt are farther apart to make longer adjustments. The holes on the outside
end of the belt are closer together to make shorter adjustments.
When the grabbers are used with the Python Lift, adjust the outer rollers so that they do not touch each other when the
grabbers are completely closed.

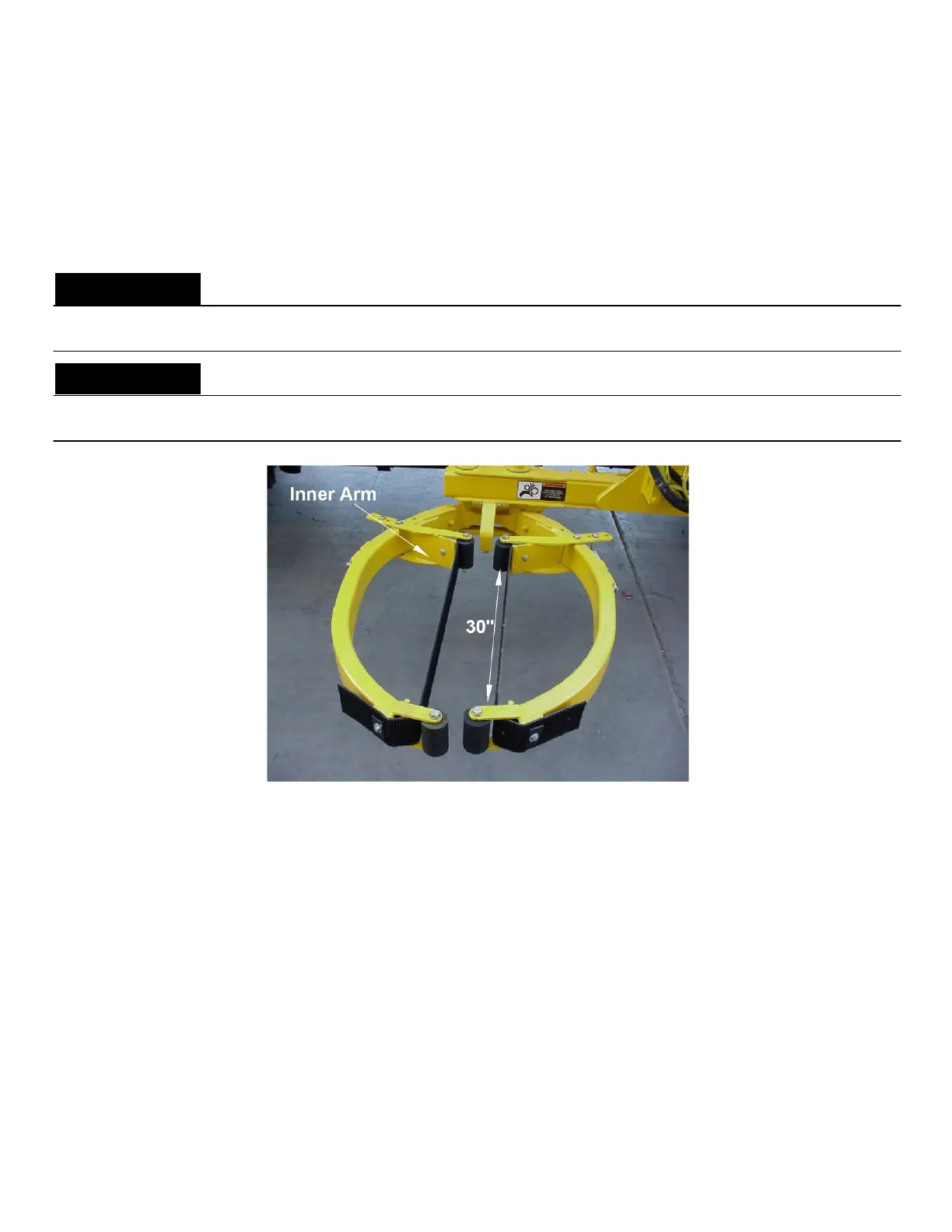

Figure 16. 60-90 Gallon Belt Grabbers
