Lift Arm
51
UNIVERSAL BELT AND TRI-CUFF GRABBER ADJUSTMENTS (CONTINUED)
B. 90-300 Gallon Belt Grabbers
Adjust the grabber belt length so the distance between the inner arm and the outside roller is approximate 30” (+/- 1”) to
obtain a firm grip for smaller containers. The total overall length of the grabber belt must be set to obtain a firm grip for
larger containers. See illustration below.
Do not adjust the total overall belt length too far as this may cause the grabber belt to touch or wear against the outer arm.
When used with the Python lift the grabbers should be adjusted so the outer rollers do not touch each other when the
grabbers are completely closed.

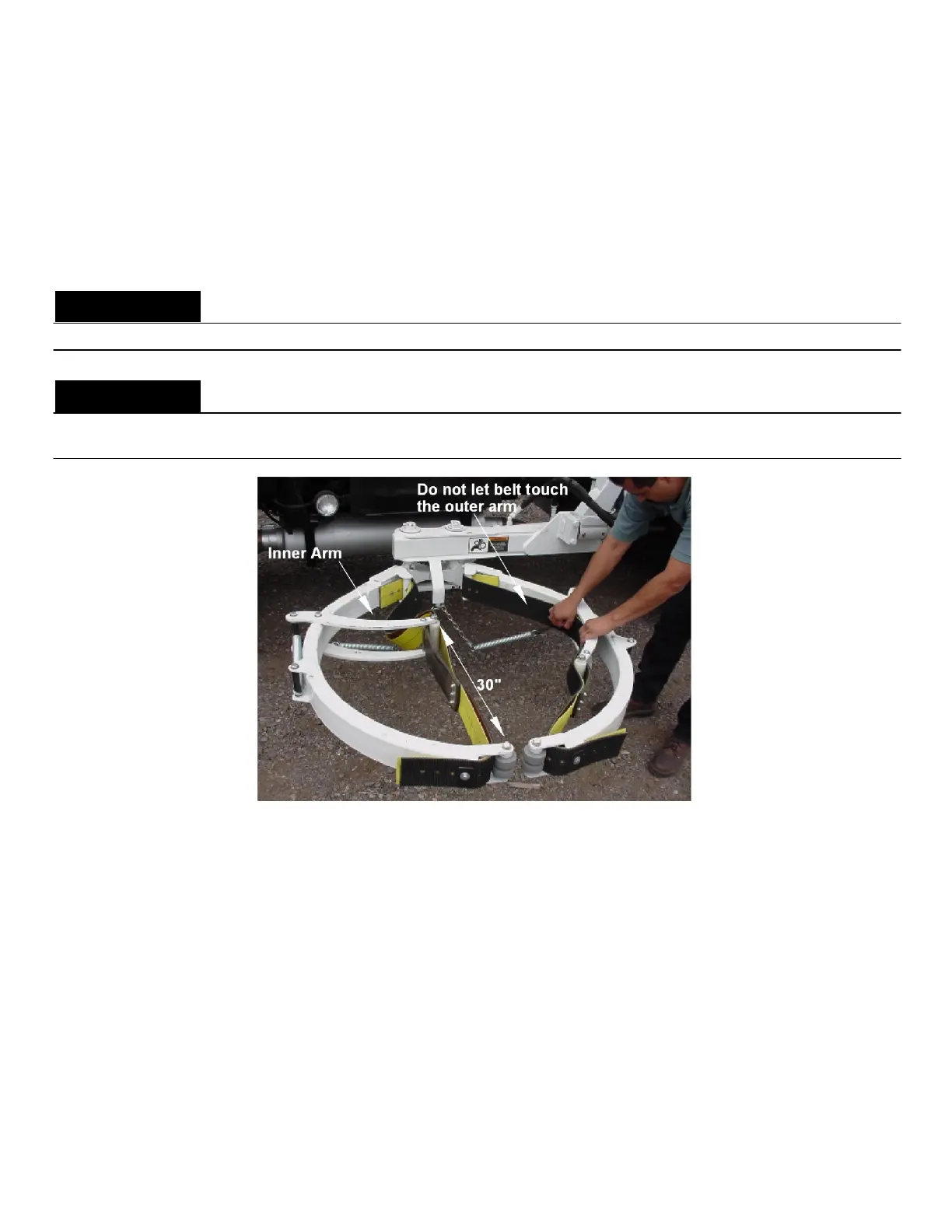

Figure 17. 90-300 Gallon Belt Grabbers
