Lift Arm
52
UNIVERSAL BELT AND TRI-CUFF GRABBER ADJUSTMENTS (CONTINUED)
C. 30-110 Gallon Tri-Cuff Belt Grabbers
Adjust the grabber belt length so the distance between the roller on the inner arm and the outside roller is 30” (+/- 1”). See
illustration below.
The grabber belt holes on the inside end of the belt are farther apart to make longer adjustments. The holes on the outside
end of the belt are closer together to make shorter adjustments.

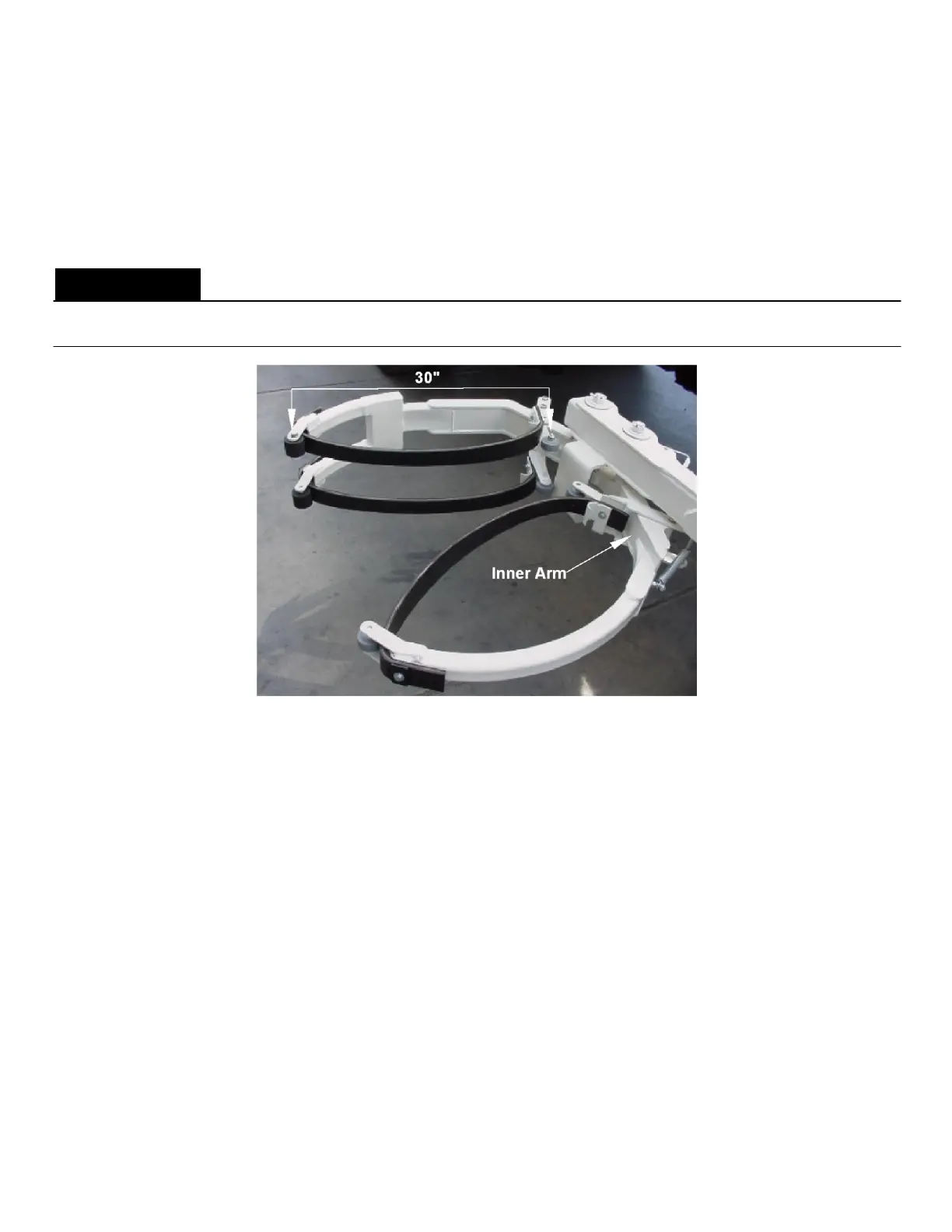

Figure 18. 30-110 Gallon Tri-Cuff Belt Grabbers
