LIFT-STOWED AND GRABBERS OPEN PROXIMITY SWITCHES
Adjust the proximity switches to deactivate if grabber or arms are extended outside the width of the vehicle. You will need a
15/16" wrench. The grabbers open proximity switch should be adjusted so that it is activated when the grabbers are fully
open. To make adjustments to the lift-stowed (lift-in) proximity switch, you will need a 7/16" wrench. The lift-stowed proximity
switch should be adjusted so that it is activated when the lift arm is fully stowed or retracted. See the figure below.
Watch the Preventive Arm Lift Maintenance video on the Heil Service Shack (https://www.heil.com/heil-service-
shack).

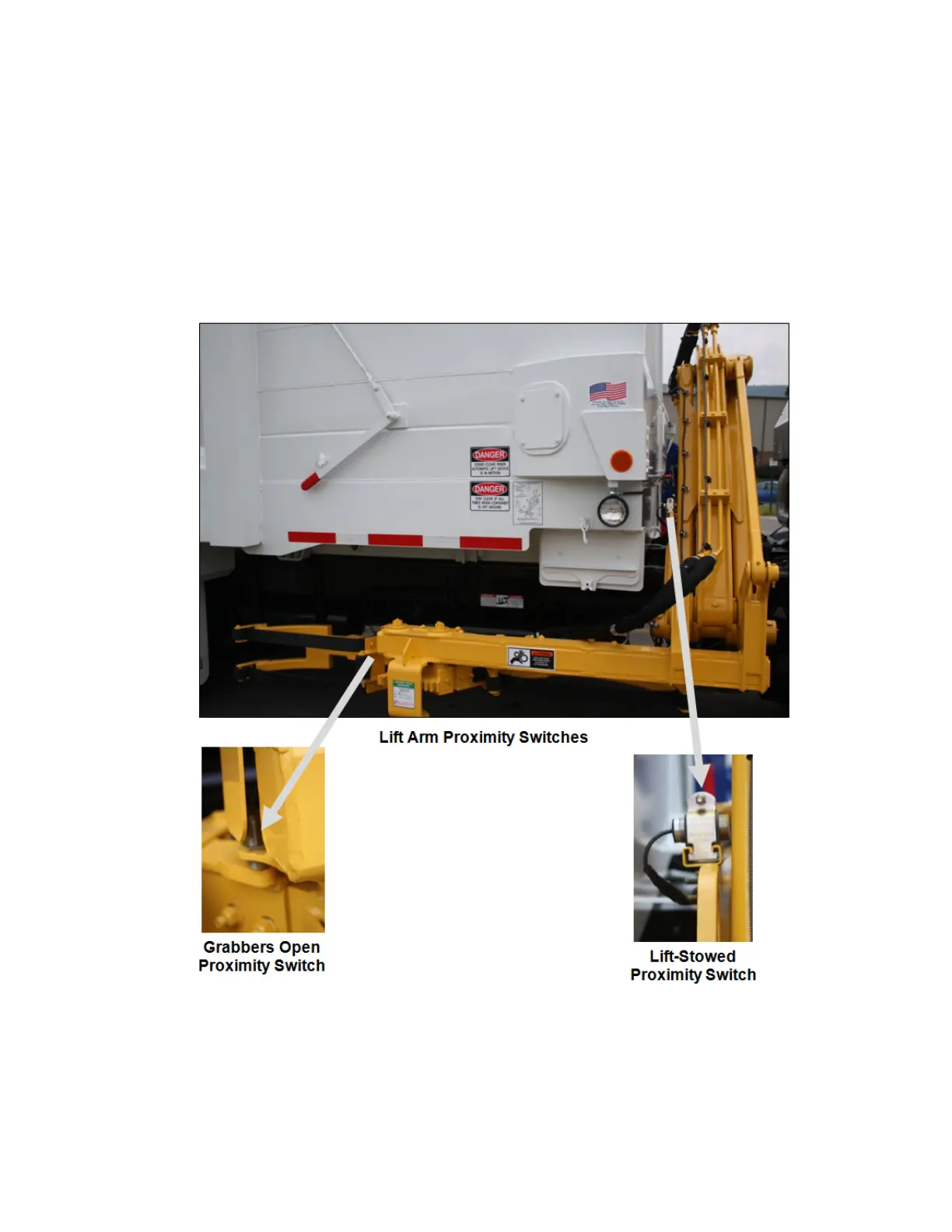

Figure 19. Lift Arm Proximity Switches
