Dräger Fabius plus XL User Manual

Supplement Fabius plus XL SW 3.n 19
Operation
Operation with non-rebreathing system

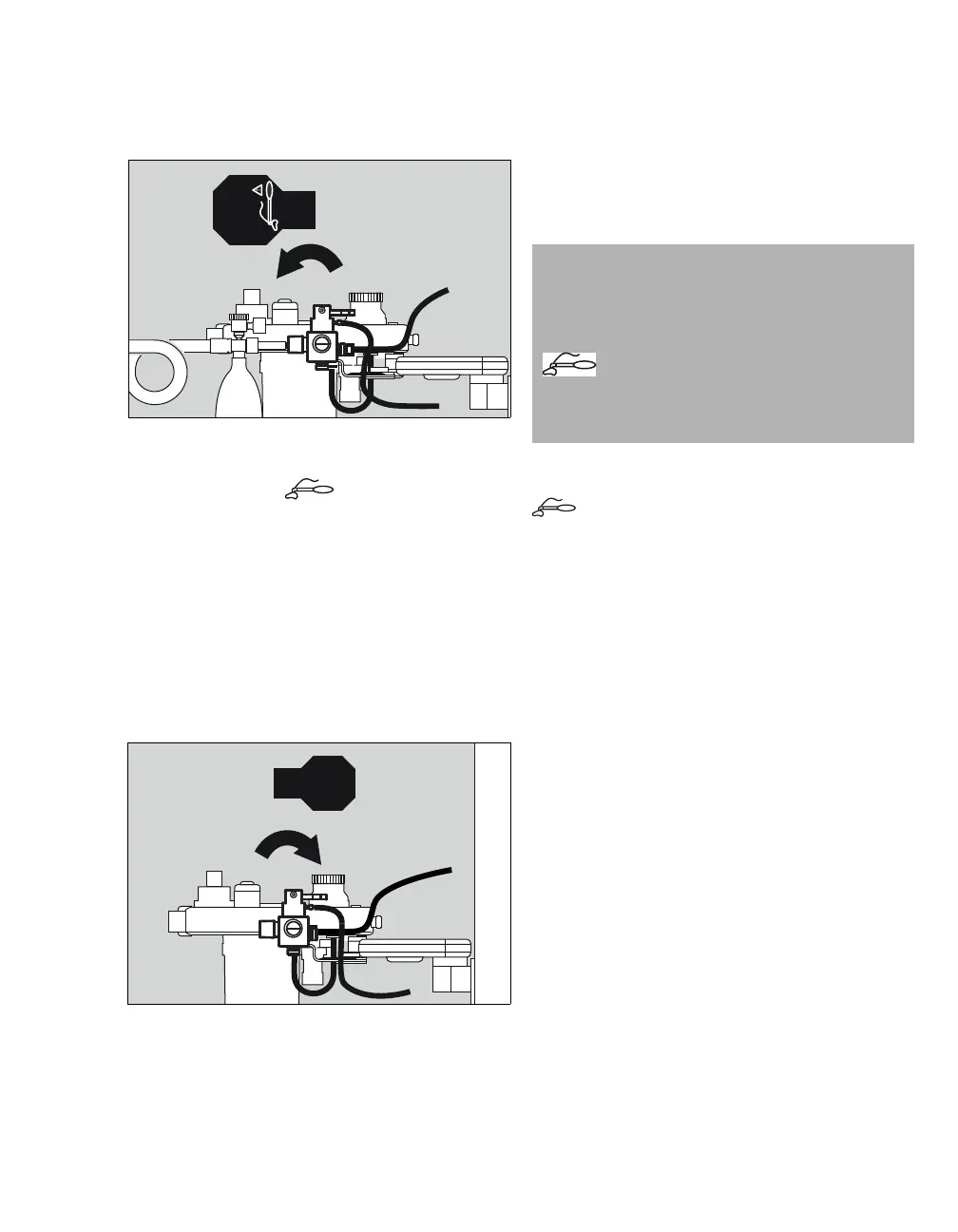

Diverting the fresh-gas flow to the non-rebreathing
system:
1 Set the switch to .
The switch points in the direction of the non-
rebreathing system.
2 Set the fresh-gas flow.
To prevent rebreathing, the fresh-gas supply
must be at least double the minute volume.
3 Operate the non-rebreathing system according
to the corresponding instructions for use.
Operation with the compact breathing
system (COSY)
Before using a controlled ventilation mode
(Volume Control, Pressure Control, Pressure
Support, SIMV/PS) or the ManSpont ventilation
mode:
1 Set the switch to COSY.
The switch points in the direction of the fresh-
gas inlet.
2 Screw the sample line back to the Y-piece on
the breathing circuit.
When the switch of the external fresh-gas outlet is
set to operation with a non-rebreathing system
, the ventilator lock prevents a controlled
ventilation mode (Volume Control, Pressure
Control, Pressure Support, SIMV/PS) from being
started.
The following alarms are issued:
From software version 3.37:
– VENTILATOR FAIL !!!
– CHECK APL / EXT. FGO !!!
With older software versions:
– VENTILATOR FAIL !!!
– CHECK APL VALVE !!!
Ending operation
1 Close all flow control valves on the device.
4171841673
Pmax= 125 hPa
COSY
CAUTION
Risk of undetected fresh-gas deficiency
When the switch of the external fresh-gas outlet
is set to operation with a non-rebreathing system
[ ], no alarm occurs at the start of the
ManSpont ventilation mode.
Check that the switch of the external fresh-gas
outlet has been set to COSY.
