Operation
18 Supplement Fabius plus XL SW 3.n
Using the external fresh-gas outlet with switch and ventilator lock
(option)
The following chapters have been changed:
Preparation

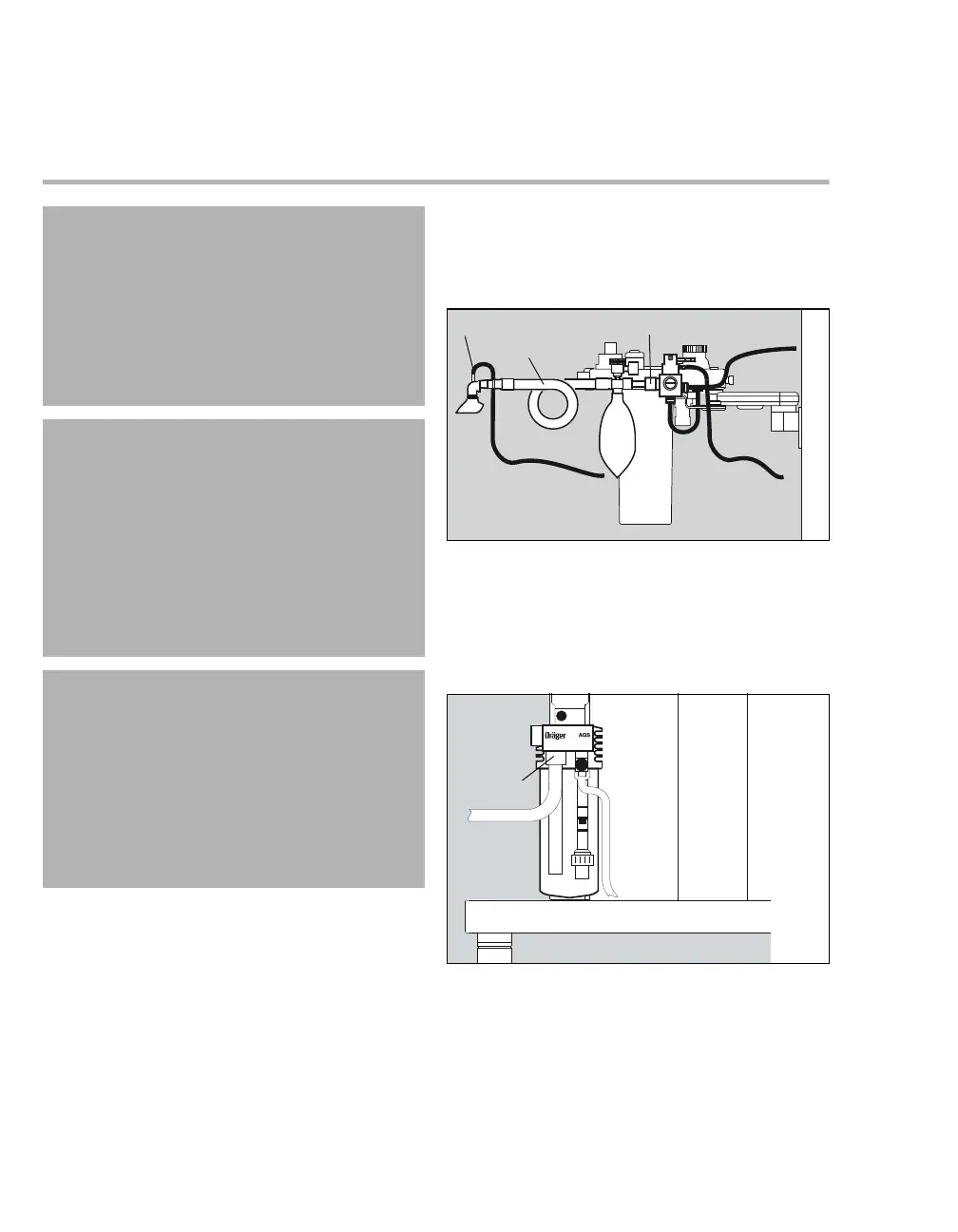

Example: Bain non-rebreathing system
1 Connect the non-rebreathing system (B) to the
external fresh-gas outlet (A).
2 Screw on the sample line (C) to the Luer Lock
connector of the ventilation mask or of the
breathing system filter and to the water trap on
the gas monitor.
3 If necessary, connect the non-rebreathing
system scavenging hose to the second
connection (D) of the anesthetic gas receiving
system.
Observe the instructions for use of the non-
rebreathing system and the anesthetic gas
receiving system.
WARNING
Insufficient gas supply to the patient
Non-rebreathing systems are only intended
for manual ventilation or spontaneous
breathing and must only be connected to the
external fresh-gas outlet.
When using a non-rebreathing system,
ensure an adequate gas monitoring.
WARNING
Risk of misinterpretation of measured values
The values for O
2, pressure, and volume
displayed on Fabius do not correspond to the
values for the patient connected to external
fresh-gas outlet as they are based on
measurements taken at the compact
breathing system.
When using the external fresh-gas outlet,
change into the Standby mode.
WARNING
Risk of faulty gas delivery
O
2 and CO2 and any anesthetic gases must
also be monitored for non-rebreathing
systems.
The sample line must be connected with the
connector of the non-rebreathing system and
the connector of the gas analyzer (e.g., Scio,
Vamos).
4171621020
A
C
B
D
