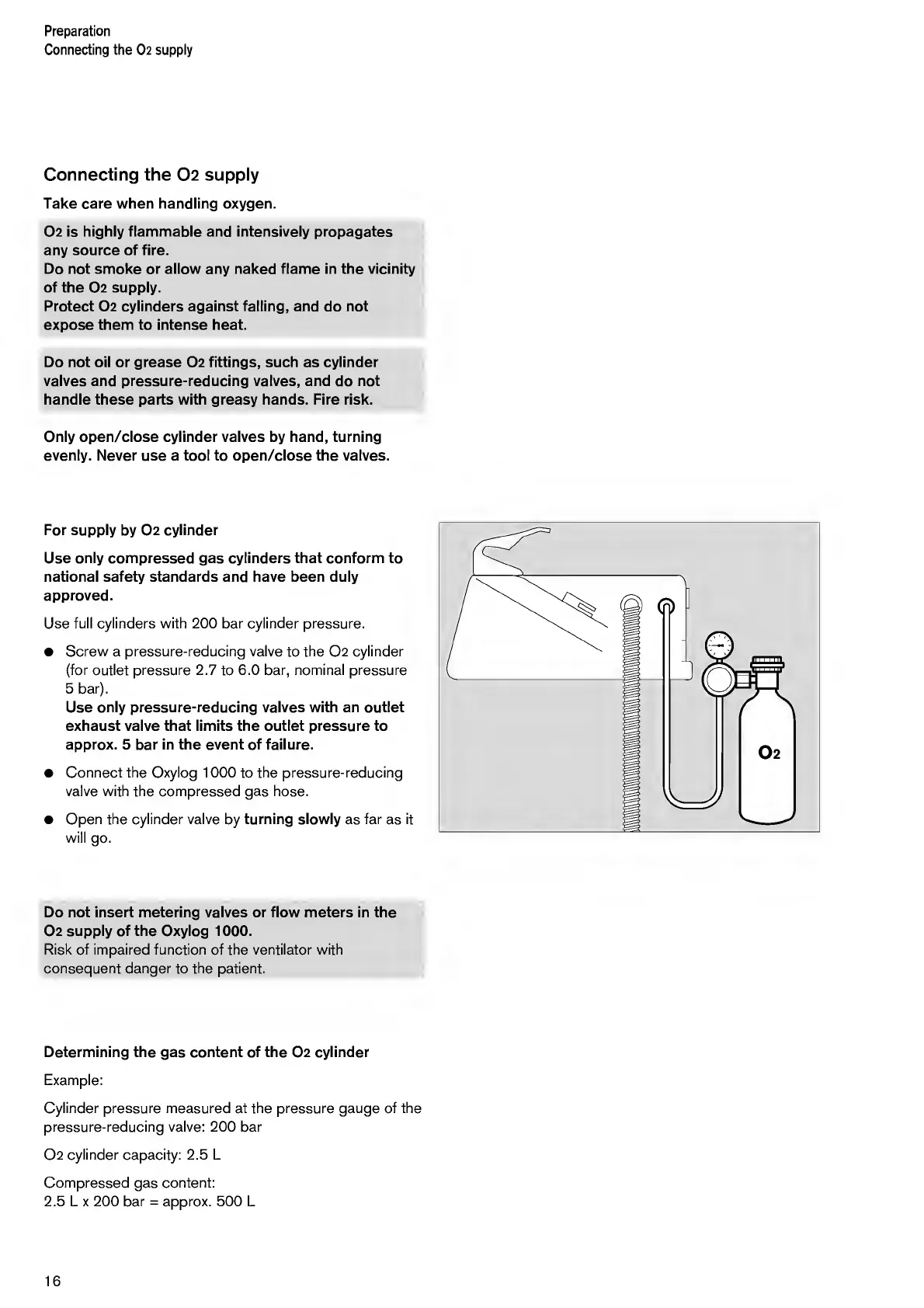

Preparation
Connecting
the
02
supply
Connecting
the
02
supply
Take
care
when
handling
oxygen.
O
2
is
highly
flammable
and
intensively
propagates
any
source
of
fire.
Do
not
smoke
or
allow
any
naked
flame
in
the
vicinity
of
the
O
2
supply.
Protect
O
2
cylinders
against
falling,
and
do
not
expose
them
to
intense
heat.
Do
not
oil
or
grease
O
2
fittings,
such
as
cylinder
valves
and
pressure-reducing
valves,
and
do
not
handle
these
parts
with
greasy
hands.
Fire
risk.
Only
open/close
cylinder
valves
by
hand,
turning
evenly.
Never
use
a
tool
to
open/close
the
valves.
For
supply
by
O
2
cylinder
Use
only
compressed
gas
cylinders
that
conform
to
national
safety
standards
and
have
been
duly
approved.
Use
full
cylinders
with
200
bar
cylinder
pressure.
•
Screw
a
pressure-reducing
valve
to
the
02
cylinder
(for
outlet
pressure
2.7
to
6.0
bar,
nominal
pressure
5
bar).
Use
only
pressure-reducing
valves
with
an
outlet
exhaust
valve
that
limits
the
outlet
pressure
to
approx.
5
bar
in
the
event
of
failure.
•
Connect
the
Oxylog
1000
to
the
pressure-reducing
valve
with
the
compressed
gas
hose.
•
Open
the
cylinder
valve
by
turning
slowly
as
far
as
it
will
go.
Do
not
insert
metering
valves
or
flow
meters
in
the
O
2
supply
of
the
Oxylog
1000.
Risk
of
impaired
function
of
the
ventilator
with
consequent
danger
to
the
patient.
Determining
the
gas
content
of
the
O
2
cylinder
Example:
Cylinder
pressure
measured
at
the
pressure
gauge
of
the
pressure-reducing
valve:
200
bar
O
2
cylinder
capacity:
2.5
L
Compressed
gas
content:
2.5
L
x
200
bar
=
approx.
500
L
16
