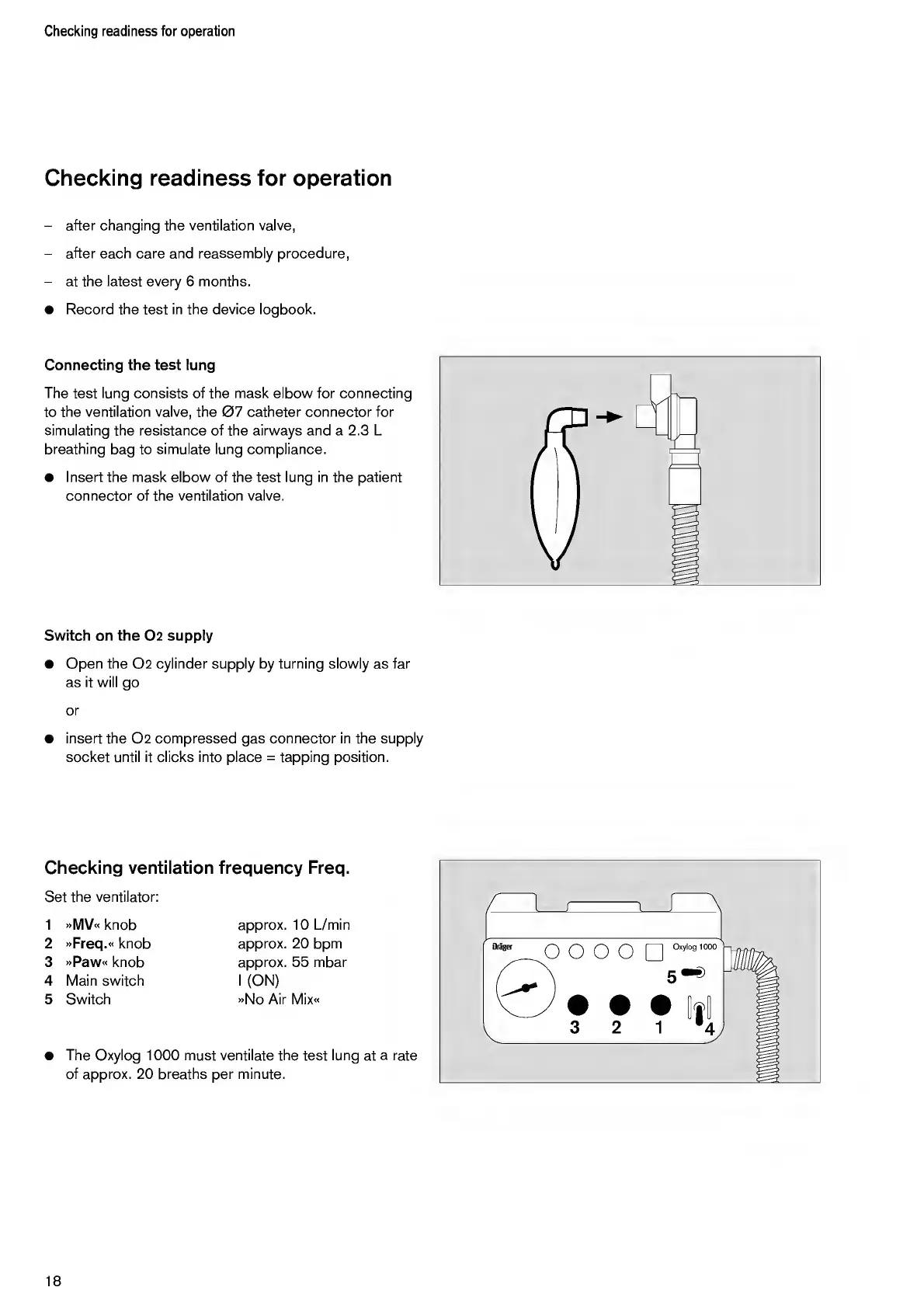

Checking readiness for operation
Checking readiness for operation
- after changing the ventilation valve,
- after each care and reassembly procedure,
- at the latest every 6 months.
• Record the test in the device logbook.
Connecting the test lung
The test lung consists of the mask elbow for connecting
to the ventilation valve, the 07 catheter connector for
simulating the resistance of the airways and a 2.3 L
breathing bag to simulate lung compliance.
• Insert the mask elbow of the test lung in the patient
connector of the ventilation valve.
Switch on the 02 supply
• Open the 02 cylinder supply by turning slowly as far
as it will go
or
• insert the 02 compressed gas connector in the supply
socket until it clicks into place = tapping position.
Checking ventilation frequency Freq.
Set the ventilator:
1 »MV« knob approx. 10 L/min
2 »Freq.« knob approx. 20 bpm
3 »Paw« knob approx. 55 mbar
4 Main switch 1 (ON)
5 Switch »No Air Mix«
• The Oxylog 1000 must ventilate the test lung at a rate
of approx. 20 breaths per minute.
