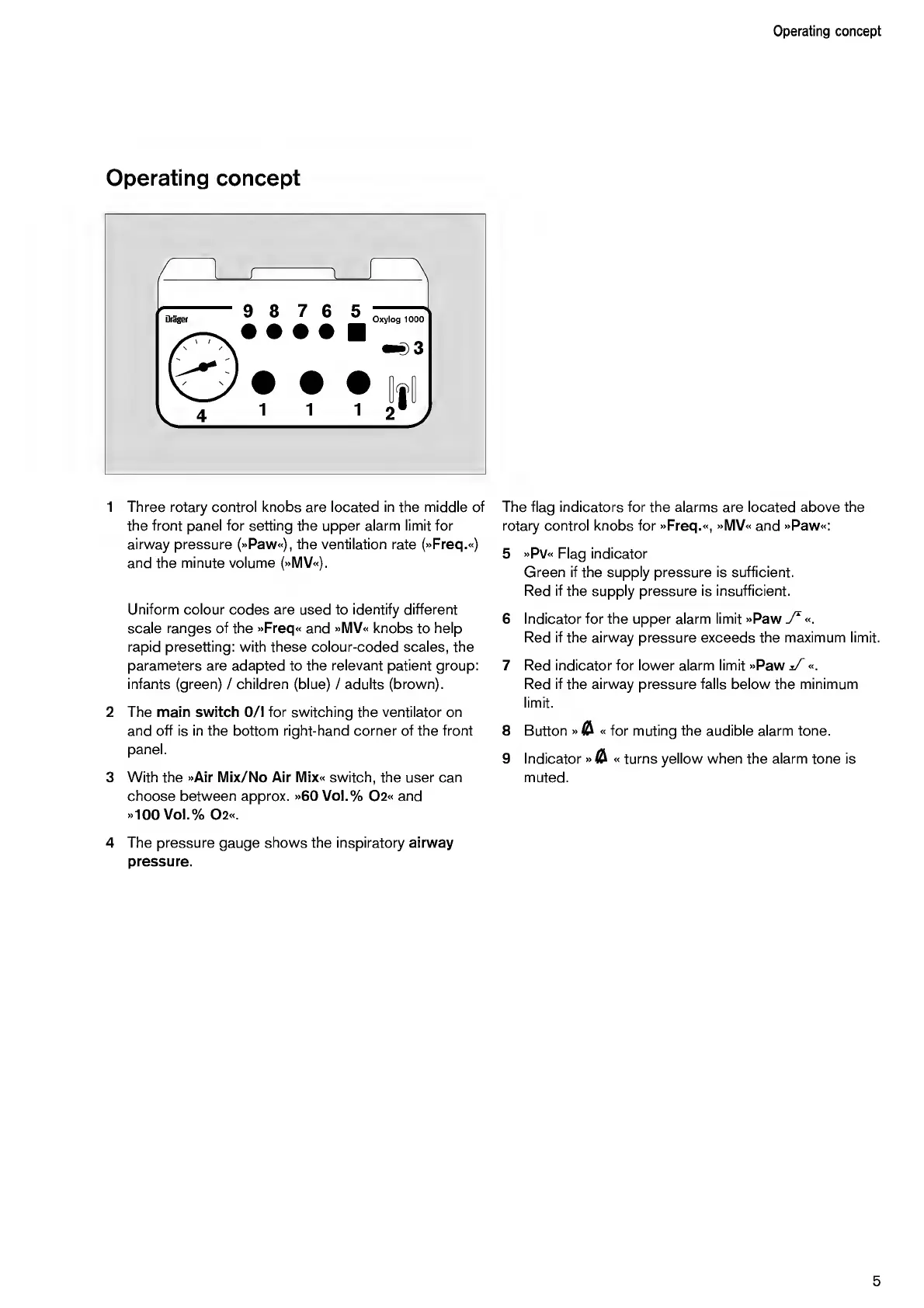

Operating concept
Operating concept
1 Three rotary control knobs are located in the middle of
the front panel for setting the upper alarm limit for
airway pressure (»Paw«), the ventilation rate (»Freq.«)
and the minute volume (»MV«).
Uniform colour codes are used to identify different
scale ranges of the »Freq« and »MV« knobs to help
rapid presetting: with these colour-coded scales, the
parameters are adapted to the relevant patient group:
infants (green) / children (blue) / adults (brown).
2 The main switch 0/1 for switching the ventilator on
and off is in the bottom right-hand corner of the front
panel.
3 With the »Air Mix/No Air Mix« switch, the user can
choose between approx. »60 Vol.% 02« and
»100Vol.% 02 «.
4 The pressure gauge shows the inspiratory airway
pressure.
The flag indicators for the alarms are located above the
rotary control knobs for »Freq.«, »MV« and »Paw«:
5 »Pv« Flag indicator
Green if the supply pressure is sufficient.
Red if the supply pressure is insufficient.
6 Indicator for the upper alarm limit »Paw J T «.
Red if the airway pressure exceeds the maximum limit.
7 Red indicator for lower alarm limit »Paw J~ « .
Red if the airway pressure falls below the minimum
limit.
8 Button » fa « for muting the audible alarm tone.
9 Indicator » fo « turns yellow when the alarm tone is
muted.
