Dräger Oxylog 1000 User Manual

What's what

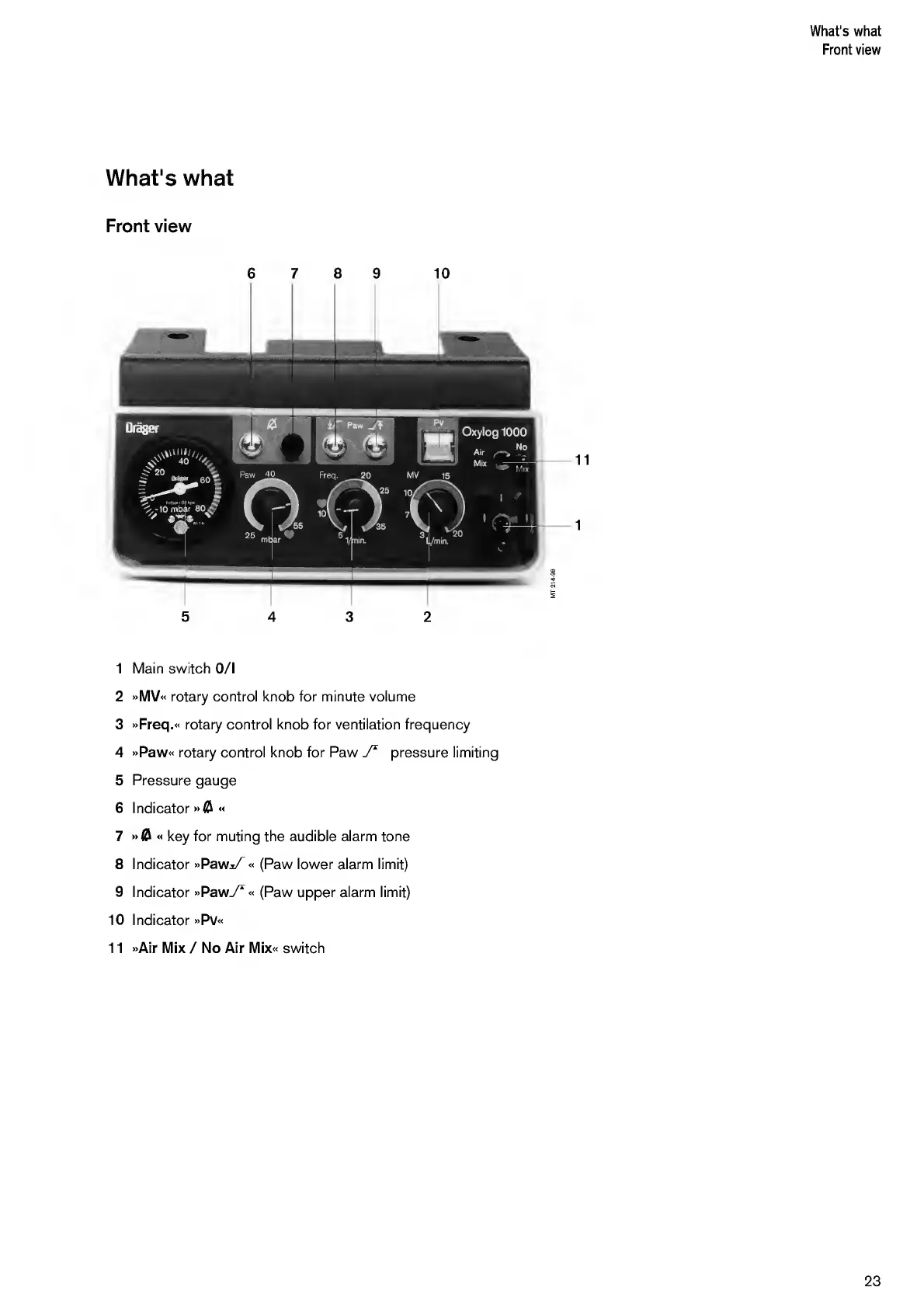

Front view
What's what
Front view
6 7 8 9 10
5 4 3 2
1 Main switch 0/1
2 »MV« rotary control knob for minute volume
3 »Freq.« rotary control knob for ventilation frequency
4 »Paw« rotary control knob for Paw J* pressure limiting
5 Pressure gauge
6 Indicator »<& «
7 »<5 « key for muting the audible alarm tone
8 Indicator »PawT f « (Paw lower alarm limit)
9 Indicator oPawT 1 2 3 4 5 6 7 8 9 10 11 " (Paw upper alarm limit)
10 Indicator »Pv«
11 »Air Mix / No Air Mix« switch
