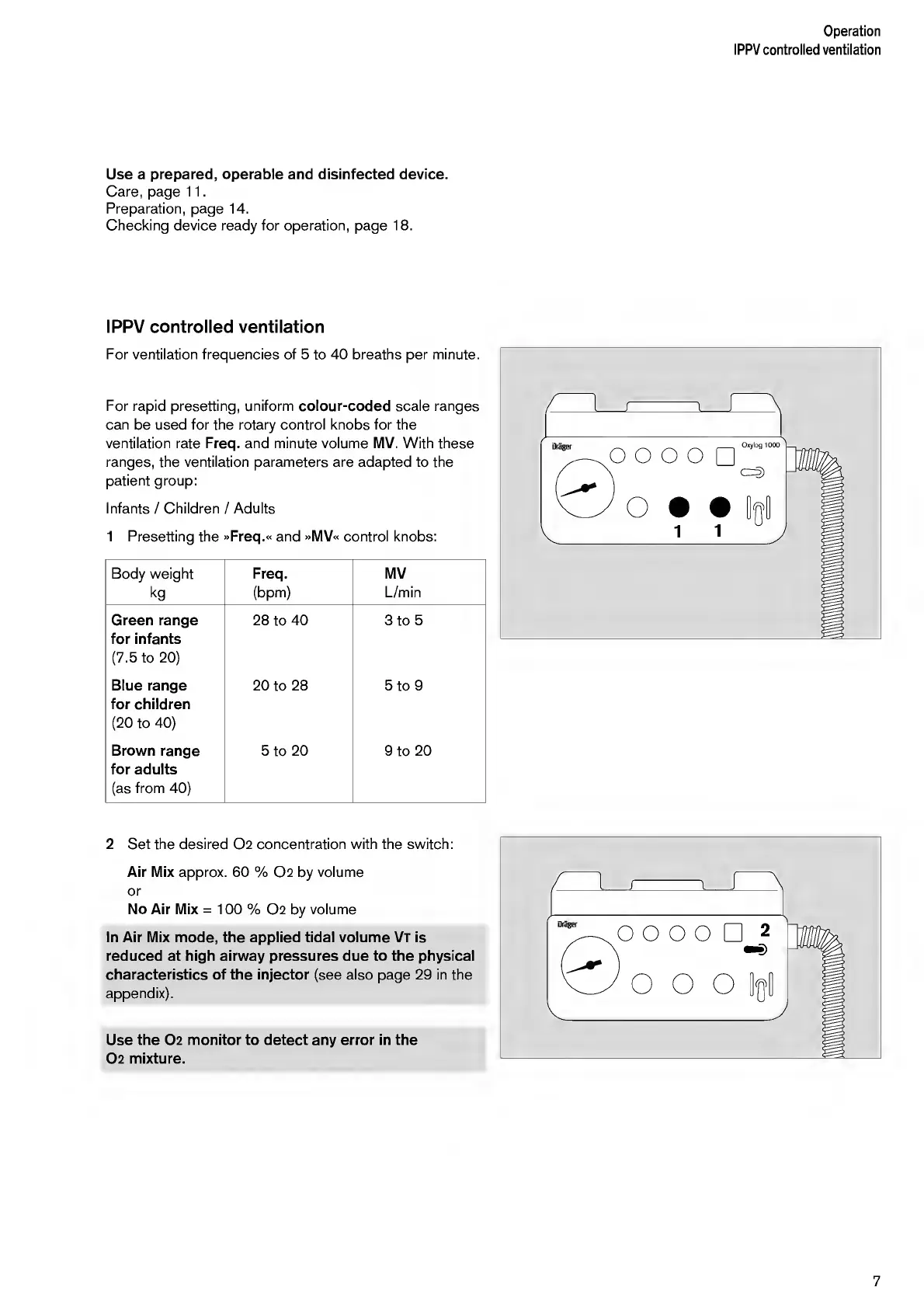

Operation
IPPV controlled ventilation
Use a prepared, operable and disinfected device.
Care, page 11.
Preparation, page 14.
Checking device ready for operation, page 18.
IPPV controlled ventilation
For ventilation frequencies of 5 to 40 breaths per minute.
For rapid presetting, uniform colour-coded scale ranges
can be used for the rotary control knobs for the
ventilation rate Freq. and minute volume MV. With these
ranges, the ventilation parameters are adapted to the
patient group:
Infants / Children / Adults
1 Presetting the »Freq.« and »MV« control knobs:
Body weight
Freq. MV
kg
(bpm) L/min
Green range
for infants
(7.5 to 20)
28 to 40 3 to 5
Blue range
for children
(20 to 40)
20 to 28 5 to 9
Brown range
for adults
(as from 40)
5 to 20 9 to 20
2 Set the desired 02 concentration with the switch:
Air Mix approx. 60 % 02 by volume
or
No Air Mix = 100 % 02 by volume
In Air Mix mode, the applied tidal volume Vt is
reduced at high airway pressures due to the physical
characteristics of the injector (see also page 29 in the
appendix).
Use the O 2 monitor to detect any error in the
O 2 mixture.
