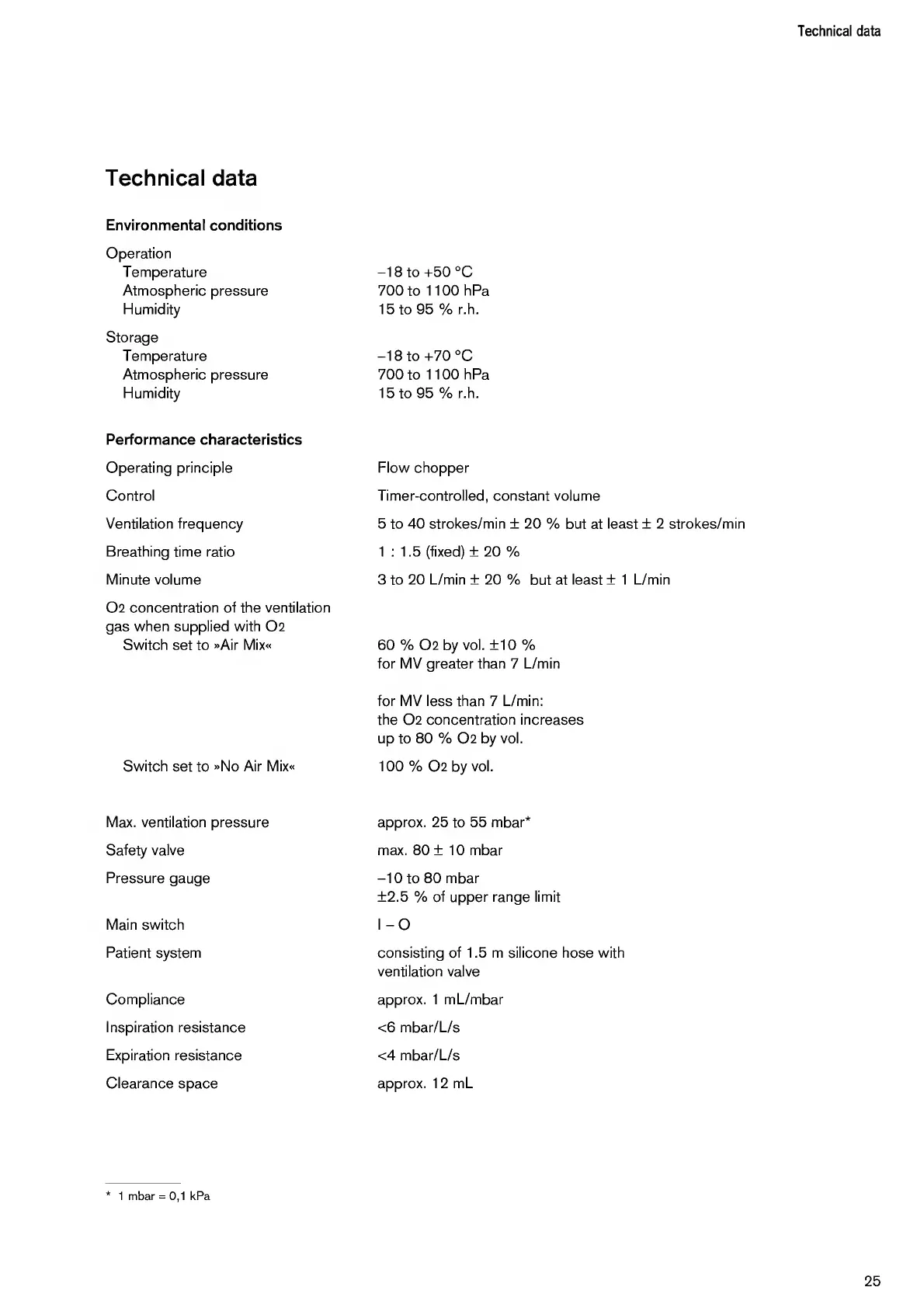

Technical data
Technical data
Environmental conditions
Operation
Temperature
Atmospheric pressure
Humidity
Storage
Temperature
Atmospheric pressure
Humidity
-18 to +50 °C
700 to 1100 hPa
15 to 95 % r.h.
-18 to +70 °C
700 to 1100 hPa
15 to 95 % r.h.
Performance characteristics
Operating principle
Control
Ventilation frequency
Breathing time ratio
Minute volume
02 concentration of the ventilation
gas when supplied with 02
Switch set to »Air Mix«
Switch set to »No Air Mix«
Flow chopper
Timer-controlled, constant volume
5 to 40 strokes/min ± 20 % but at least ± 2 strokes/min
1:1.5 (fixed) ± 20 %
3 to 20 L/min ± 20 % but at least ± 1 L/min
60 % 02 by vol. ±10 %
for MV greater than 7 L/min
for MV less than 7 L/min:
the 02 concentration increases
up to 80 % 02 by vol.
100 % 02 by vol.
Max. ventilation pressure
Safety valve
Pressure gauge
Main switch
Patient system
Compliance
Inspiration resistance
Expiration resistance
Clearance space
approx. 25 to 55 mbar*
max. 80 ± 10 mbar
-10 to 80 mbar
±2.5 % of upper range limit
1-0
consisting of 1.5 m silicone hose with
ventilation valve
approx. 1 mL/mbar
<6 mbar/L/s
<4 mbar/L/s
approx. 12 mL
* 1 mbar = 0,1 kPa
