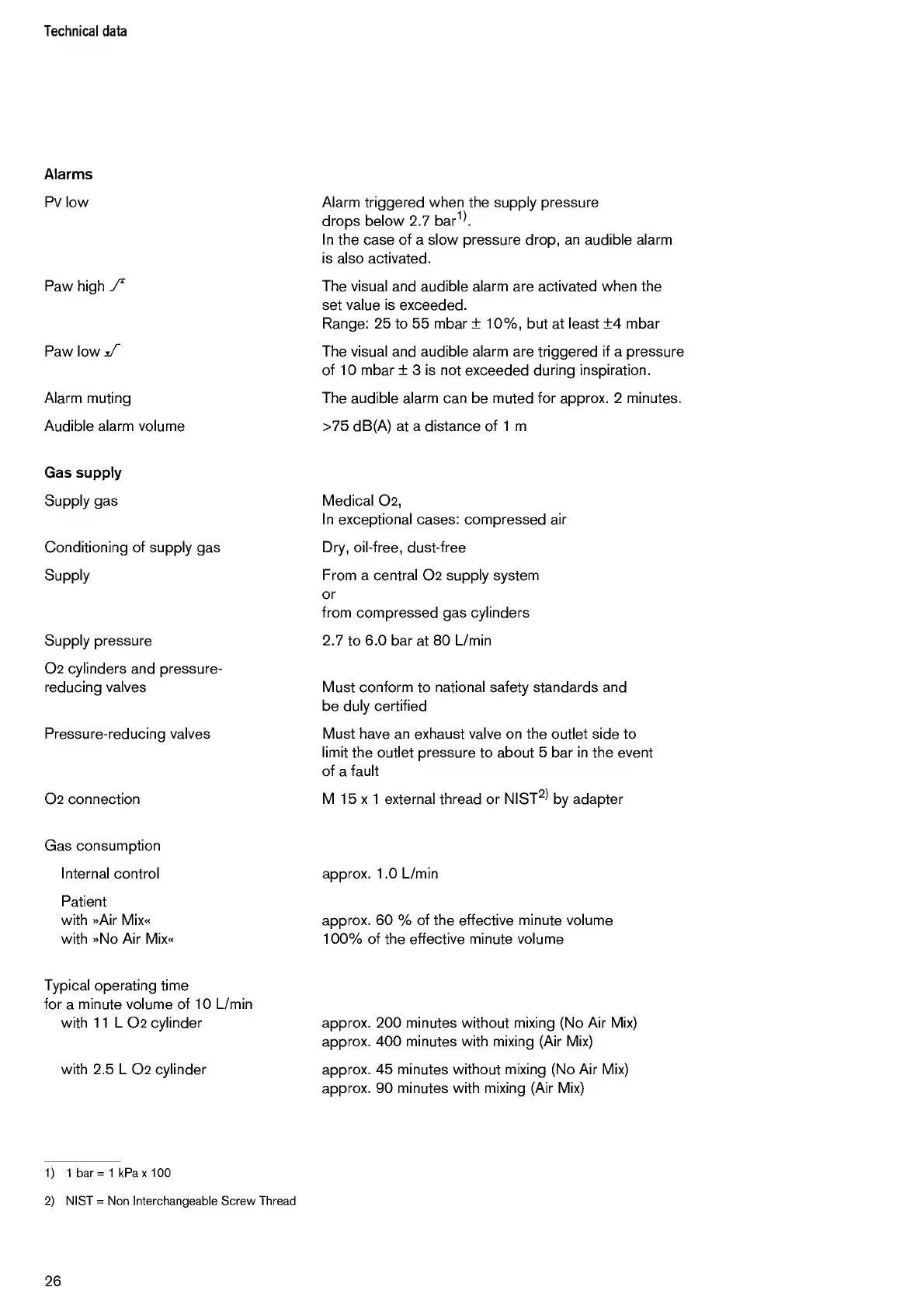

Technical data
Alarms
Pv low Alarm triggered when the supply pressure
drops below 2.7 bar 1 ) .
In the case of a slow pressure drop, an audible alarm
is also activated.
Paw high J* The visual and audible alarm are activated when the
set value is exceeded.
Range: 25 to 55 mbar ± 10%, but at least ±4 mbar
Paw low if The visual and audible alarm are triggered if a pressure
of 10 mbar ± 3 is not exceeded during inspiration.
Alarm muting The audible alarm can be muted for approx. 2 minutes.
Audible alarm volume >75 dB(A) at a distance of 1 m
Gas supply
Supply gas Medical 02,
In exceptional cases: compressed air
Conditioning of supply gas Dry, oil-free, dust-free
Supply From a central 02 supply system
or
from compressed gas cylinders
Supply pressure 2.7 to 6.0 bar at 80 L/min
02 cylinders and pressure-
reducing valves Must conform to national safety standards and
be duly certified
Pressure-reducing valves Must have an exhaust valve on the outlet side to
limit the outlet pressure to about 5 bar in the event
of a fault
02 connection M 15 x 1 external thread or NIST 2 ) by adapter
Gas consumption
Internal control approx. 1.0 L/min
Patient
with »Air Mix« approx. 60 % of the effective minute volume
with »No Air Mix« 100% of the effective minute volume
Typical operating time
for a minute volume of 10 L/min
with 11 L 02 cylinder approx. 200 minutes without mixing (No Air Mix)
approx. 400 minutes with mixing (Air Mix)
with 2.5 L 02 cylinder approx. 45 minutes without mixing (No Air Mix)
approx. 90 minutes with mixing (Air Mix)
1) 1 bar = 1 kPa x 100
2) NIST = Non Interchangeable Screw Thread
26
